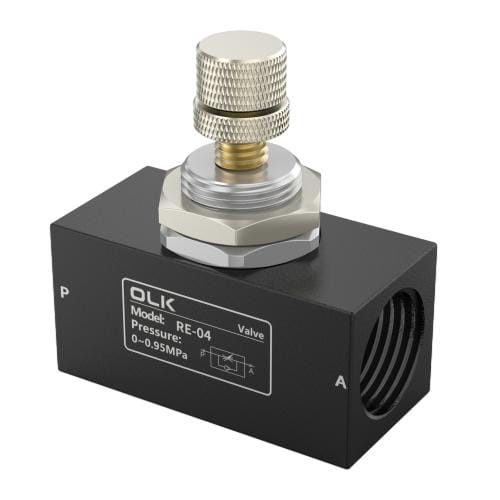

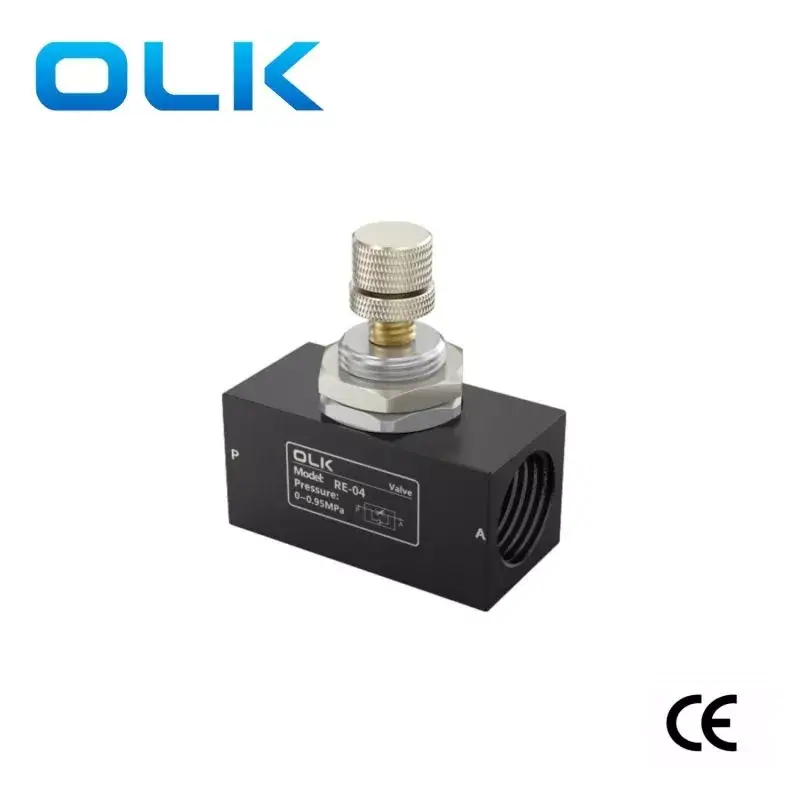

RE Series One-Way Throttle Valve

Model:RE-01

As the professional manufacture, OLK would like to provide you RE series one-way throttle valves. And OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

The OLK pneumatic RE series one-way throttle valve is used to regulate flow or pressure, providing reliable flow control with good stability and accuracy, and can meet the needs of various industrial applications.

The OLK pneumatic technology team reminds users to ensure that the RE one-way throttle valve is correctly installed in the pipeline and that the fluid flow direction is consistent with the arrow direction on the valve when installing, to ensure the normal operation of the valve. Adjust the one-way throttle valve according to actual needs to achieve the desired flow control effect.

Symbol:

RE Series One-Way Throttle Valve

Odering code
RE	01
MODEL	port size:
RE:series one-way throttle valve	01:G1/8
	02:G3/8
	03:G3/8
	04:G1/2

RE series one way throttle valve General parameters

ITEM	RE-01	RE-02	RE-03	RE-04
Working medium	AIR
Positions	G1/8	G1/4	G3/8	G1/2
Proof pressure	0-0.95 Mpa (0-135 Psi)
working temperature	‘- 50--60℃ （28--140 ℉）
