Festo Type LFR Pressure Regulating Filter

As a professional FESTO type LFR pressure regulating filter manufacture, you can rest assured to buy FESTO type LFR pressure regulating filter from our factory and OLK pneumatic will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

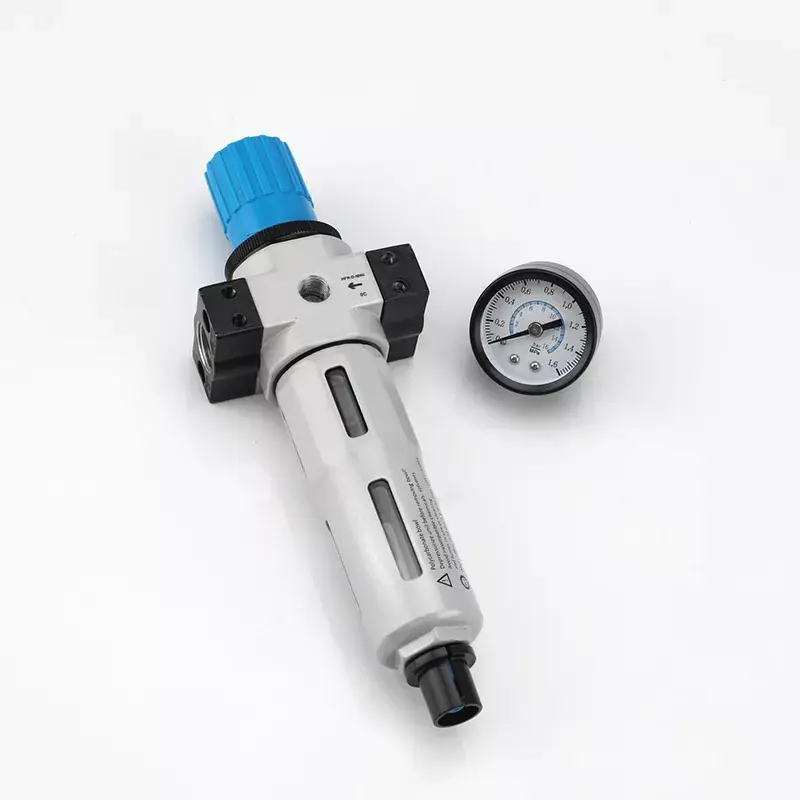

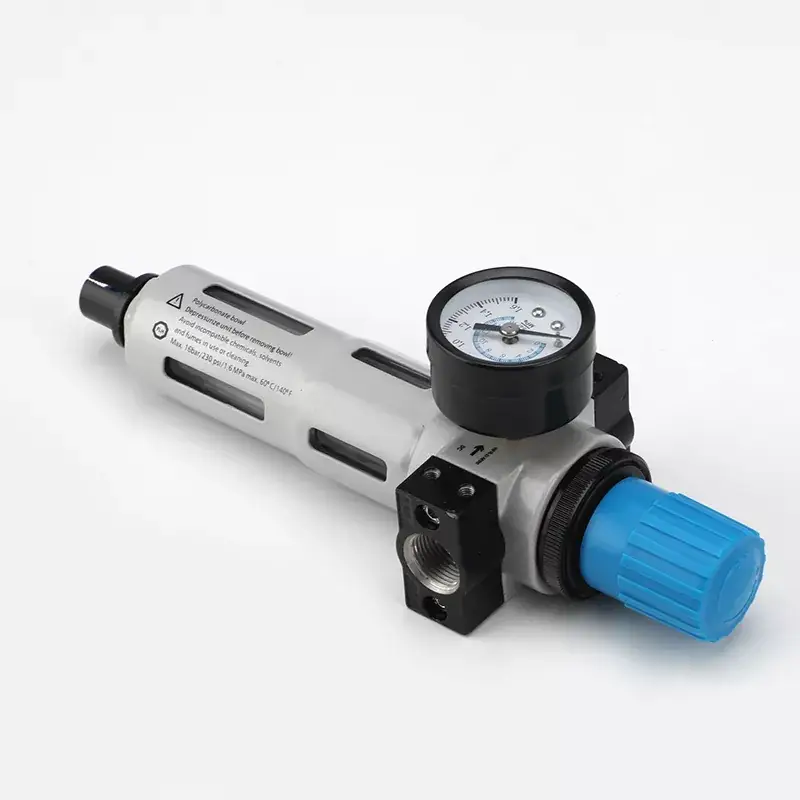

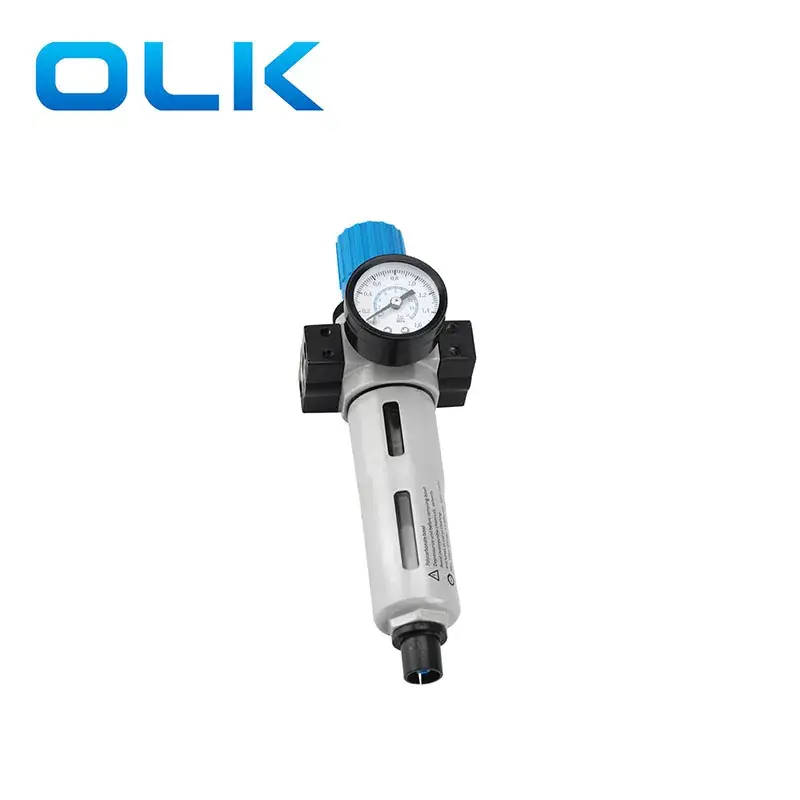

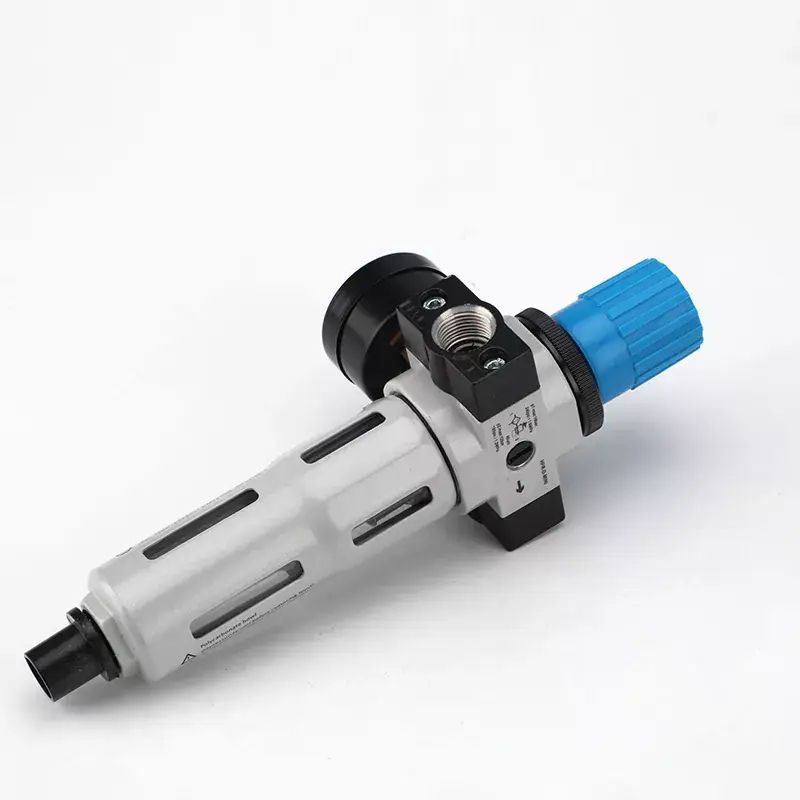

The OLK pneumatic manufactured FESTO type LFR pressure regulating filter. The filter and pressure regulator are combined into a single unit, capable of filtering liquid oil, condensate, and impurities in the air. For special applications, the 5μm filter element is easy to replace with a standard 40μm filter element. Even with fluctuations in input pressure and compressed air consumption in the system, the pressure regulator can ensure that the set working pressure remains highly stable.

FESTO type LFR pressure regulating filter TECHNICAL PARAMETER

SPECIFICATION	MINI			MIDI			MAXI
Working medium	AIR
Structural features	Sintered with water separator filter: MINI/MIDI:Diaphragm valve MAXI:Piston reducing valve
Installation method	Tubular or bracket installation
Installation position	vertical direction ± 5°
Connection size	G1/8	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Standard niminal flow rate LFR..(-A)	750	1400	1600	3100	3400	3400	9000	1000
Standard niminal flow rate LFR..7...(-A)	900	1500	1700	3400	3900	4000	9500	1600
Standard niminal flow rate LFR..5M..(-A)	650	1200	1350	2400	2500	2600	7300	7600
Input pressure	Manual drain valve:1-16 bar
Input pressure	Automatic drain valve:1.5-12 bar
Working pressure	0.5-12 bar /0.5-7 bar
Filter precision	40μm/5μm
Max limeset capacity	22ml			43ml			80ml
Medium Temperature	0-60℃
Material:	Shell: Die cast zinc; Filter cup: polycarbonate; Metal protective cover: aluminum alloy; Sealing: nitrile rubber; Pressure regulating handwheel: POM
