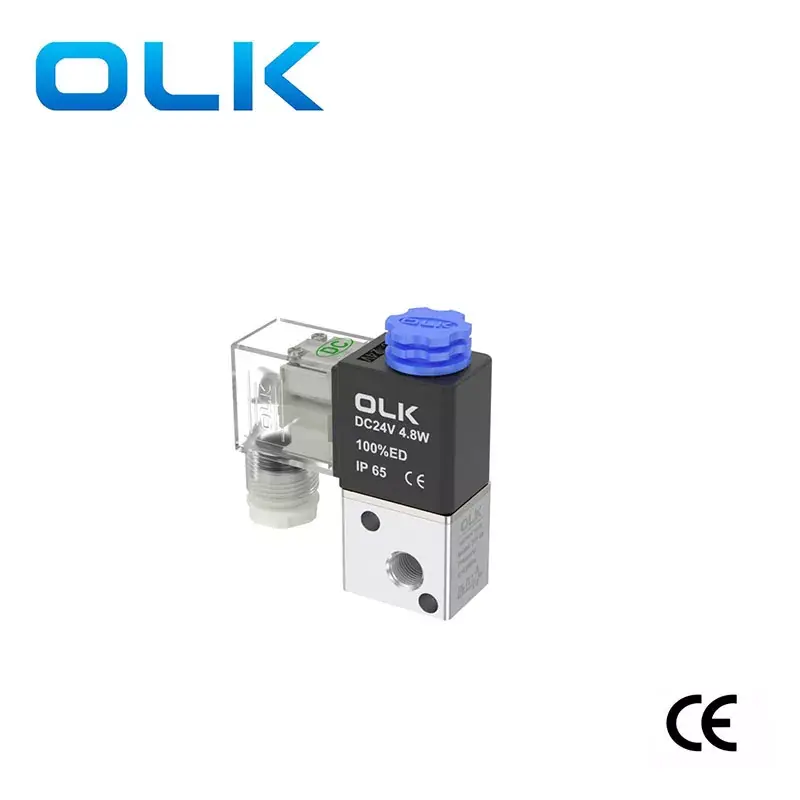

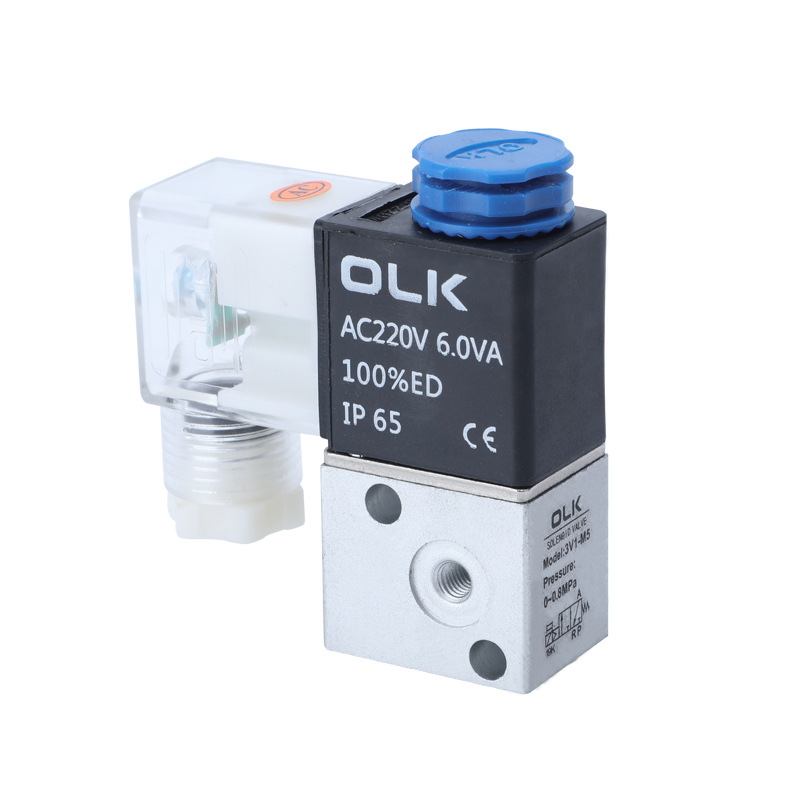

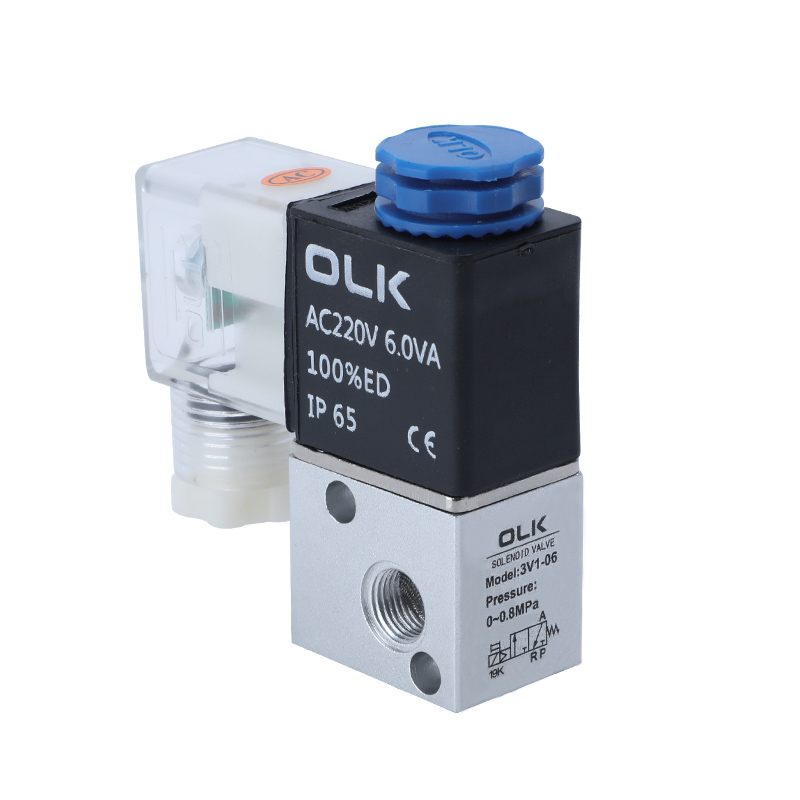

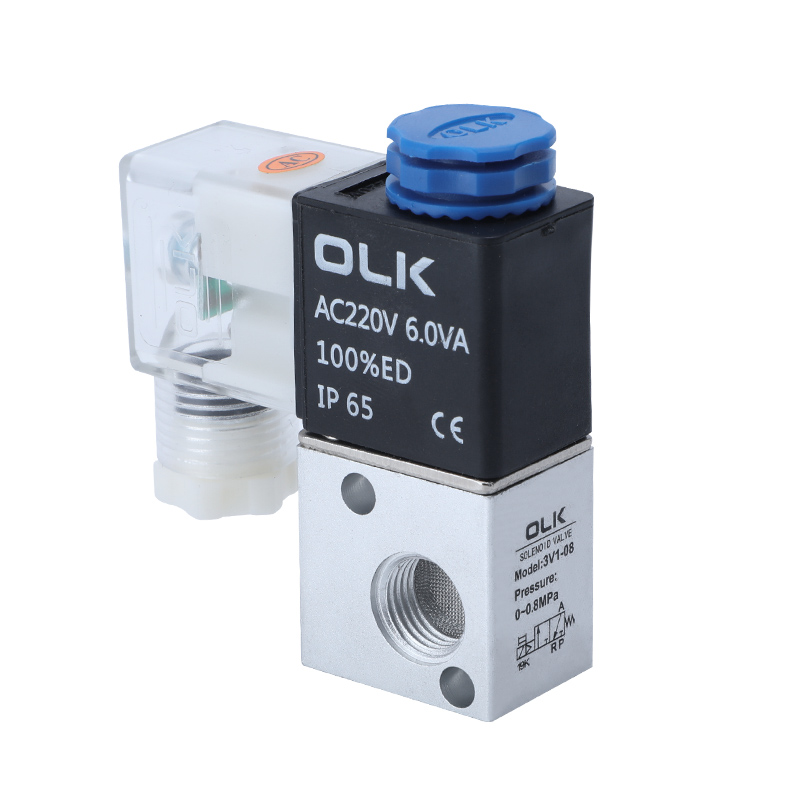

3V1 Series Solenoid Valve 3 Way

Model:3V1-06

As the professional manufacture, OLK pneumatic would like to provide you 3V1 Series Solenoid Valve 3 Way. And OLK will offer you the best after-sale service and timely delivery.

Send Inquiry PDF DownLoad

Product Description

Ouleikai (OLK) 3V1 Series Solenoid Valve 3 Way adopt advanced electromagnetic control technology to ensure fast and accurate switching operations. The 3V1 series does not require the addition of oil lubrication for use, reducing energy consumption and meeting environmental requirements. The valve body undergoes strict quality control and testing to ensure long-term stable performance.

Ouleikai (OLK) 3V1 series solenoid valves come in a complete set mode, suitable for providing more gas branch outputs in complex integrated environments. They are compact in size and suitable for installation in narrower spaces.

Ordering Code:
3V	1	06	A
Model:	series	Port size	Voltage:	Electrical entry:	Valve body identification code
3V:2 position 3 way valve	1 series	M5:M5	A:AC220V	Blank:DIN	Blank:series
		06:G1/8	B:DC24V	L:Line	D:Individual
			C:AC110V
			E:AC24V
			F:DC12V

OULEIKAI 3V1 SERIES SOLENOID VALVE 3 WAY Product characteristics

1. Direct-acting normally closed type, sensitive switching;

2. No need for oil lubrication;

3. Can be integrated with multiple valves, saving installation space;

4. Equipped with manual device for easy installation and debugging;

5. Multiple standard voltage levels are available for selection.

3V1 SERIES SOLENOID VALVE 3 WAY General parameters data:

working medium	Air (filtered through a filter over 40μm)
Action	direct acting
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0~0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-20~70
MAX operating frequency	10 times/second
Body material	aluminum alloy
Standard Voltage	AC220V, AC110V, AC24V, DC24V, DC12V
Use voltage range	AC:±15％DC:±10％
power consumption	AC: 6VADC: 6W
protection level	IP65 (DIN40050)
heat resistance grade	Class B
Connection type	DIN socket type, outlet type
Excitation time	0.05 seconds or less
