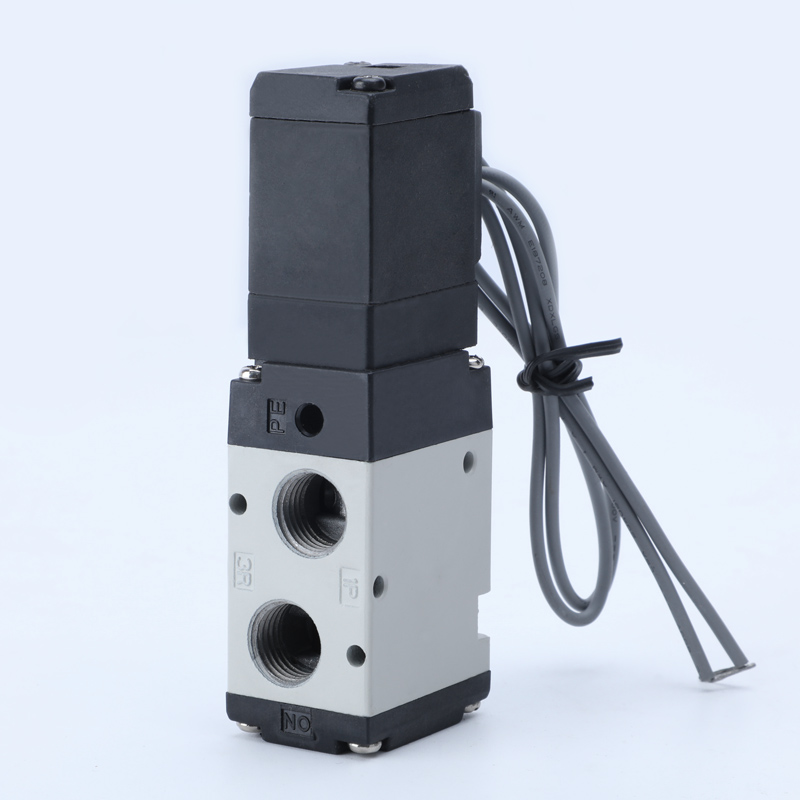

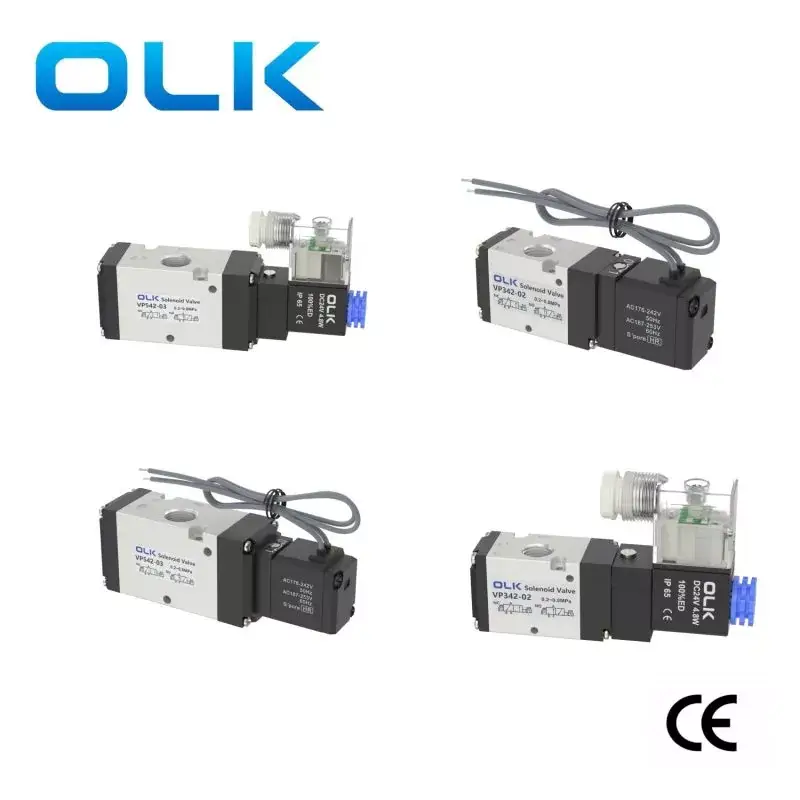

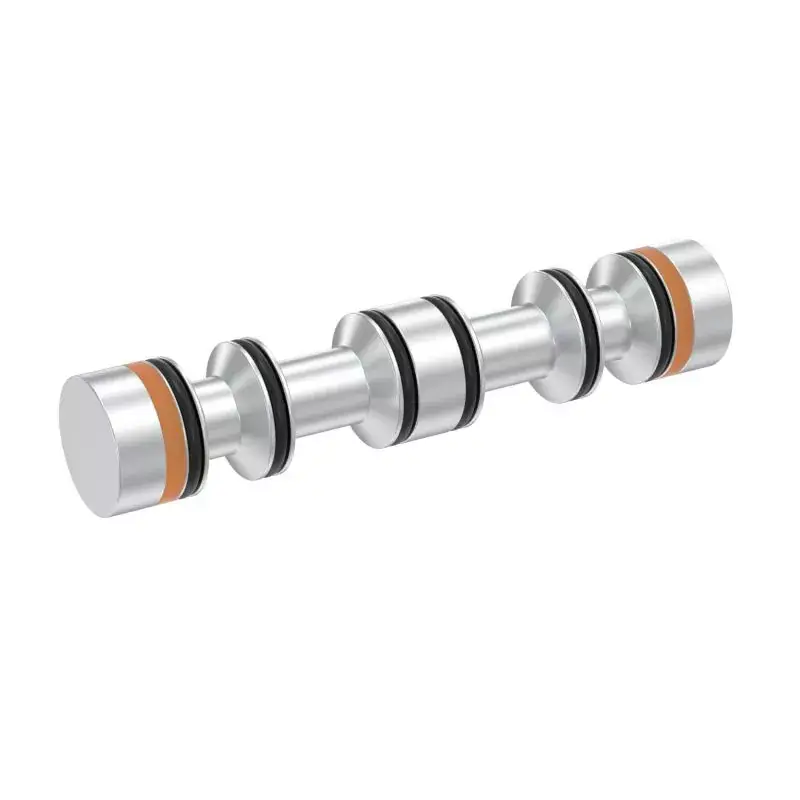

The Ouleikai (OLK) VP Series Solenoid Valve 3 Way are available in two control types: internal pilot and external pilot. The normally open and normally closed functions can be switched by changing the installation direction of the bottom cover. The VP series offers multiple standard voltages for selection.
Note! Do not use voltages beyond the specified range to avoid safety hazards. If abnormal smoking, leakage, or other anomalies are detected with the valve, immediately cease usage, disconnect the power supply, and contact OLK company sales personnel to discuss after-sales service.
SYMBOL:
|
Ordering code |
||||||||||
| VP | 3 | 4 | 2 |
|
1 | G | B |
|
A | |
| VP SERIES | 3:3 SERIES | Acting type |
|
POILT MODE | Voltage |
Wiring method |
Debug Tool Locking |
PORT SIZE |
|
|
|
|
5:5 SERIES | NC/NO |
|
Blank:internal pilot | A:AC220V | G:LINE |
|
02:PT1/4 | Blank:PT | A:NC |
|
|
|
|
|
R:external pilot | B:DC24V | E:DIN |
|
03:PT3/8 | T:NPT | B:NO |
|
|
|
|
|
|
C:AC110V |
|
|
|
G:G |
|
|
|
|
|
|
|
E:AC24V |
|
|
|
|
|
|
|
|
|
|
|
F:DC12V |
|
|
|
|
|

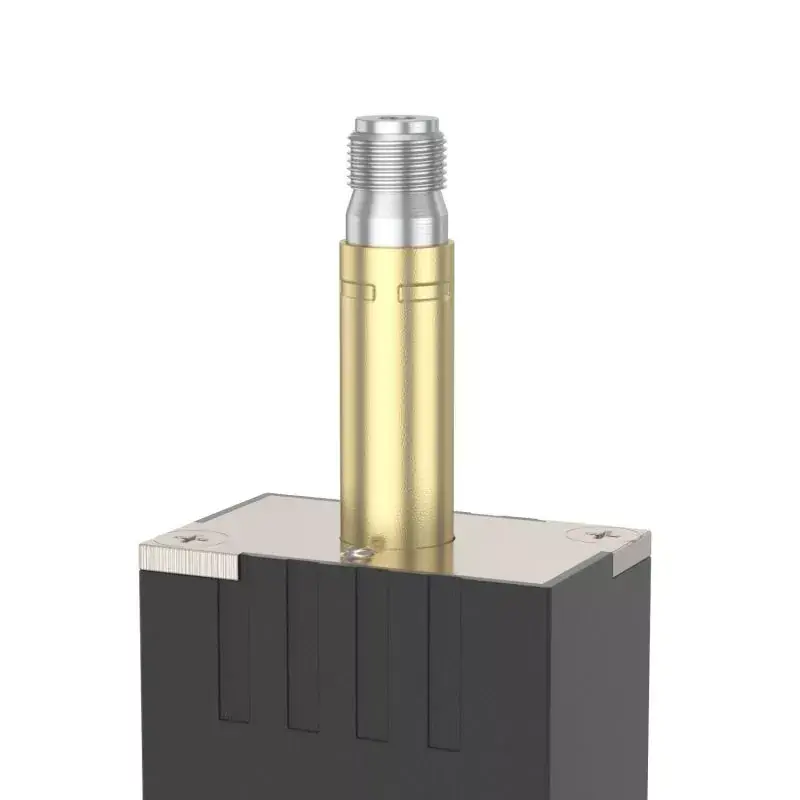

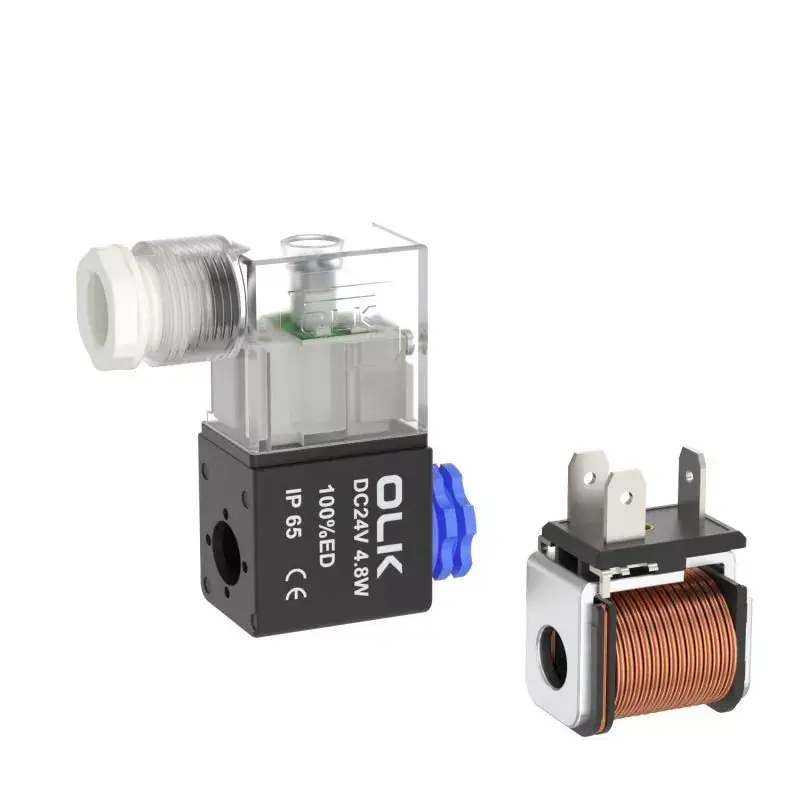

Product Features:
1. Pilot mode: External or internal options available.
2. Globe valve structure, boasting excellent sealing, responsive reaction, and high flow rate.
3. Lubrication-free operation.
4. Integrable with base-mounted valve assemblies, saving installation space.
5. Equipped with manual device for convenient installation and debugging.
6. Various standard voltage ratings available for selection.
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Pilot type |
|
number of positions |
Two position three way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0.2～0.8 |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-10～50°C (not frozen) |
|
MAX operating frequency |
5 times/second |
|
Body material |
aluminum alloy |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: start 6VA, maintain 3VA, DC: 2.5W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Class B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|

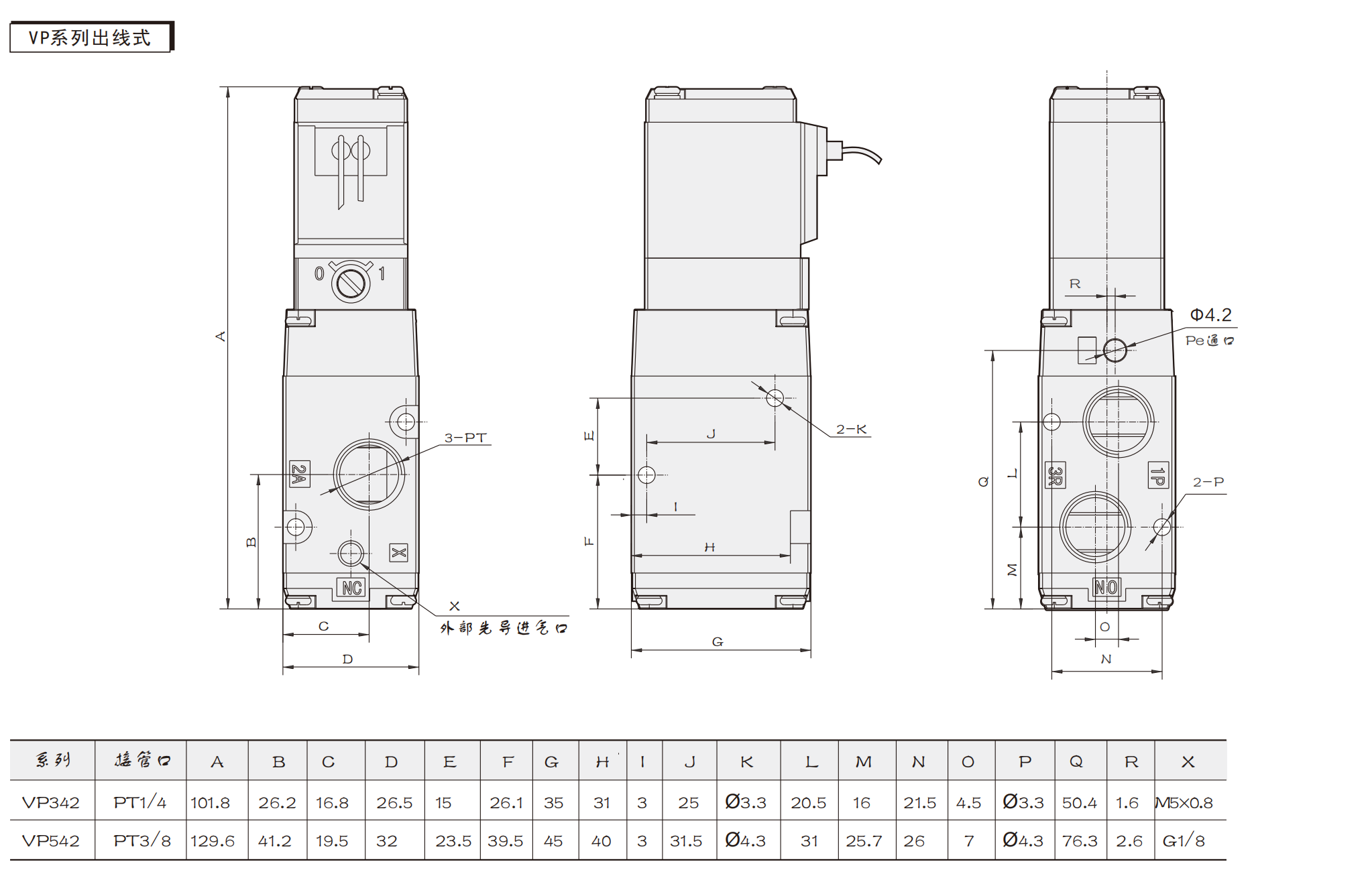

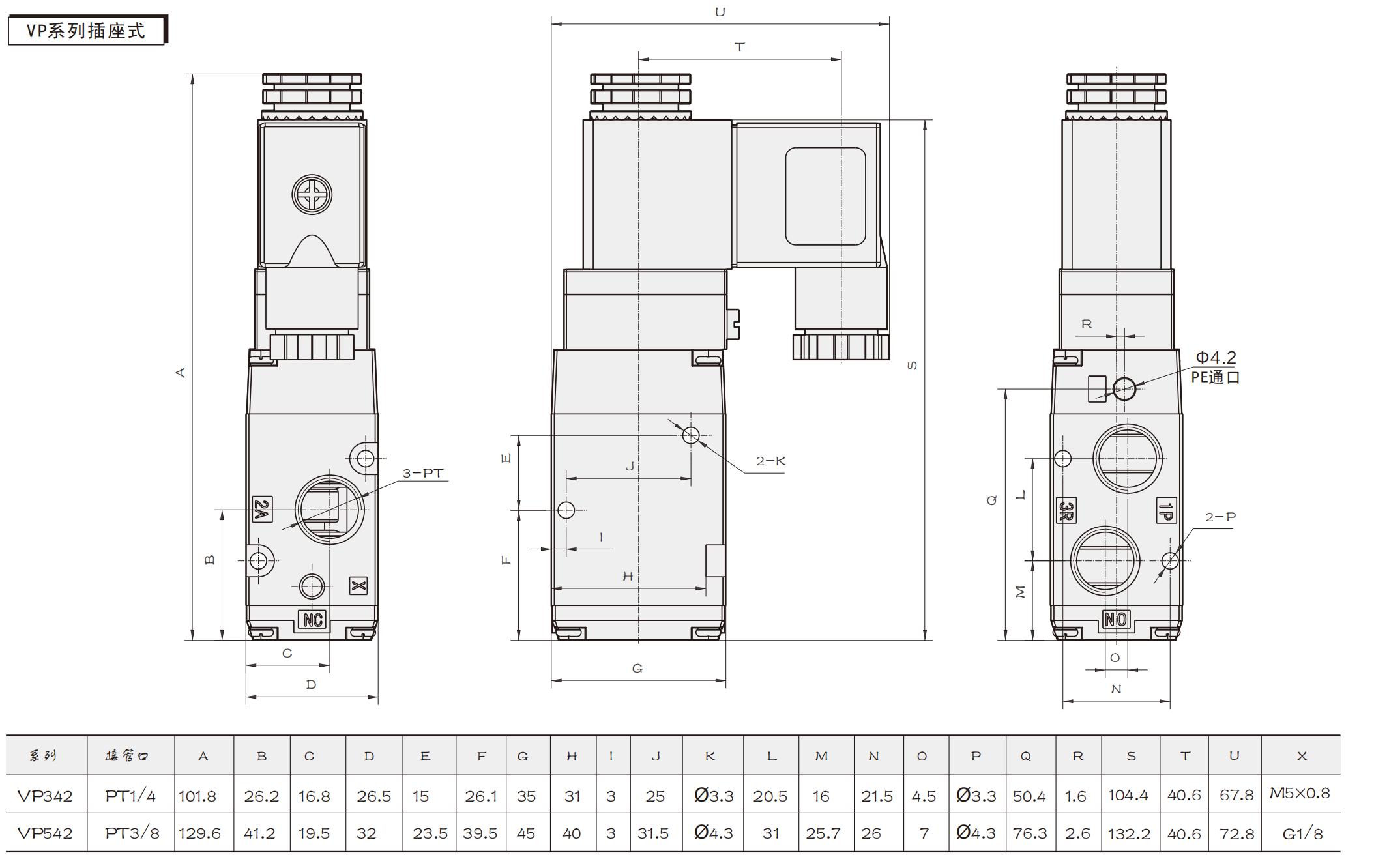

model |
Port diameter |
|

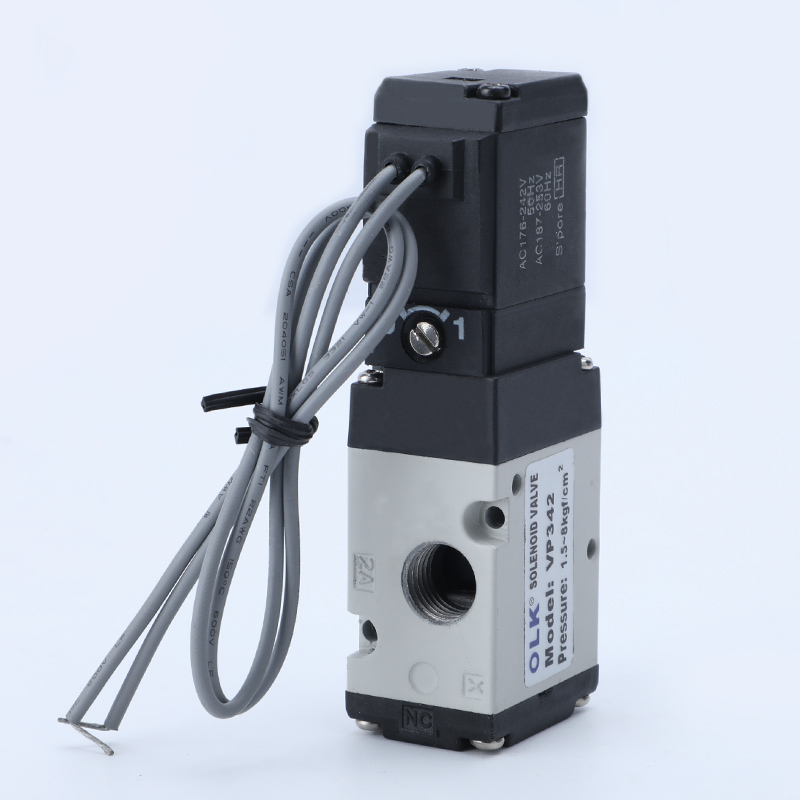

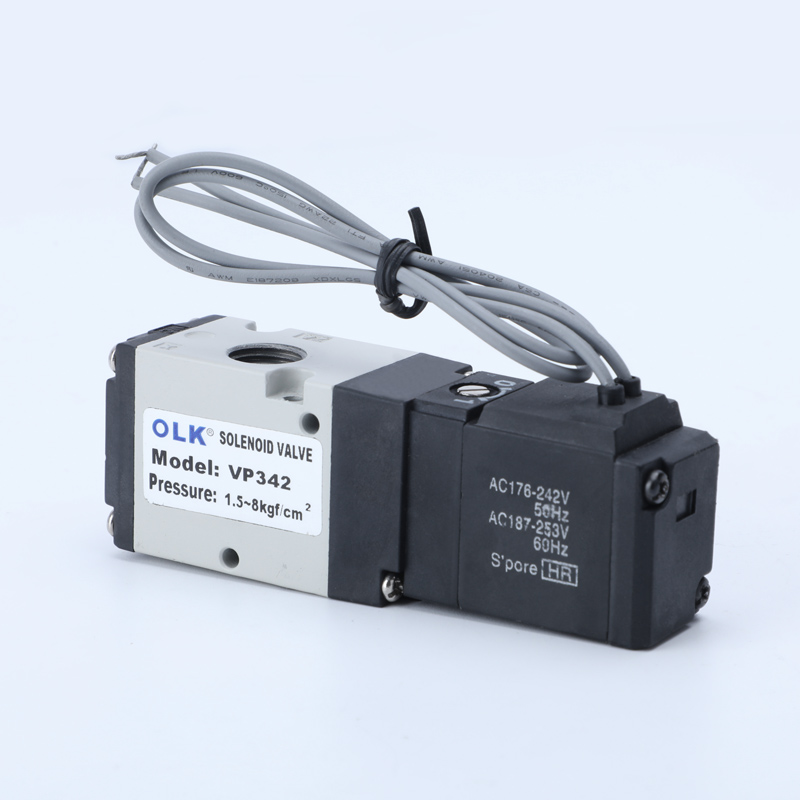

VP342 |
Intake=outlet=PT1/4 |
|

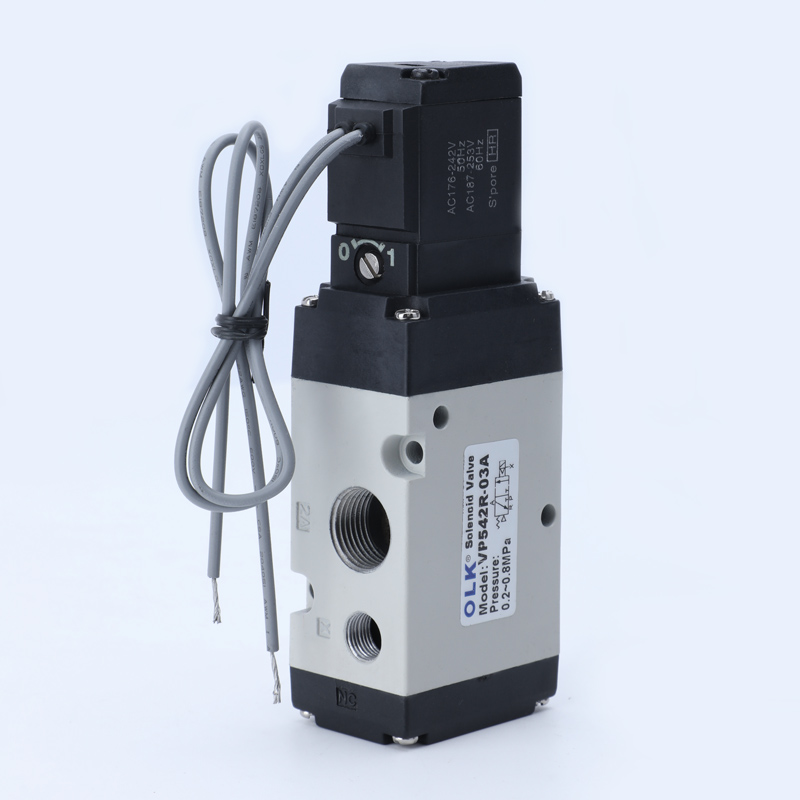

VP542 |
Intake=outlet=PT3/8 |
Address
Zhengtai Road, Xinguang Industrial Zone, Liushi, Yueqing, Wenzhou, Zhejiang, China.
