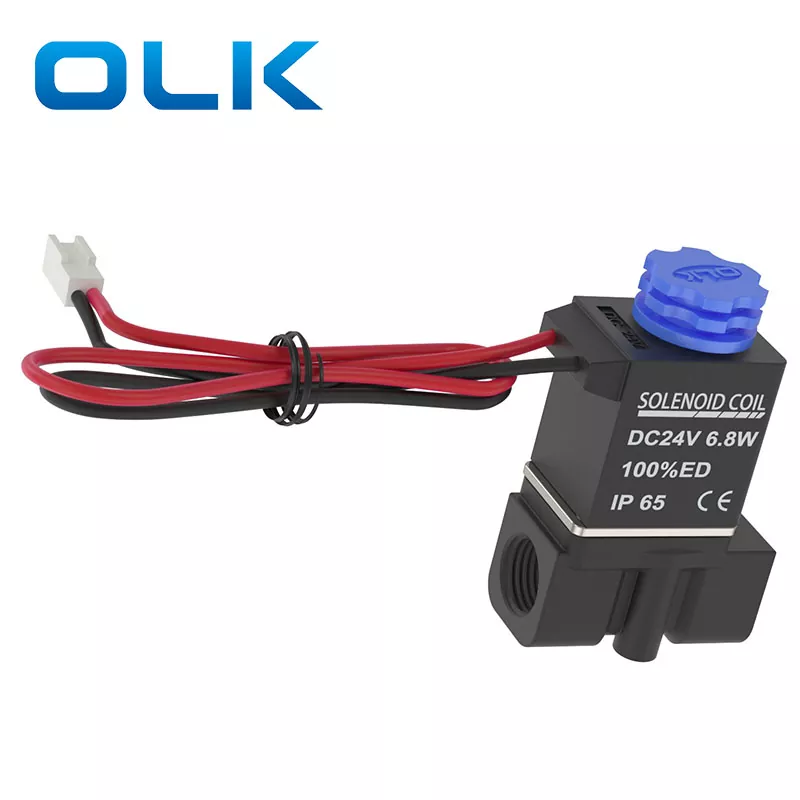

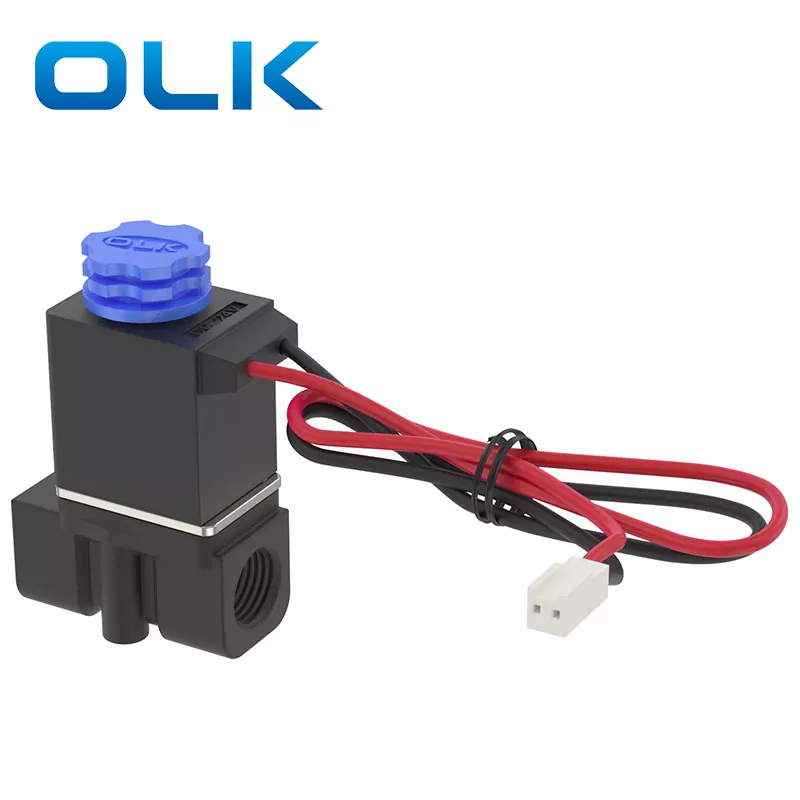

2P025 fluid control valve 2 positon 2 way valve body used in PA66,nylon material.The working media used are air, water, and oil.In most cases, it is in the closed state (NC).
When 2P025 2/2 way coil is outage,the plunger rests on the main hole and is held in place by the plunger spring force,thereby sealing the valve.When the coil is energized, the electromagnet lifts the plunger, allowing the working medium to flow through the orifice.
1. Direct acting normally closed two port two position solenoid valve, with quick and sensitive direction change;
2. Compact structure, small volume, light weight, easy to assemble and disassemble; 3. The valve body material is nylon 66, the electromagnetic coil grade is B, and the sealing material is fluororubber (VITON), suitable for various working media;
3. The coil protection level is IP65, and the power connection method is direct outgoing type
|
Ordering code |
||||
|
2P |
025 |
08 |
A |
Line type |
|
MODEL |
drift diameter |
PORT SIZE |
VOLTAGE |
Blank:DIN |
|
2 position 2 way |
025:2.5mm |
06:G1/8 |
A:AC220V |
I:LINE |
|
08:G1/4 |
B:DC24V |
|||
|
C:AC110V |
||||
|
E:AC24V |
||||
|
F:DC12V |
|
Action |
direct acting |
|
number of positions |
2-bit 2-way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0~0.8(0~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: 6VADC: 6W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Class B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|
model |
working medium |
Port diameter |
Flow cross-sectional area mm² (CV value) |
Body material |
|
2P025-06 |
air, water, oil |
G1/8 |
(0.23) |
Nylon 66 |
|
2P025-08 |
air, water, oil |
G1/4 |
(0.23) |
Nylon 66 |
