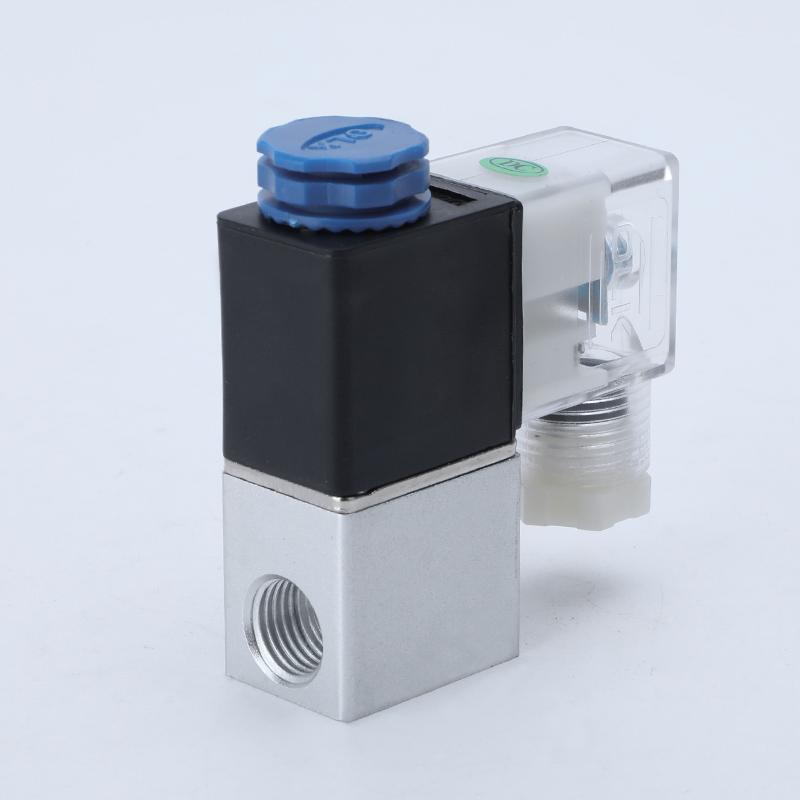

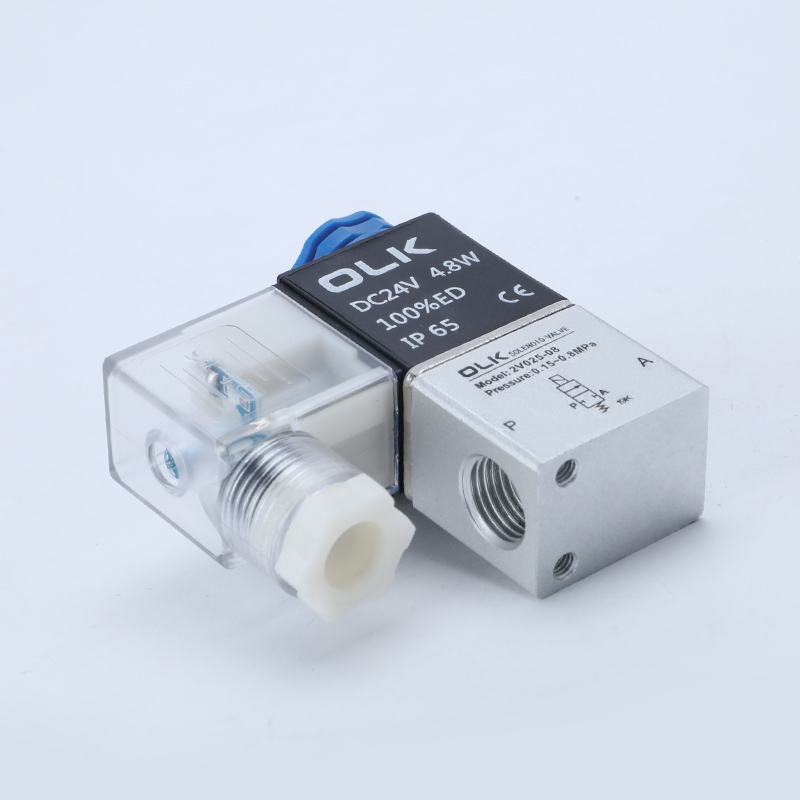

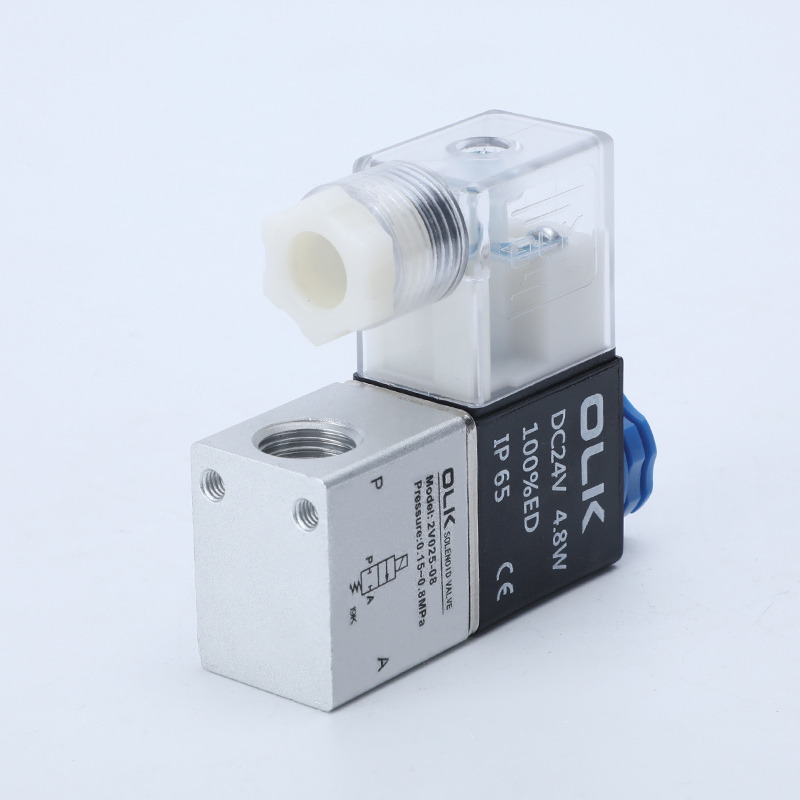

2V025-08 Fluid Solenoid Valve solenoid valve is a fluid control valve suitable for various working media such as air, water, and oil.
The 2V025-08 Fluid Solenoid Valve is made of aluminum alloy, which is lighter than other metal valves, while maintaining good strength, corrosion resistance, and thermal conductivity. It can maintain its functionality in harsh working environments and is suitable for fluid control systems in various industrial equipment such as air compressors, water treatment equipment, hydraulic systems, etc., providing users with greater flexibility and options.
The standard interface for 2V025 is G1/8 or G1/4, available in integrated sets for easy installation. Its operating voltage has multiple options, depending on the specific application scenario, to choose the appropriate voltage power.
Ouleikai (OLK) 2V025-08 fluid solenoid valve is the ideal choice for your fluid control system, providing reliable solutions for your production line.
SYMBOL:
|
Ordering code |
|||||
| 2V | 025 | 08 | A |
|
10F |
| MODEL |
|
PORT SIZE | Voltage |
Wiring method |
PCS |
| 2 position 2 way(2/2 way) | 025:2.5mm | 06:G1/8 | A:AC220V | Blank:DIN | 2F:2PCS |
|
|
|
08:G1/4 | B:DC24V | l:LINE | 3F:3PCS |
|
|
|
|
C:AC110V |
|
... |
|
|
|
|
E:AC24V |
|
10F:10PCS |
|
|
|
|
F:DC12V |
|
|
1. Direct-acting normally closed two-port two-way solenoid valve, with rapid and sensitive switching.
2. Lightweight and compact structure.
3. The valve body is made of brass, the electromagnetic coil has a heat resistance rating of Class B, and the sealing material is fluororubber (VITON), suitable for a variety of working media.
|
Action |
direct acting |
|
number of positions |
2-bit 2-way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0~0.8(0~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: 6VADC: 6W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Class B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|
model |
working medium |
Port diameter |
Flow cross-sectional area mm² (CV value) |
Body material |
|
2V025-06 |
Air (filtered through a filter over 40μm) |
G1/8 |
(0.23) |
aluminum alloy |
|
2V025-06-10F |
Air (filtered through a filter over 40μm) |
G1/8 |
(0.23) |
aluminum alloy |
|
2V025-08 |
Air (filtered through a filter over 40μm) |
G1/4 |
(0.25) |
aluminum alloy |
|
2P025-06 |
air, water, oil |
G1/8 |
(0.23) |
Nylon 66 |
|
2P025-08 |
air, water, oil |
G1/4 |
(0.23) |
Nylon 66 |
