3V100 Series Solenoid Valve 3 Way

Model:3V210

Welcome to wholesale 3V100 Series Solenoid Valve 3 Way from us, every request from customers is being replied within 24 hours. OLK is the professional manufacturer, we would like to provide you 3V100 series and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

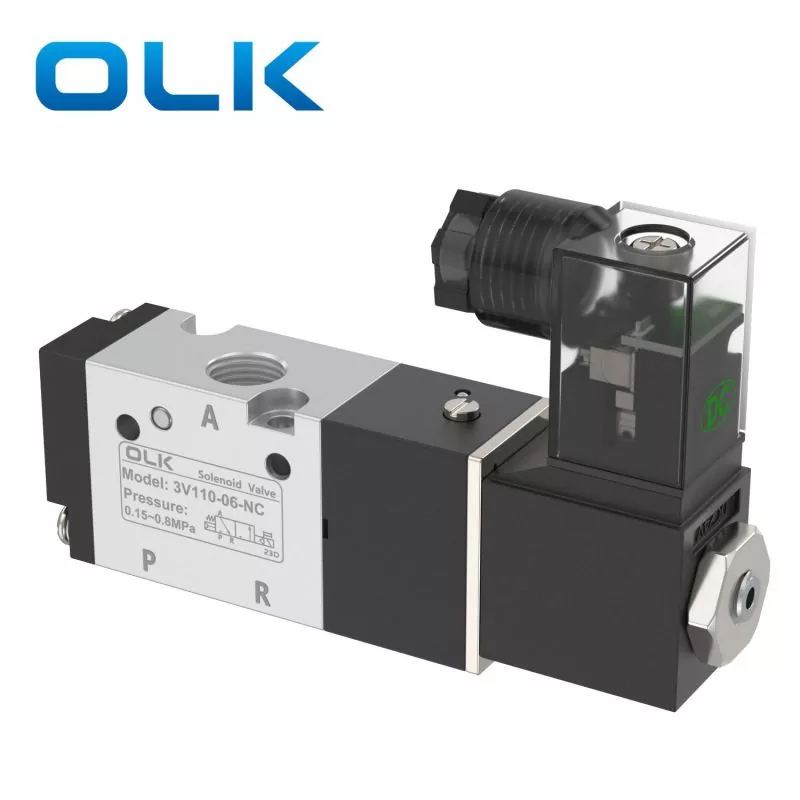

OLK 3V100 Series Solenoid Valve 3 Way, it is pilot operate type.the response speed more fast and operation more reliable. Suitable for controlling single-acting pneumatic cylinders. The valve body is high quality aluminum alloy material and resistant., making it suitable for use in various harsh environments.

It can be matched with industrial automation scenarios, such as fluid control and conversion on various automated production lines, pneumatic equipment, medical devices, etc.

Ordering Code

3V	1	10	6	NO
Model	Code	valve type	port size	Action type
3V:3/2way solenoid valve	1:100 series	10:single solenoid 5/2 way	M5:M5	NC:Normally closed
		20:double solenoid vlave 5/2 way	06:G1/8	NO:Normally open

3V series solenoid valve 3 way parameters data:

Model	3V110-M5	3V120-M5	3V110-06	3V120-06
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	Internal Pilot Type

port size	M5		G1/8
Effective cross-sectional area	5.5mm²（Cv=0.31）		12.0mm²（Cv=0.67）
Positions	3/2 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Woking Pressure	‘-20-70 ℃
Body Material	Aluminum Alloy

3/2 way 3V100 solenoid valve LINE /DIN type voltage choose

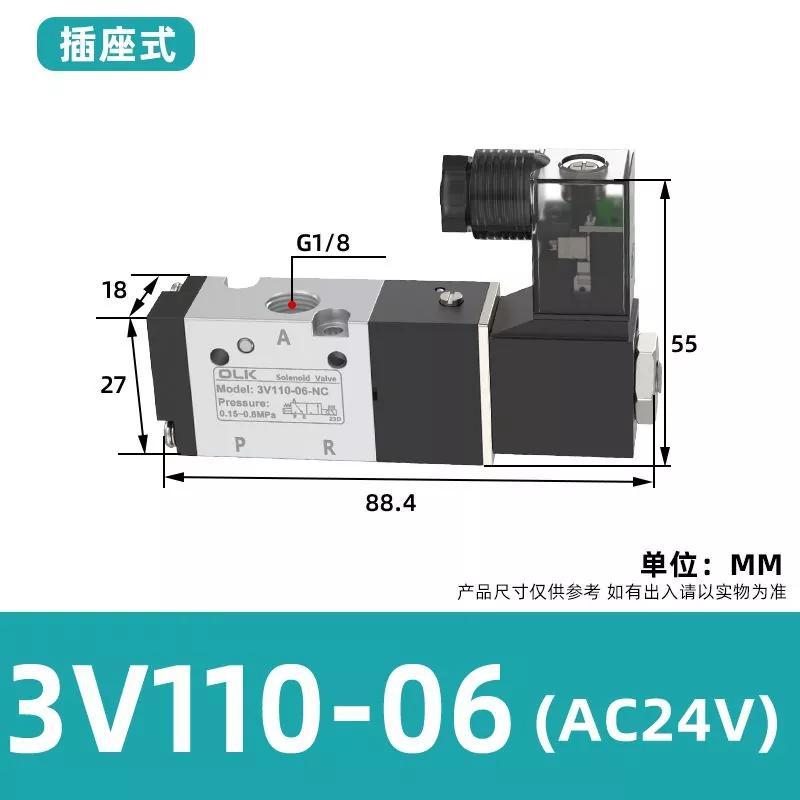

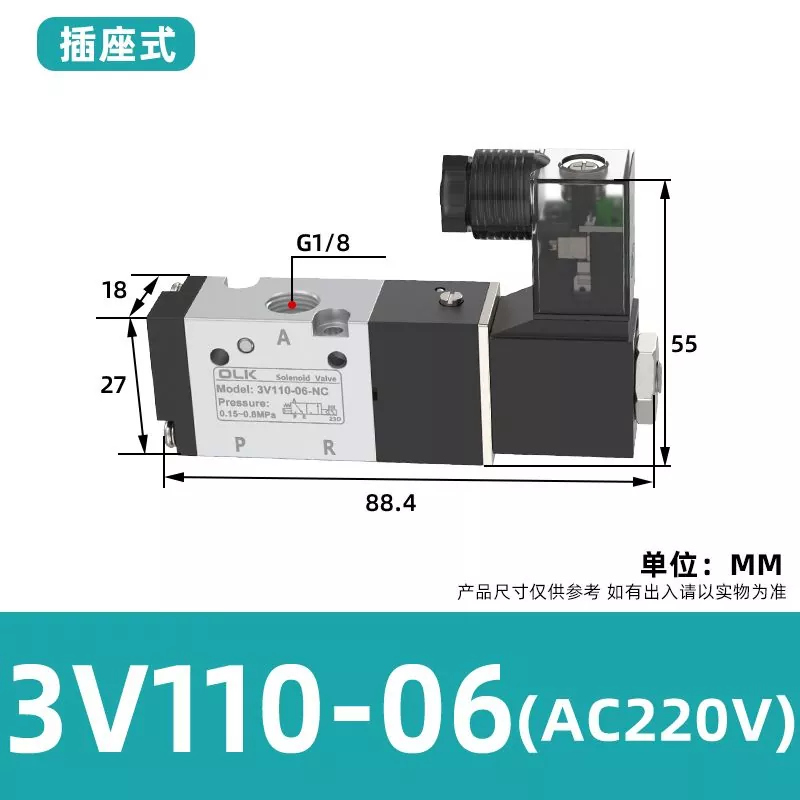

3V110-06 AC24V	3V110-06 AC110V	3V110-06 AC220V	3V110-06 DC220V	3V110-06 DC24V
3V110-M5 AC24V	3V110-M5 AC110	3V110-M5 AC220V	3V110-M5 DC220V	3V110-M5 DC24V
3V120-06 AC24V	3V120-06 AC110V	3V120-06 AC220V	3V120-06 DC220V	3V120-06 DC24V
3V120-M5 AC24V	3V120-M5 AC110V	3V120-M5 AC220V	3V120-M5 DC220V	3V120-M5 DC24V
