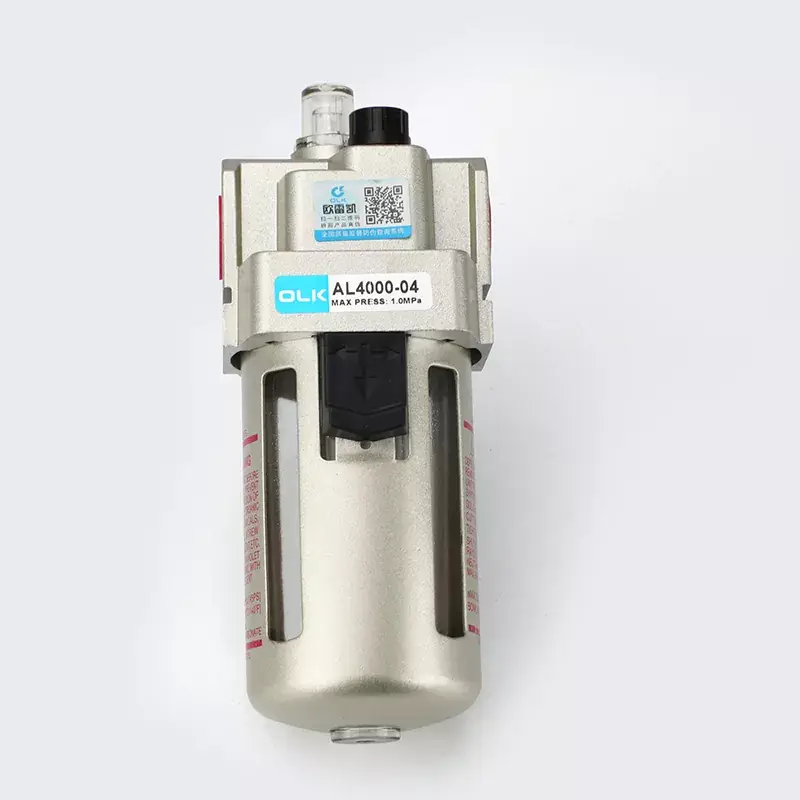

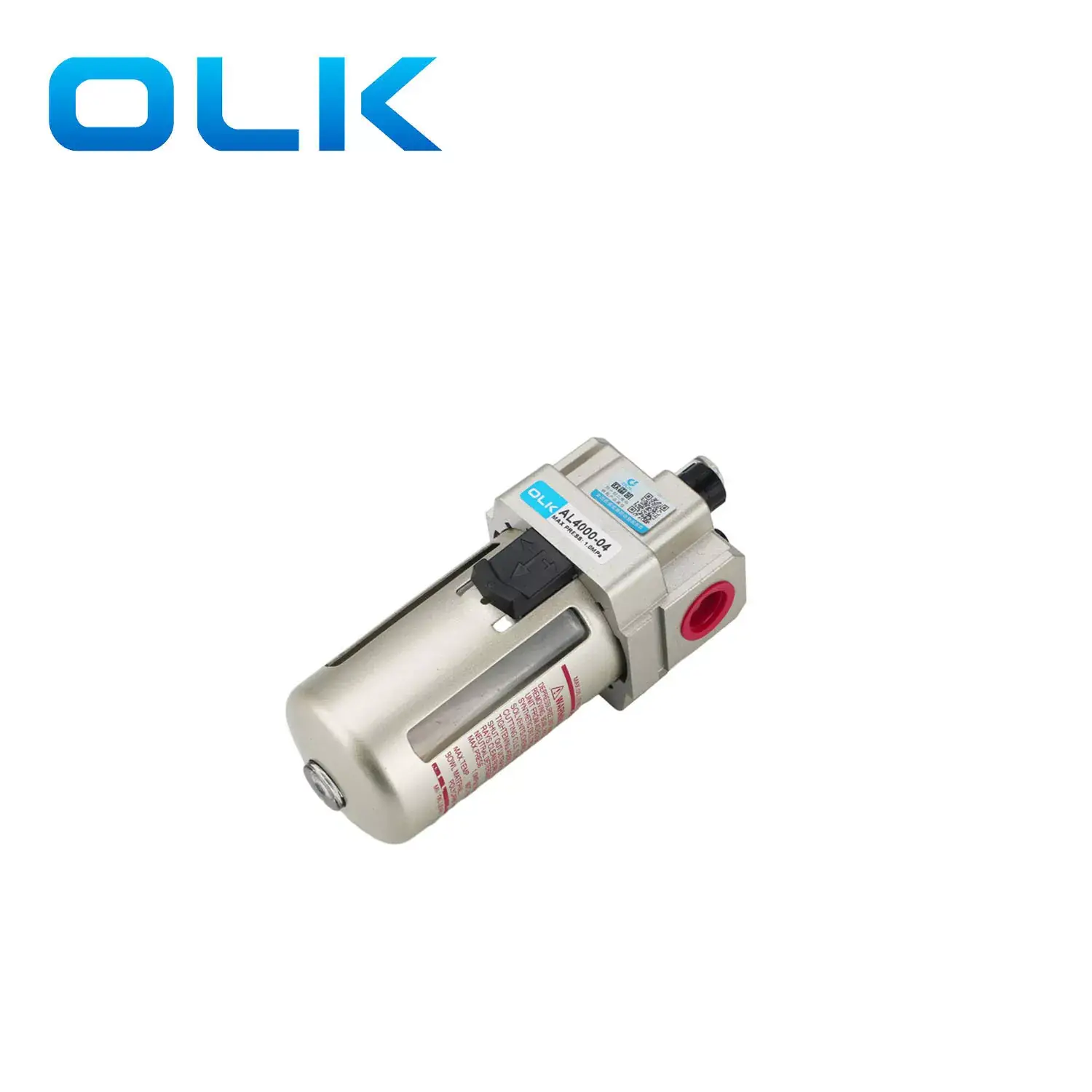

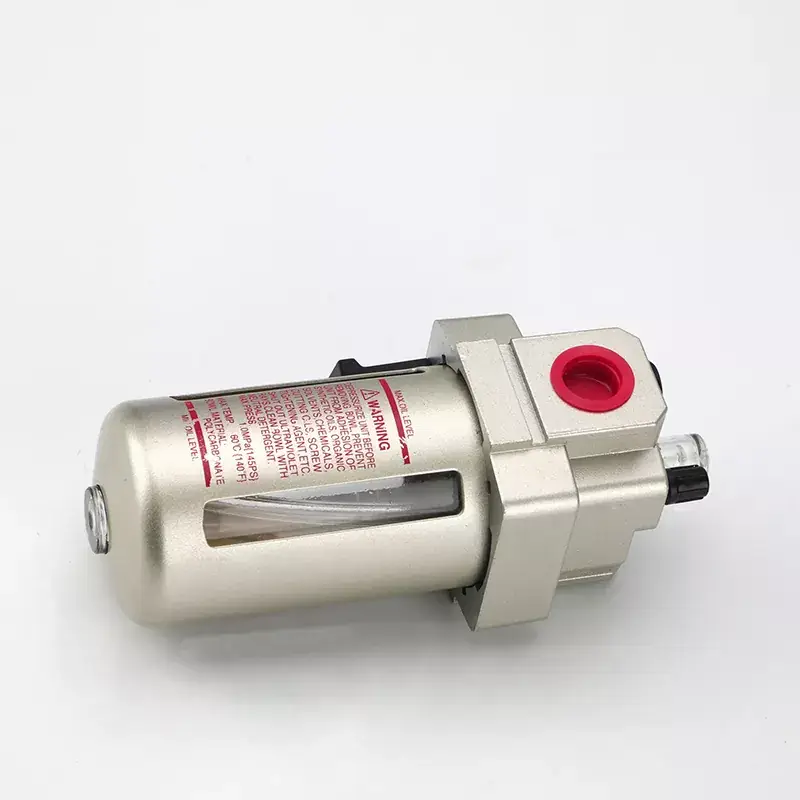

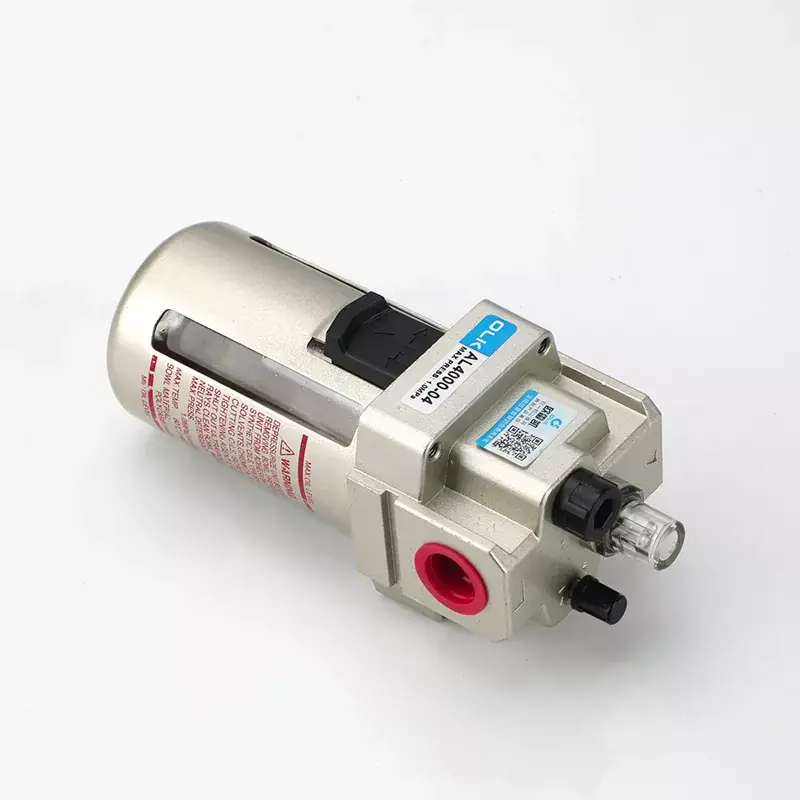

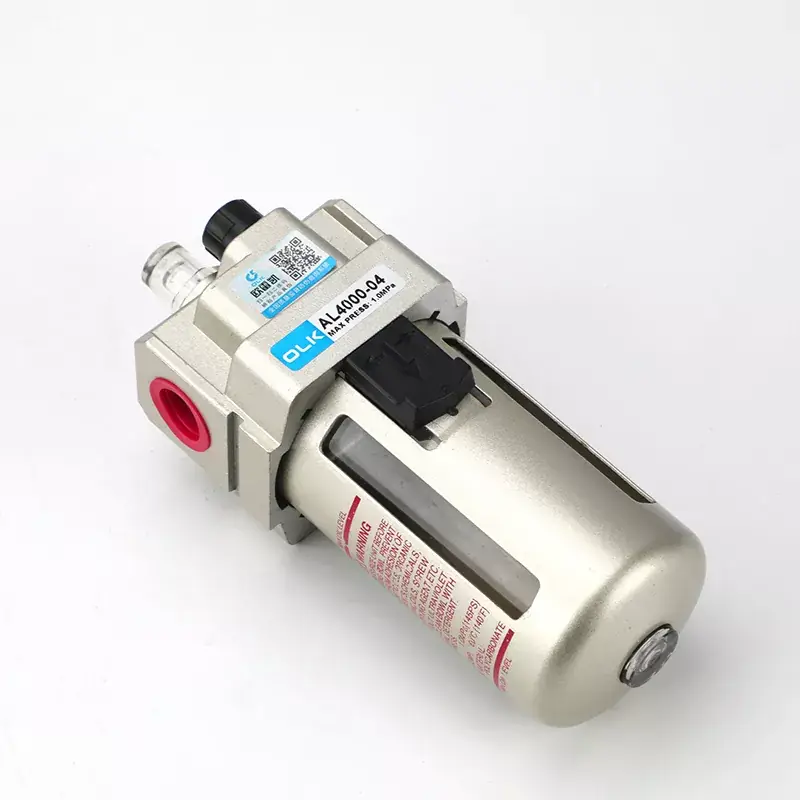

The SMC Type AL Air Lubricator manufactured by OLK pneumatic manufacturer ensures precise lubrication of downstream machinery. The AL reservoir (sizes 30 and 40) is protected by a transparent cup protector, allowing for comprehensive observation from all angles. The lubricant distribution rate can be modified according to the needs of the machine. The AL design air lubricator allows for integration with additional SMC type air preparation equipment.
|
Proof pressure |
1.5 Mpa (15.3 kgf/cm²） |
|
Maximum working pressure |
1.0Mpa(10.2 kgf/cm²） |
|
Ambient and fluid temperatures |
5-60℃ |
|
Filtration aperture |
5 μm |
|
Recommended Oil |
ISOVG 32 |
|
Cup material |
PC |
|
Cup protective cover |
AL1000-2000(without) AL 3000-5000 (with) |
|
ITEM. |
Minimum operating flow rate (L/min) |
L/min |
Rc (PT) |
cm² |
Kg |
|
AL1000-M5 |
4 |
95 |
M5X8 |
7 |
0.07 |
|
AL2000-02 |
15 |
800 |
1/4. |
25 |
0.22 |
|
AL3000-02 |
30 |
1700 |
1/4. |
50 |
0.3 |
|
AL3000-03 |
40 |
5000 |
3/8. |
50 |
0.3 |
|
AL4000-03 |
40 |
5000 |
3/8. |
130 |
0.56 |
|
AL4000-04 |
50 |
5000 |
1/2. |
130 |
0.56 |
|
AL4000-06 |
50 |
6300 |
3/4. |
130 |
0.58 |
|
AL5000-06 |
190 |
7000 |
3/4. |
130 |
1.08 |
|
AL5000-10 |
190 |
7000 |
1 |
130 |
1.08 |
