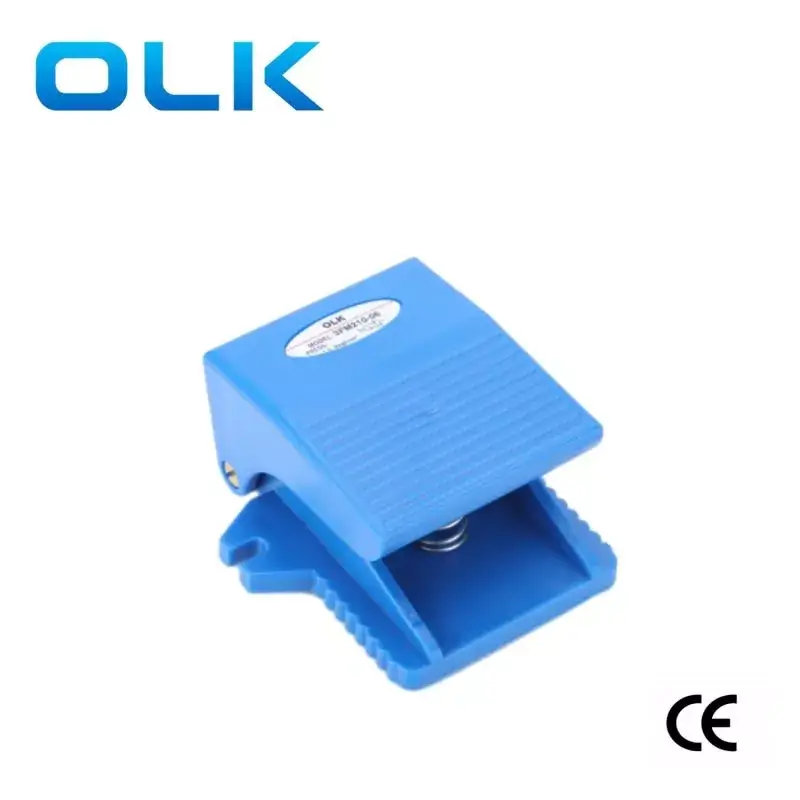

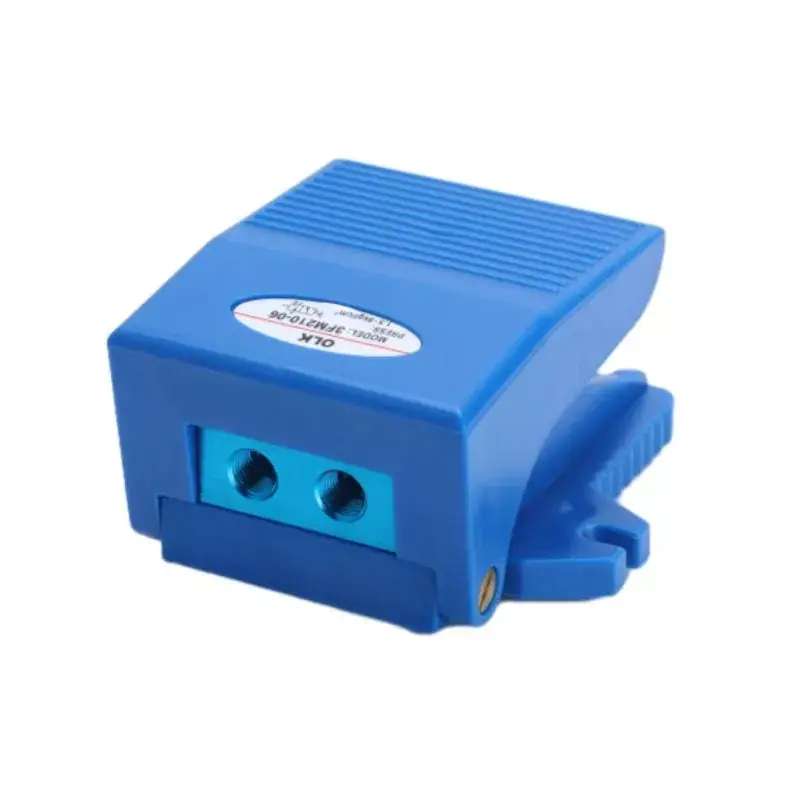

The Ouleikai (OLK) 3FM series (plastic) 2-position 3-way foot-operated direct-acting directional valve is a single-acting foot valve suitable for industries such as semiconductor manufacturing, printing tension control, and automation control. These valves ensure smooth, non-leaking operation with excellent rebound and deformation resistance. They offer outstanding corrosion and wear resistance, resulting in a long service life. Foot operation enables the switching or direction change of the valve, with the option to select between 2-position 3-way or 4-way modes as needed.

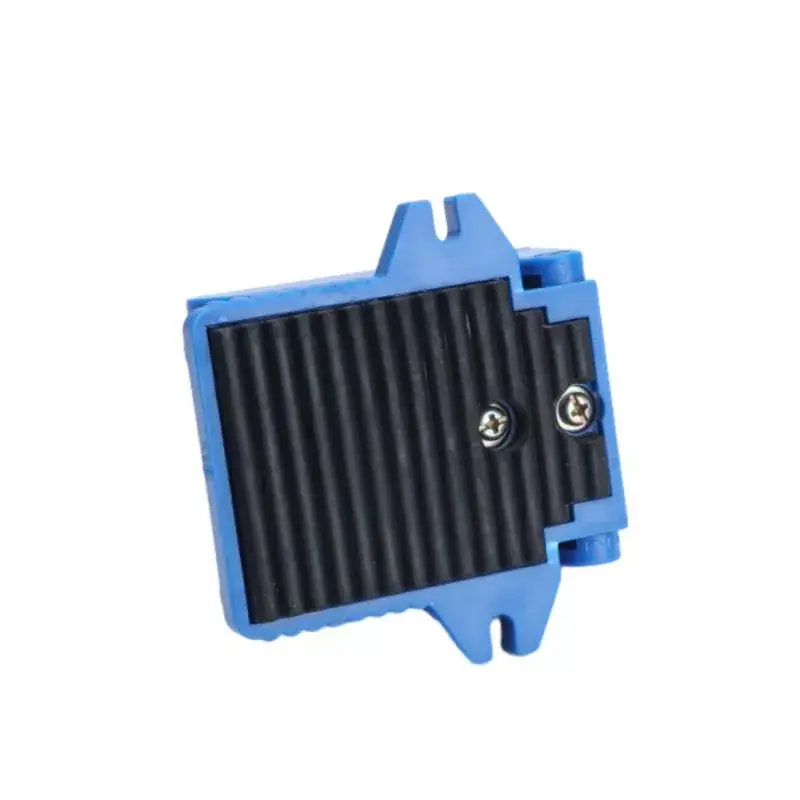

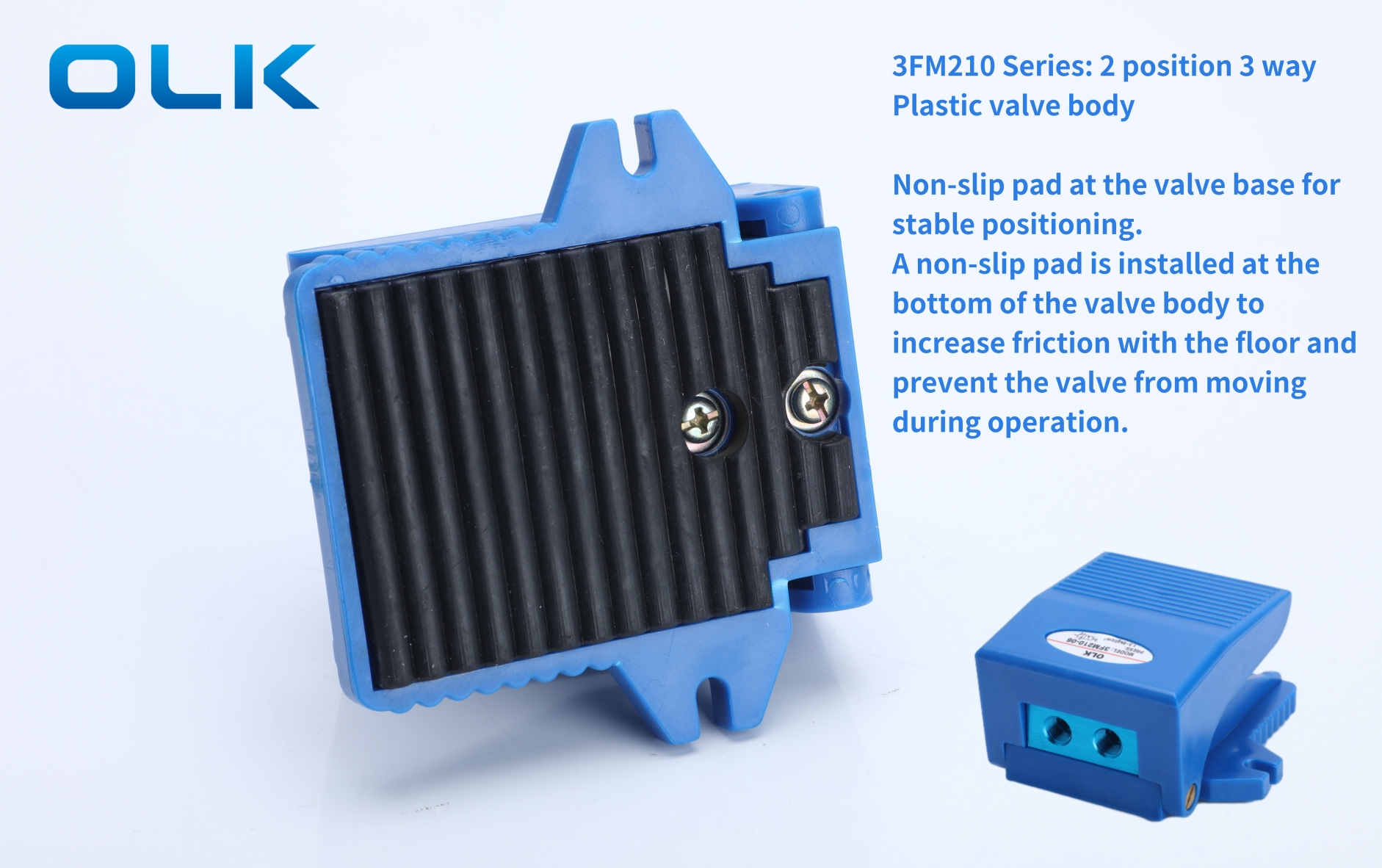

Ouleikai (OLK) has designed durable, non-slip rubber foot pads that increase friction, making foot operation easier. During use, please pay attention to the position and status of the 3F foot valve to ensure correct operation and avoid malfunctions.
SYMBOL:
Ordering code:
3FM210
08
L
MODEL:
PORT SIZE
3FM:--
3FM:3/2 way pneumatic foot pedal valve mini type
06:G1/8
BLANK:STANDARD
3F:3/2 way pneumatic foot pedal valve
08:G1/4
L:WITH LOCK
|
Model |
3FM |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
|
Action mode |
Foot control direct action normally closed type |
|
Port Size |
G1/4 |
|
Position |
2/3 Port |
|
Pressure range |
0-0.8MPa (0-114psi) |
|
Proof pressure |
1.5MPa(15bar) (215psi) |
|
Woking Pressure |
‘-5-60℃ |
|
Body Material |
Plastic |
|
Lubrication |
NO NEED |
