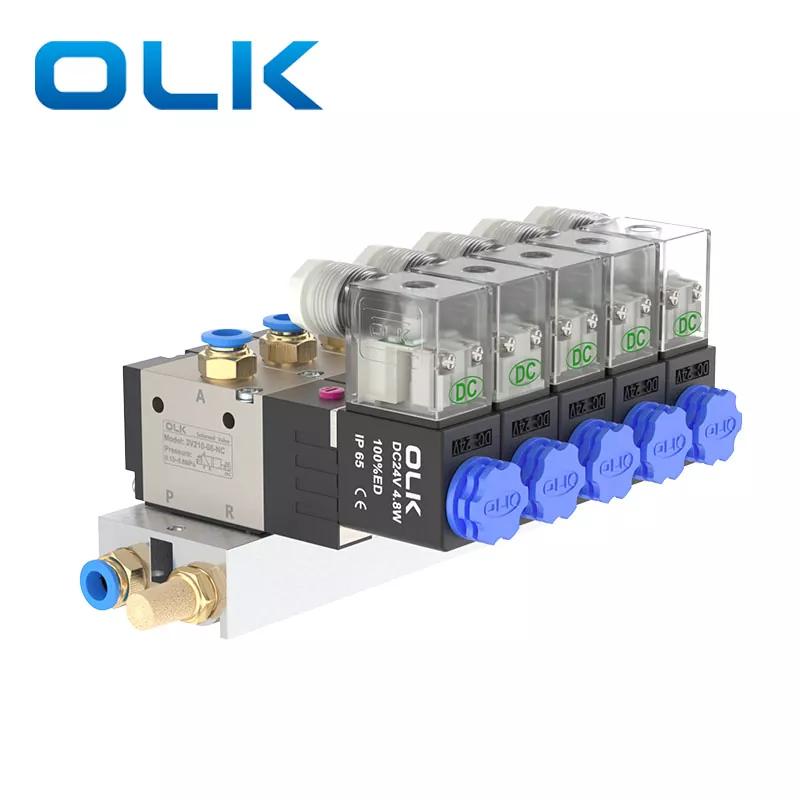

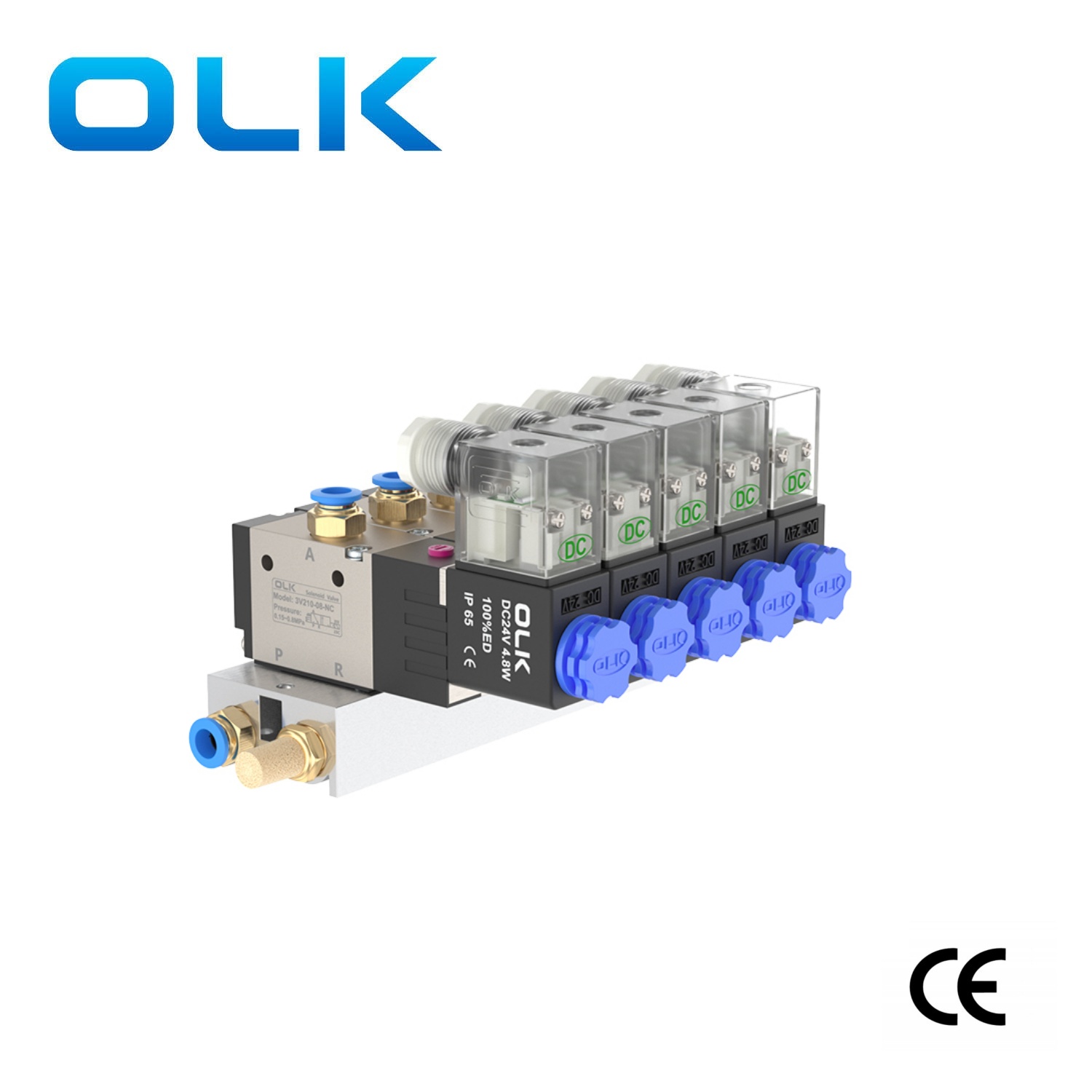

3v-manifold valve the sturdy body has a long lifespan and is very suitable for electric and pneumatic power control.It is easy to install and maintain. It has a wide range of applications， like household appliances, industrial equipment, medical equipment, washing machines, drinking fountains, garden sprinkler irrigation, etc. Reliable accuracy makes it competent for any work situation.
|
|

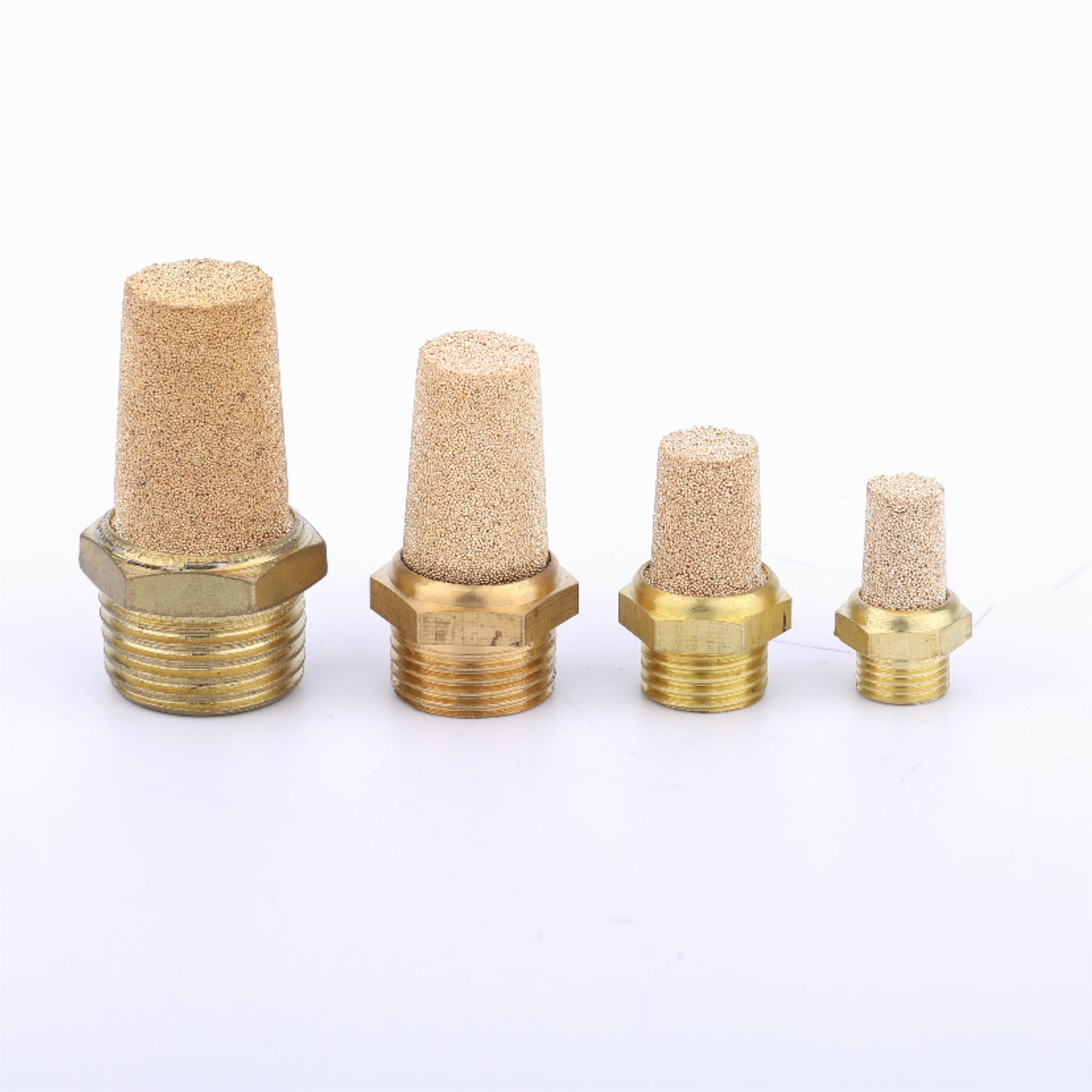

Muffler |
plug |

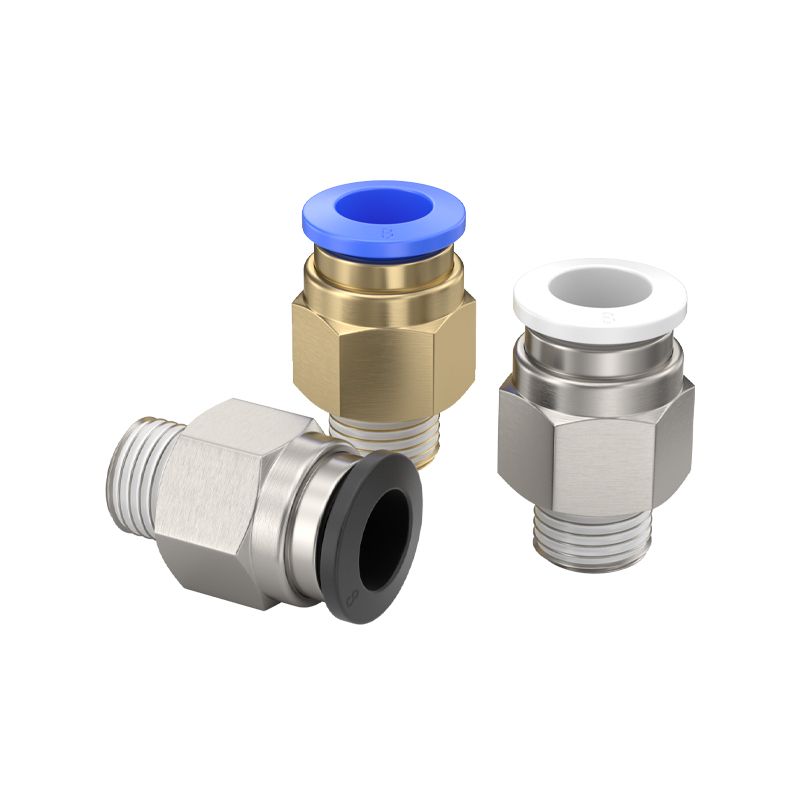

PL8-02 |
PC8-02 |

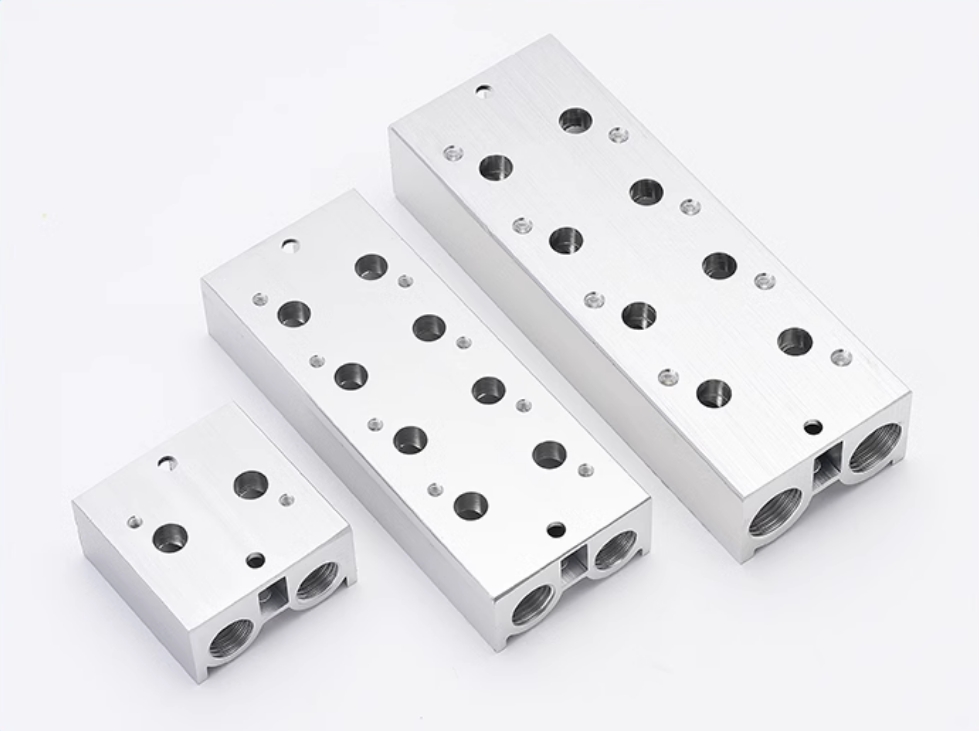

Bus board |

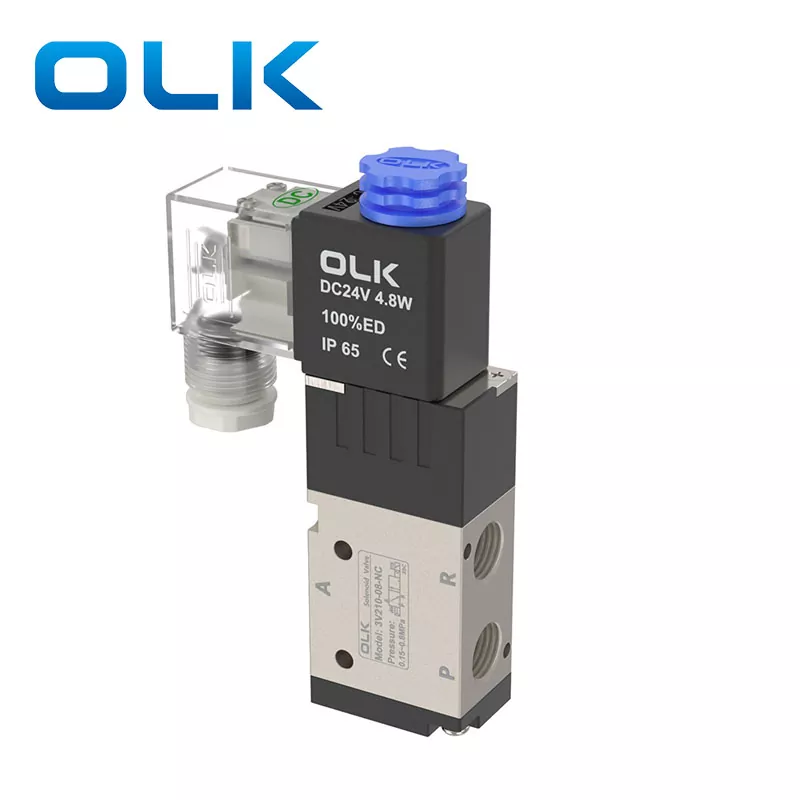

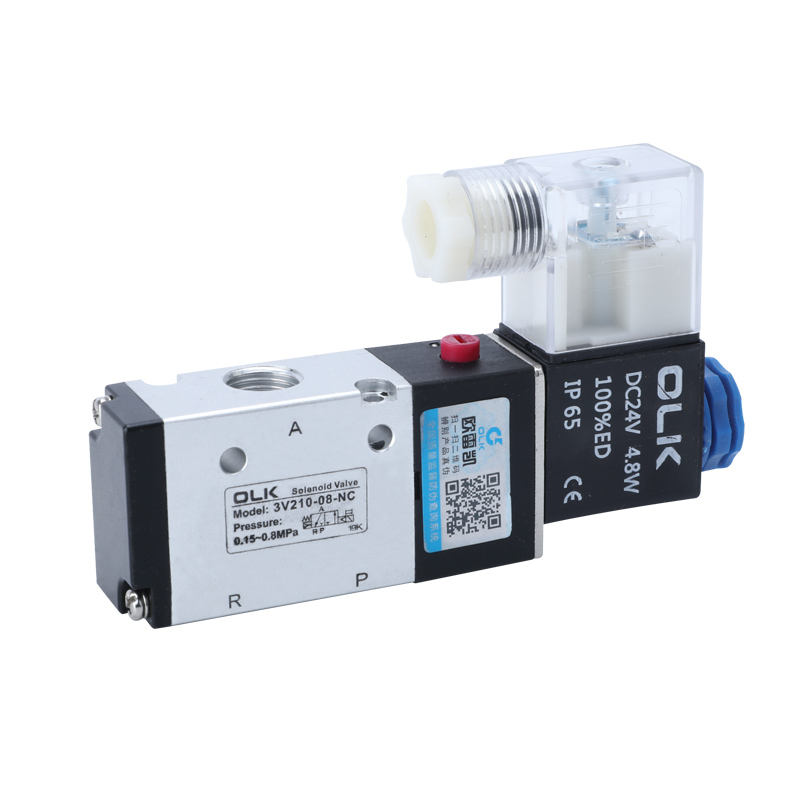

3v Solenoid vlave |
|

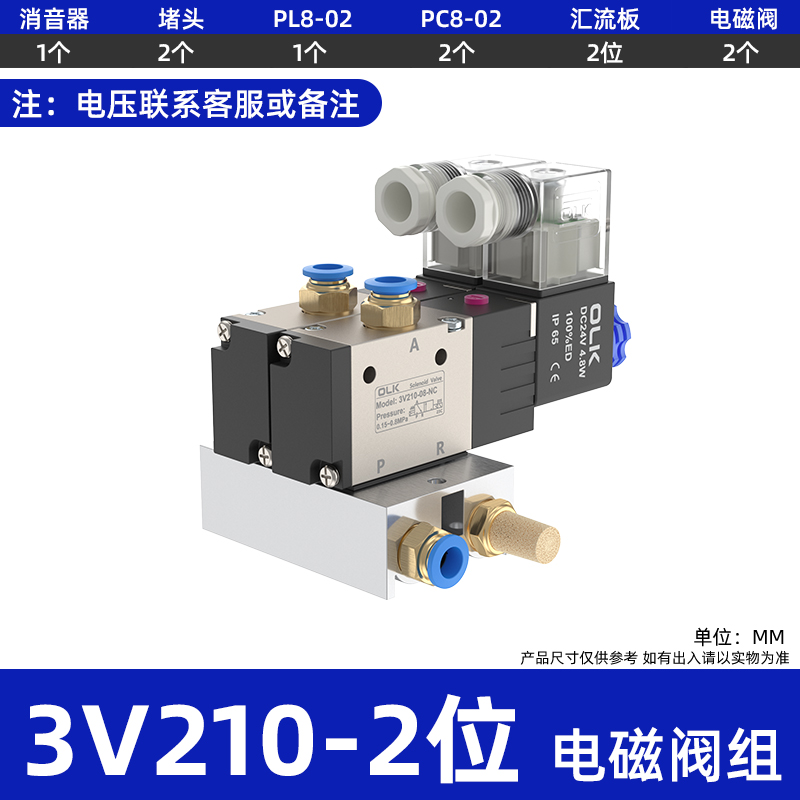

3V110-2F 3V210-2F 3V310-2F |
1 |
2 |
1 |
2 |
2 |
2 |
|
3V110-3F 3V210-3F 3V310-3F |
1 |
2 |
1 |
3 |
3 |
3 |
|
3V110-4F 3V210-4F 3V310-4F |
1 |
2 |
1 |
4 |
4 |
4 |
|
3V110-5F 3V210-5F 3V310-5F |
1 |
2 |
1 |
5 |
5 |
5 |
|
3V110-6F 3V210-6F 3V310-6F |
1 |
2 |
1 |
6 |
6 |
6 |
|

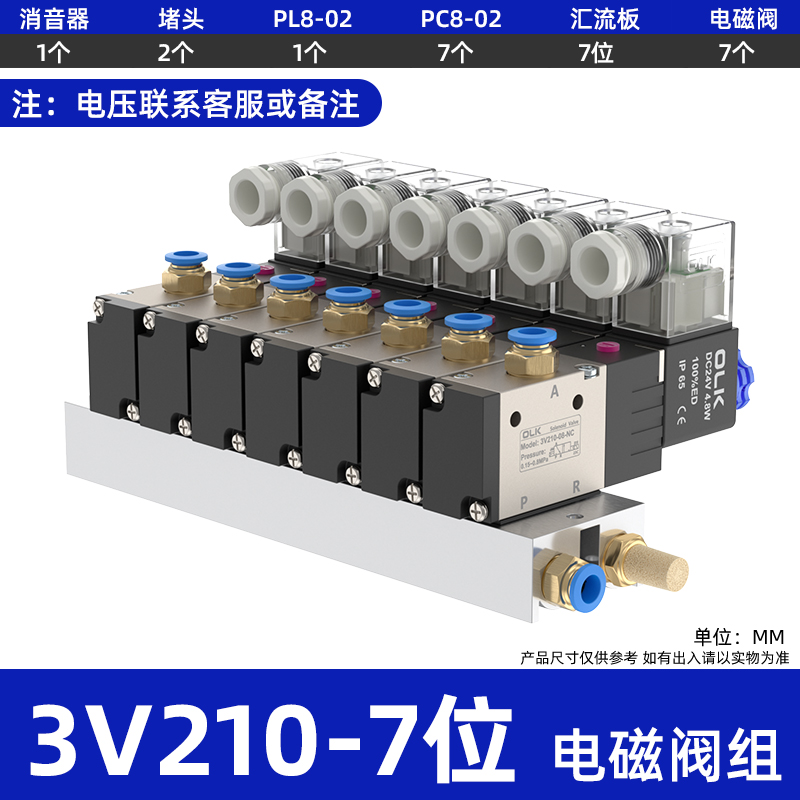

3V110-7F 3V210-7F 3V310-7F |
1 |
2 |
1 |
7 |
7 |
7 |
|

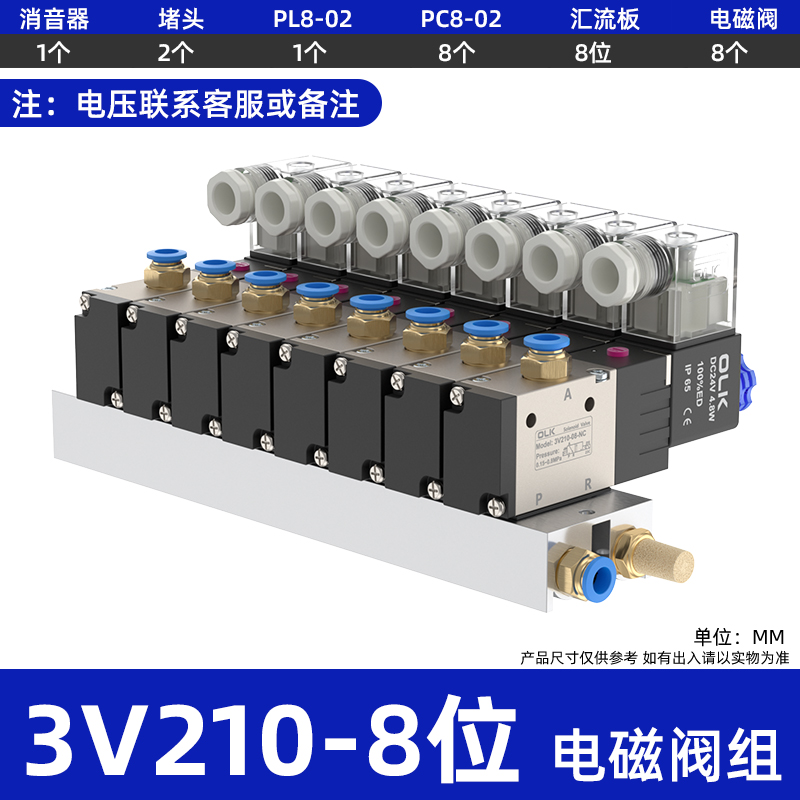

3V110-8F 3V210-8F 3V310-8F |
1 |
2 |
1 |
8 |
8 |
8 |
|
3V110-9F 3V210-9F 3V310-9F |
1 |
2 |
1 |
9 |
9 |
9 |
|

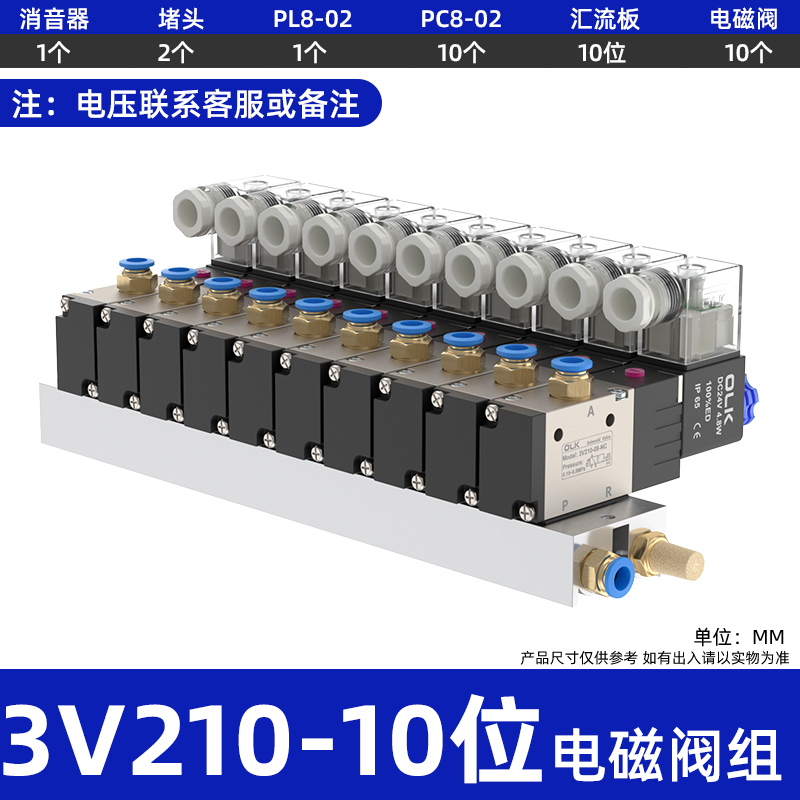

3V110-10F 3V210-10F 3V310-10F |
1 |
2 |
1 |
10 |
10 |
10 |
3V 3v-manifold valve General parameters data:
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Pilot type |
|
number of positions |
Two position three way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0.15∼0.8(21~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Body material |
aluminum alloy |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Class B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
|
model |
Port diameter |
Working temperature °C |
MAX operating frequency |
Flow cross-sectional area mm² (CV value) |
power consumption |
|
3V110-M5 |
M5 |
-20∼70 |
5 times/second |
5.5(0.31) |
AC: 3VA DC: 3W |
|
3V120-M5 |
M5 |
-20∼70 |
5 times/second |
5.5(0.31) |
AC: 3VA DC: 3W |
|
3V110-06 |
G1/8 |
-20∼70 |
5 times/second |
12.0(0.67) |
AC: 3VA DC: 3W |
|
3V120-06 |
G1/8 |
-20∼70 |
5 times/second |
12.0(0.67) |
AC: 3VA DC: 3W |
|
3V210-06 |
Intake=outlet=G1/8 |
-20∼70 |
5 times/second |
14.0(0.78) |
AC: 6VA DC: 4.8W |
|
3V220-06 |
Intake=outlet=G1/8 |
-20∼70 |
5 times/second |
14.0(0.78) |
AC: 6VA DC: 4.8W |
|
3V210-08 |
Intake=outlet=G1/4 |
-20∼70 |
5 times/second |
16.0(0.89) |
AC: 6VA DC: 4.8W |
|
3V220-08 |
Intake=outlet=G1/4 |
-20∼70 |
5 times/second |
16.0(0.89) |
AC: 6VA DC: 4.8W |
|
3V310-08 |
Intake=outlet=G1/4 |
-20∼70 |
5 times/second |
25.0(1.39) |
AC: 6VA DC: 4.8W |
|
3V320-08 |
Intake=outlet=G1/4 |
-20∼70 |
5 times/second |
25.0(1.39) |
AC: 6VA DC: 4.8W |
|
3V310-10 |
Intake=outlet=G3/8 |
-20∼70 |
5 times/second |
30.0(1.67) |
AC: 6VA DC: 4.8W |
|
3V320-10 |
Intake=outlet=G3/8 |
-20∼70 |
5 times/second |
30.0(1.67) |
AC: 6VA DC: 4.8W |
|
3V410-15 |
Intake=outlet=G1/2 |
-5∼60 |
3 times/second |
50.0(2.79) |
AC: 6VA DC: 4.8W |
|
3V420-15 |
Intake=outlet=G1/2 |
-5∼60 |
3 times/second |
50.0(2.79) |
AC: 6VA DC: 4.8W |
