3v300 Series Solenoid Valve 3 Way

Model:3V300

OLK is a professional 3v300 Series Solenoid Valve 3 Way manufacturers and suppliers in China, you can rest assured to wholesale and customized 3V300 series valve from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

OLK professional manufacture 3position 2 way internal pilot type air solenoid valve, 3v300 Series Solenoid Valve 3 Way pneumatic control solenoid valve used by aluminum alloy .The material is corrosion-resistant and high-temperature-resistant.

It can be matched with industrial automation scenarios, such as fluid control and conversion on various automated production lines, pneumatic equipment, medical devices, etc.

Ordering Code

3V	3	10	10	NO
Model	Code	valve type	port size	Action type
3V:3/2way solenoid valve	3:300 series	10:single solenoid 5/2 way	08:G1/4	NC:Normally closed
		20:double solenoid valve 5/2 way	10:G3/8	NO:Normally open

3V300 series solenoid valve 3 way parameters data:

Model	3V310-08	3V320-08	3V310-10	3V320-10
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	Internal Pilot Type
port size	Inlet=Outlet=G1/4		Inlet=Outlet=G3/8
Effective cross-sectional area	25mm²（Cv=1.39）		30.0mm²（Cv=1.67）
Positions	3/2 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Woking Pressure	‘-20-70 ℃
Body Material	Aluminum Alloy
Lubrication	No Need

3/2 way 3V300 solenoid valve LINE /DIN type voltage choose

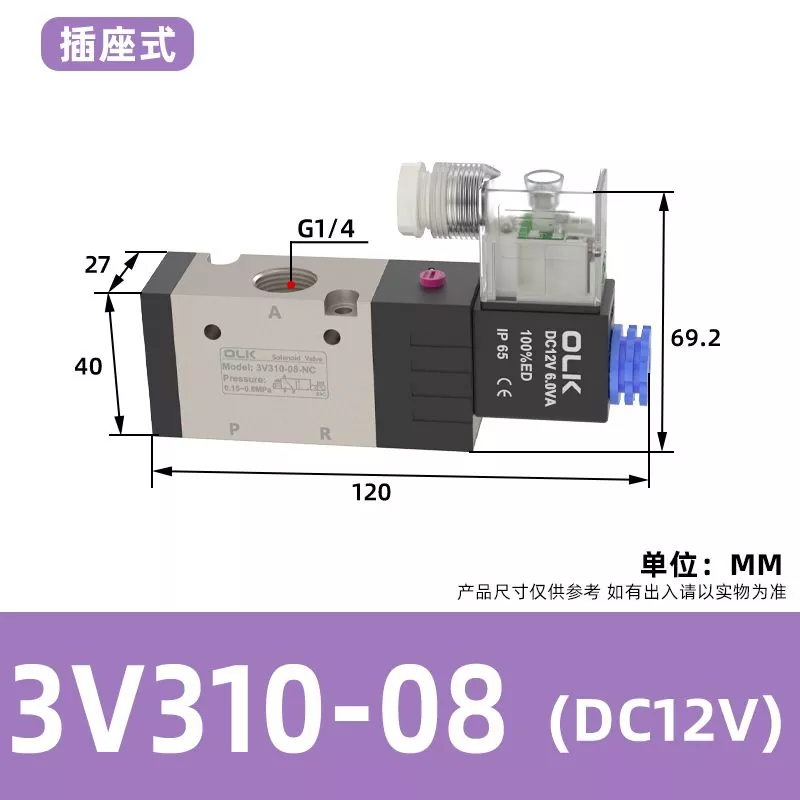

3V310-08 AC24V	3V310-08 AC110V	3V310-08 AC220V	3V310-08 DC220V	3V310-08 DC24V

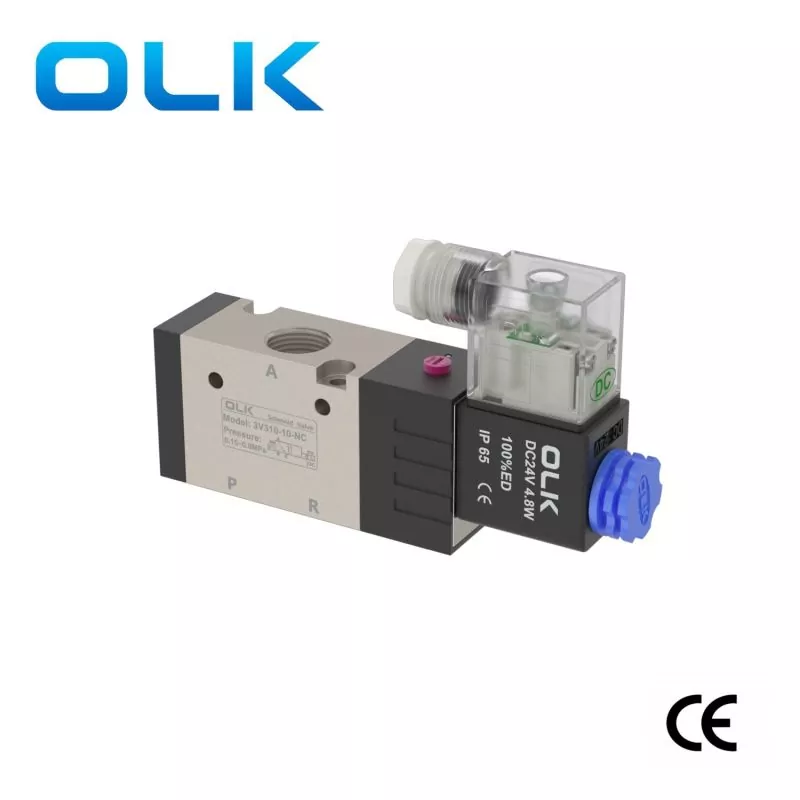

3V310-10 AC24V	3V310-10 AC110	3V310-10 AC220V	3V310-10 DC220V	3V310-10 DC24V
3V320-08 AC24V	3V320-08 AC110V	3V320-08 AC220V	3V320-08 DC220V	3V320-08 DC24V

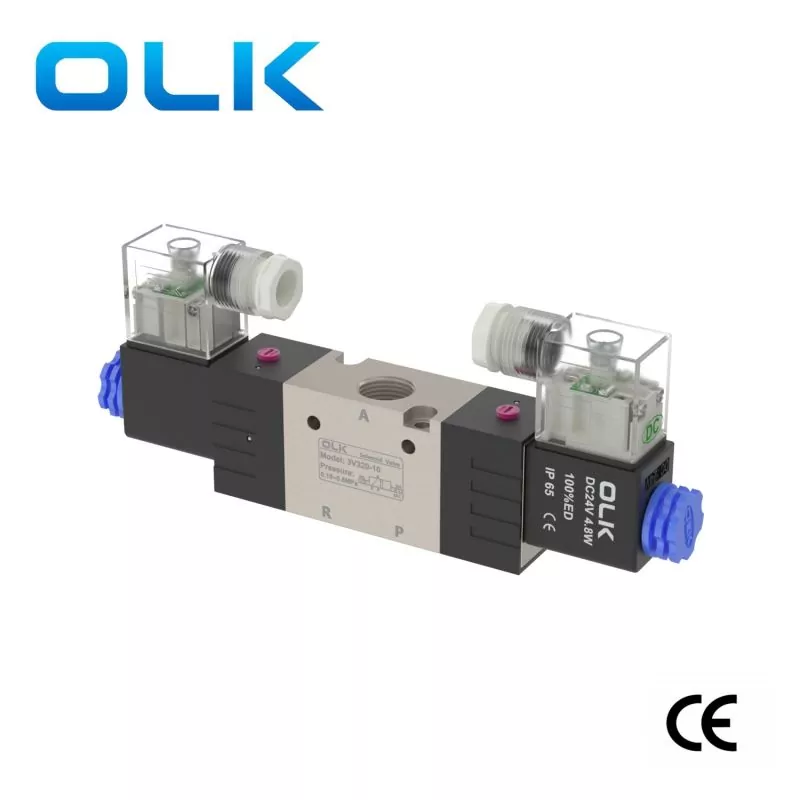

3V320-10 AC24V	3V320-10 AC110V	3V320-10 AC220V	3V220-10 DC220V	3V320-10 DC24V
