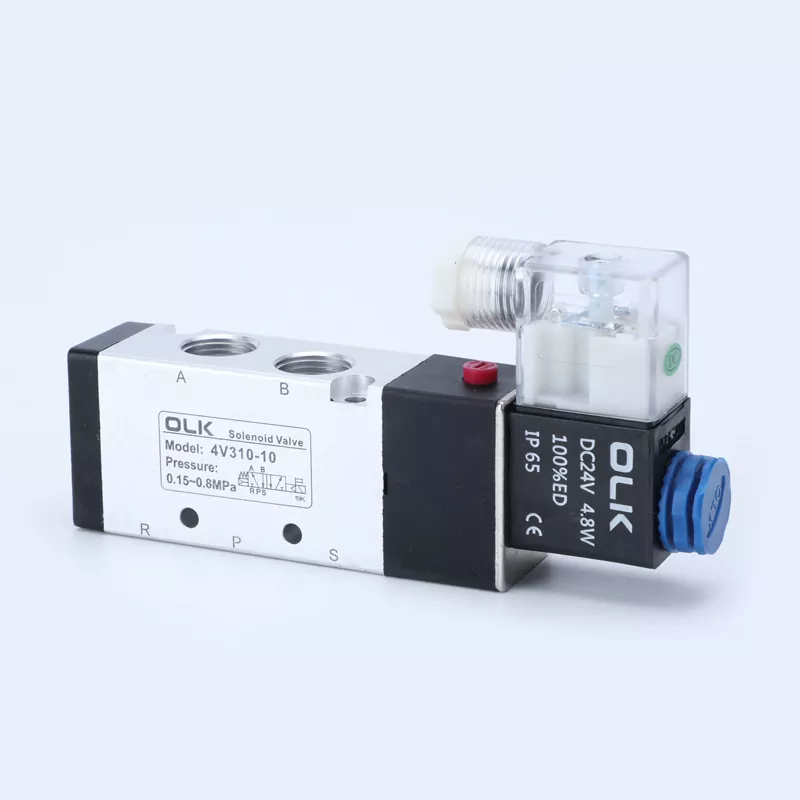

4V300 Solenoid Valve 5 Way

You can rest assured to buy 4V300 series from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

OLK 4V300 series, 5/2way,5/3 way pneumatic solenoid valve.The inner wall of the 4V300 series solenoid valve is smooth, the sealing ring is durable and wear-resistant, and it can be used for a longer time. The low resistance solenoid valve sealing ring has high frequency stability.

Durable and not easily damaged/Energy saving and low loss/Suitable for various occasions

Ordering Code

4V	3	10	10	AC110V
Model	Code	valve type	port size	voltage	Explosion proof coil

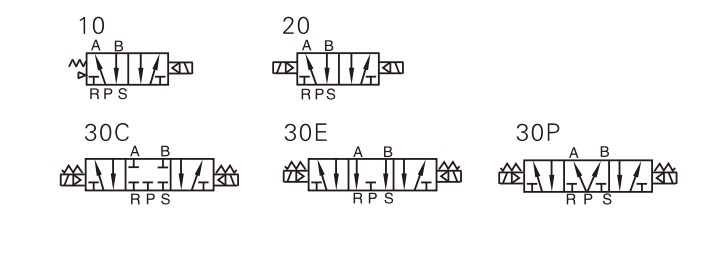

4v:sports2(3)position solenoid valve	3:300 series	10:single solenoid 5/2 way	08:G1/4	AC220V	Non:Din type
		20:double solenoid valve 5/2 way	10:G3/8	DC24V	I:Line type
		30C:double solenoid vlave5/3way closed center		AC110V
		30E:double solenoid vlave5/3way exhaust center		AC24V
		30P:double solenoid valve 5/3 way pressure center		DC12V

4V300 solenoid valve 5 wayparameters data:

Model	4v310-08 4v320-08	4V330-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	Internal Pilot Type
port size	Inlet=Outlet=Exhaust Port=G1/4		Inlet=Outlet==G1/8 Exhaust Port=G1/4
Effective cross-sectional area	25mm²（Cv=1.4）	18.0mm²（Cv=1）	30.0mm²（Cv=1.68）	18.0mm²（Cv=1.0）
Positions	5/2 Port	5/3 Port	5/2 Port	5/2 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Working Pressure	‘-20-70℃
Body Material	Aluminum Alloy
Lubrication	No Need
Max.Operating Frequency	5 times/second	3 times/second	5 times/second	3 times/second
Weight	4V310-08:310g 4V320-08:400g	450 g	4V310-10:310g 4V320-10:400g	450 g
