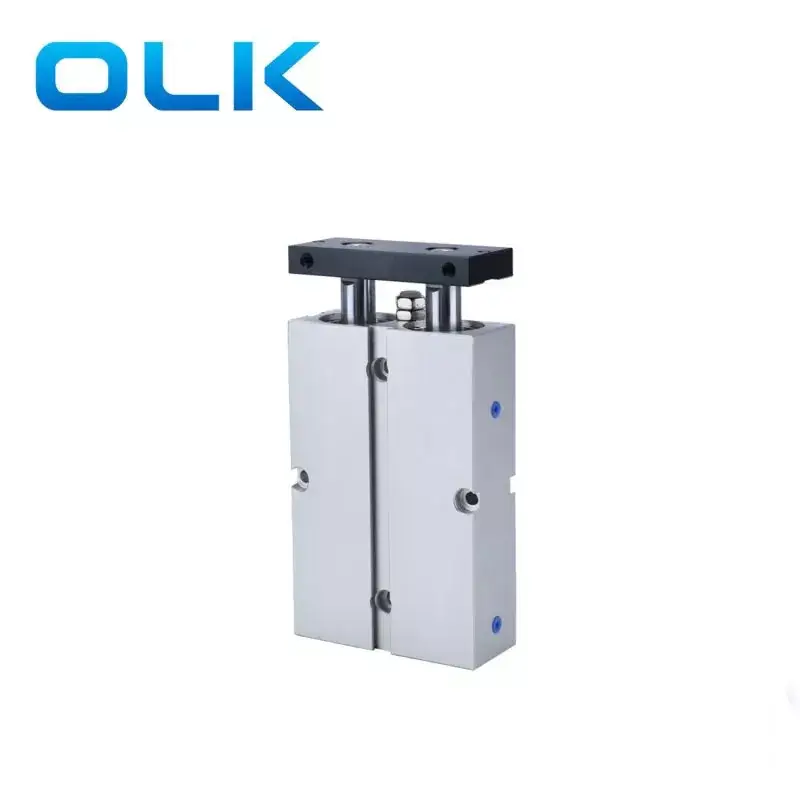

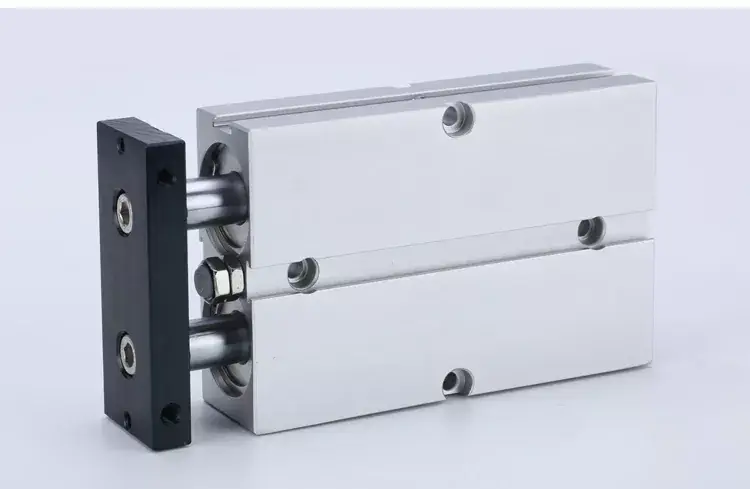

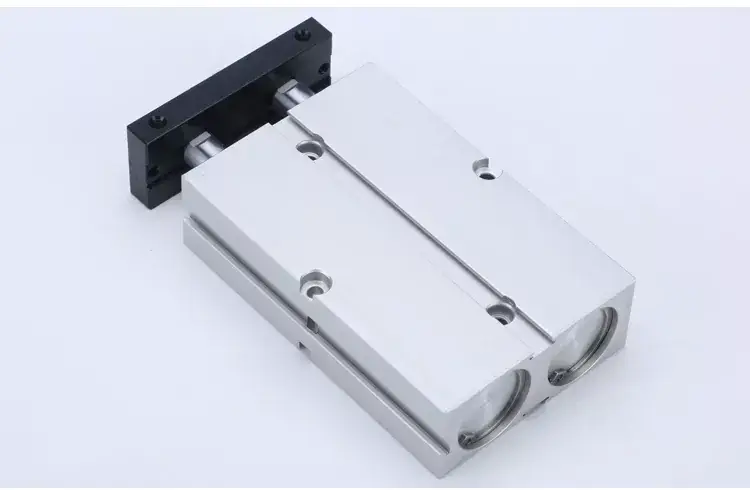

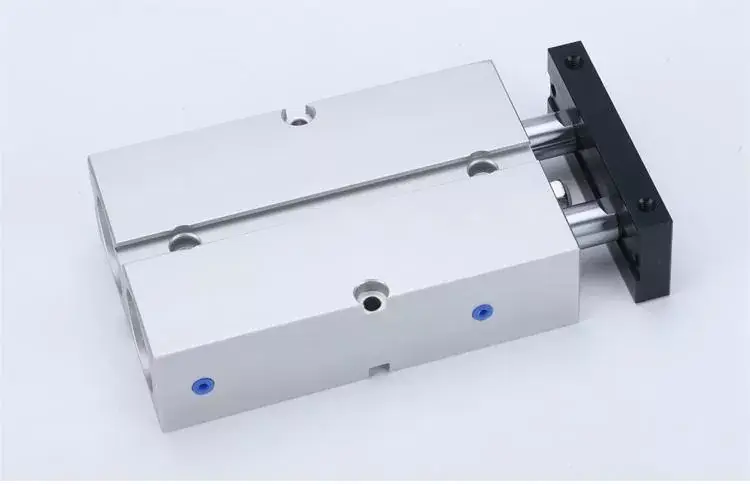

TN Series Dual Axis Cylinder

Our factory specializes in manufacturing of TN Series Dual Axis Cylinder. Welcome to buy TN Series Dual Axis Cylinder from OLK. Every request from customers is being replied within 24 hours. The Ouleikai (OLK) TN dual axis cylinder enables simultaneous control of multiple axes, facilitating complex motion paths and multi-axis collaborative work.

Compared to using multiple single-axis cylinders separately, the TN dual axis cylinderintegrates multiple actuation axes, with a space-saving embedded body mounting form that is more compact.

OLK pneumatic suppliers with advanced design and optimized control algorithms, it achieves efficient energy utilization and energy-saving effects, reducing energy consumption and operating costs.

The TN dual axis cylinder's fixed panel has mounting holes on three sides, facilitating multi-position loading. It ensures precise synchronous control of multiple axes, ensuring synchronous motion of each axis in complex motion paths.

OLK efficient energy utilization TN Series Dual axis cylinder  Product characteristics

1. Complies with company standards.

2. Embedded body installation for space-saving.

3. Possesses certain bending and torsional resistance, capable of withstanding lateral loads.

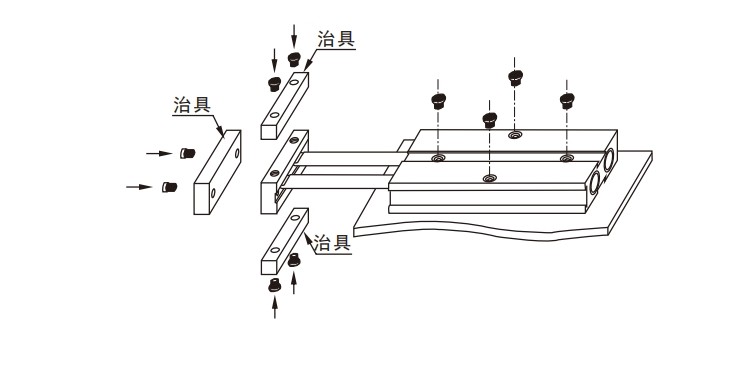

4. Mounting holes on three sides of the fixed plate facilitate multi-position mounting.

5. Adjustable front-end collision pad on the body allows for cylinder stroke adjustment and impact relief.

6. This series of cylinders are standardly equipped with magnetic attachments, with non-magnetic options available.

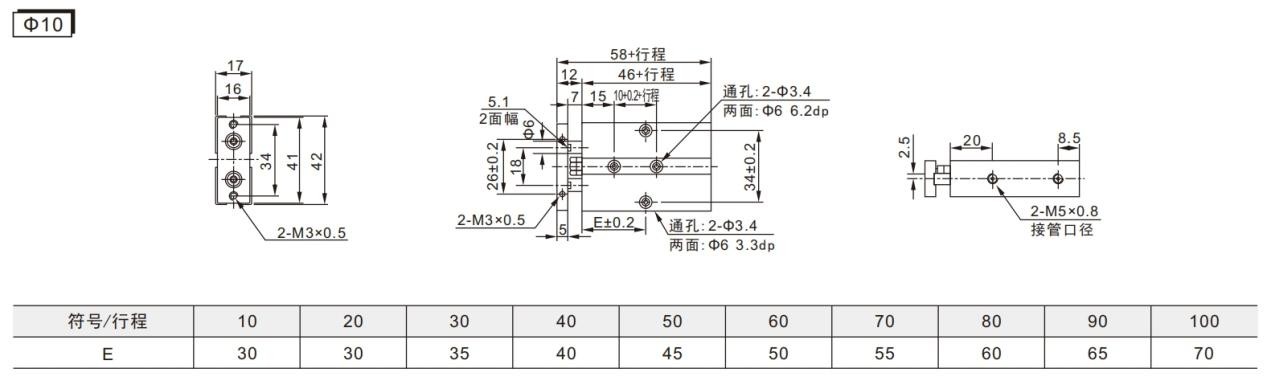

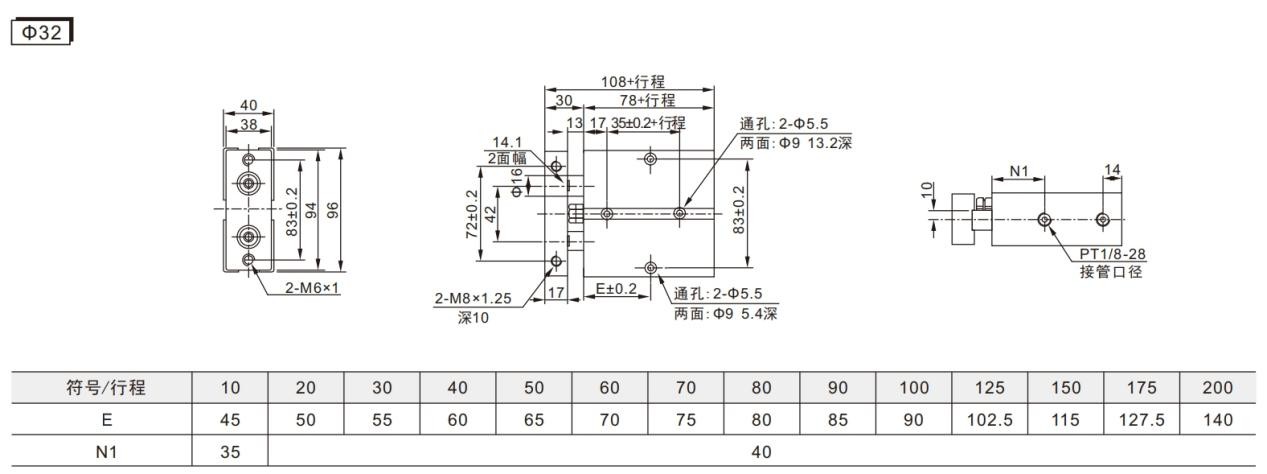

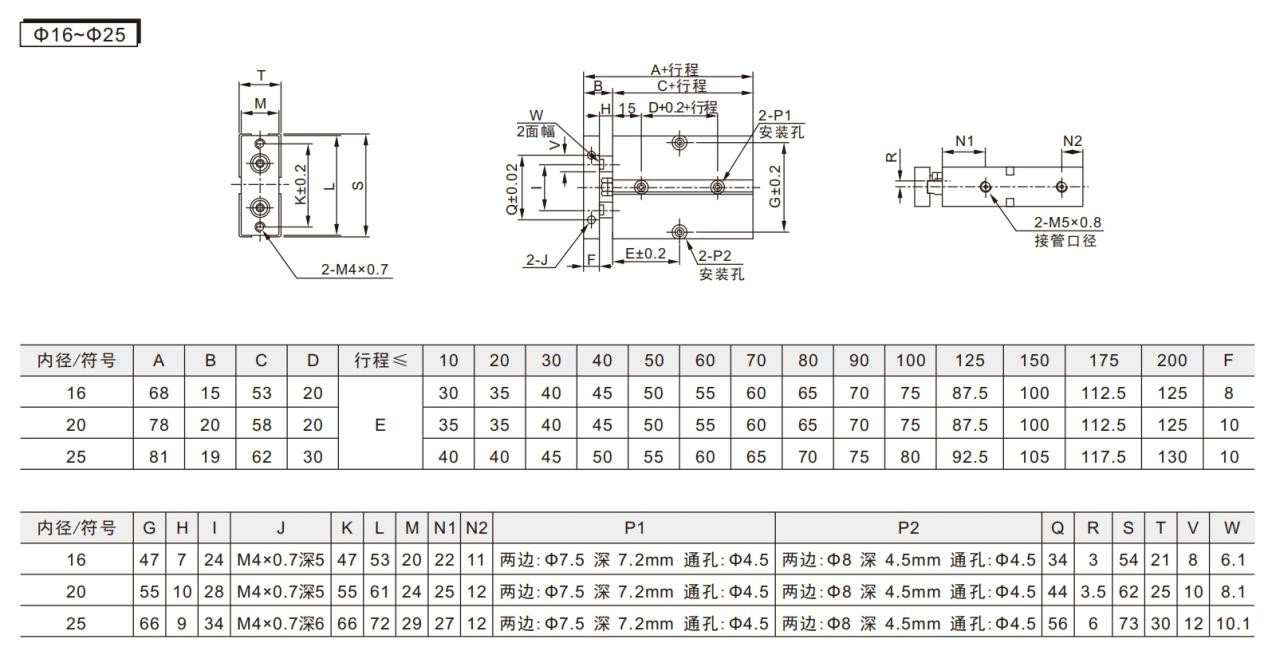

TN Series Dual axis cylinder  STANDARD SPECIFICATION:

The non-rotating accuracy refers to the angle the cylinder fixed plate can rotate when the cylinder is in the fully retracted state.

The takeover thread types available are NPT and G.

PS: All TN Series Dual axis cylinder with magnets.
