3v400 Series Solenoid Valve 3 Way

Model:3V400

OLK, a reputable manufacturer in China, is willing to offer you 3v400 Series Solenoid Valve 3 Way. We promise to provide you with the best after-sale support and prompt delivery, please contact with us.

Send Inquiry

Product Description

OLK 3 position 2 way solenoid valve have four model to choose,internal pilot type action mode and no need grease.PT thread and NPT thread two types of thread can be made.IP65(DIN40050) protection level and B-grade heat resistance level.

3v400 Series Solenoid Valve 3 Way can help you use a single action cylinder in harsh working environments.

Ordering Code

3V	4	10	15
Model	Code	valve type	port size	Action type

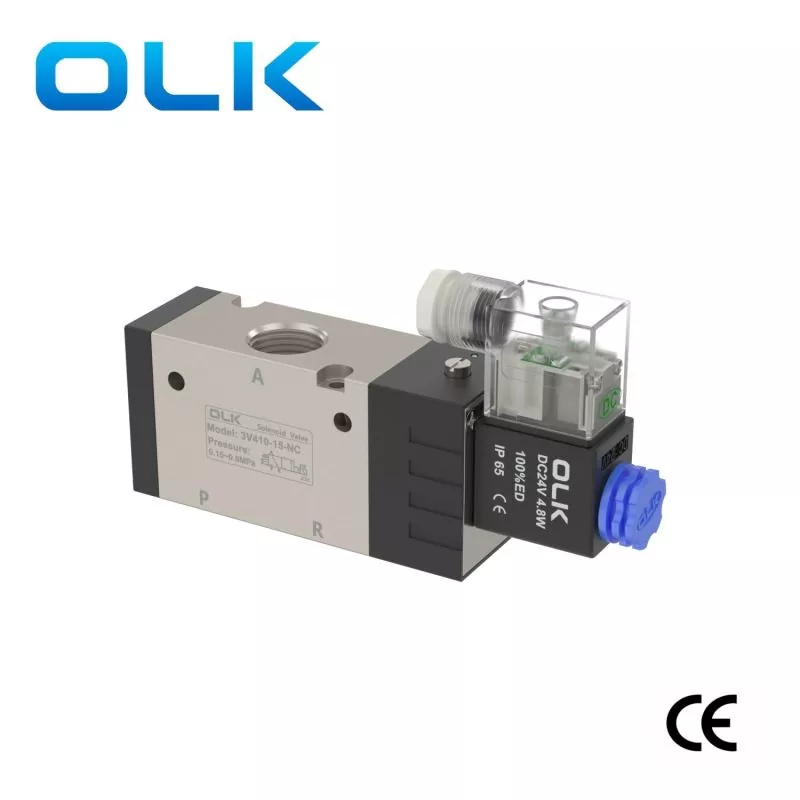

3V:3/2way solenoid valve	4:400 series	10:single solenoid valve 5/2 way	15:G1/2	NC:Normally closed

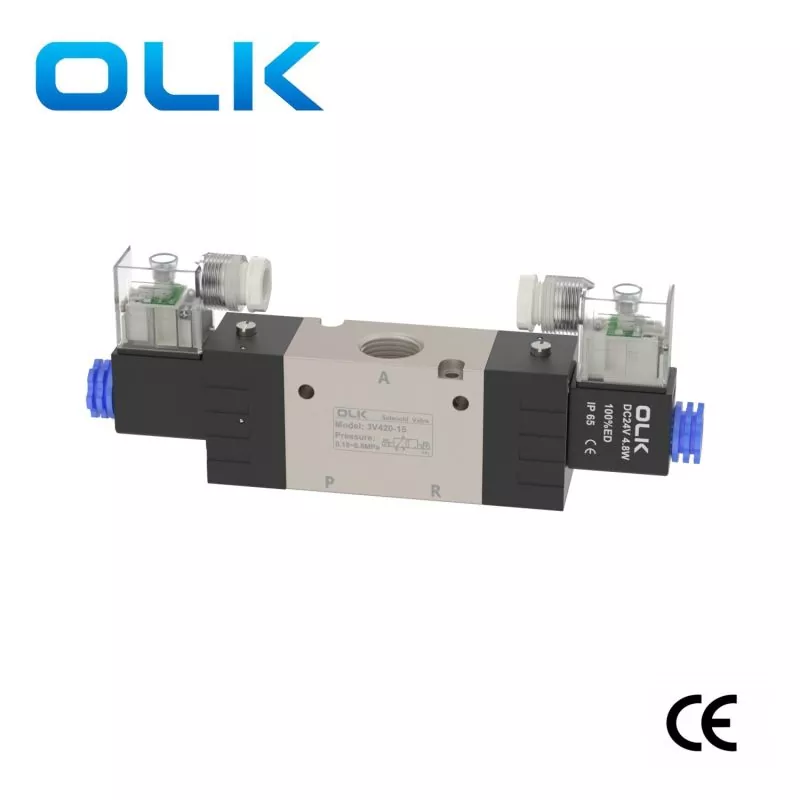

		20:double solenoid valve 5/2 way		NO:Normally open

3v400 Series Solenoid Valve 3 Way parameters data:

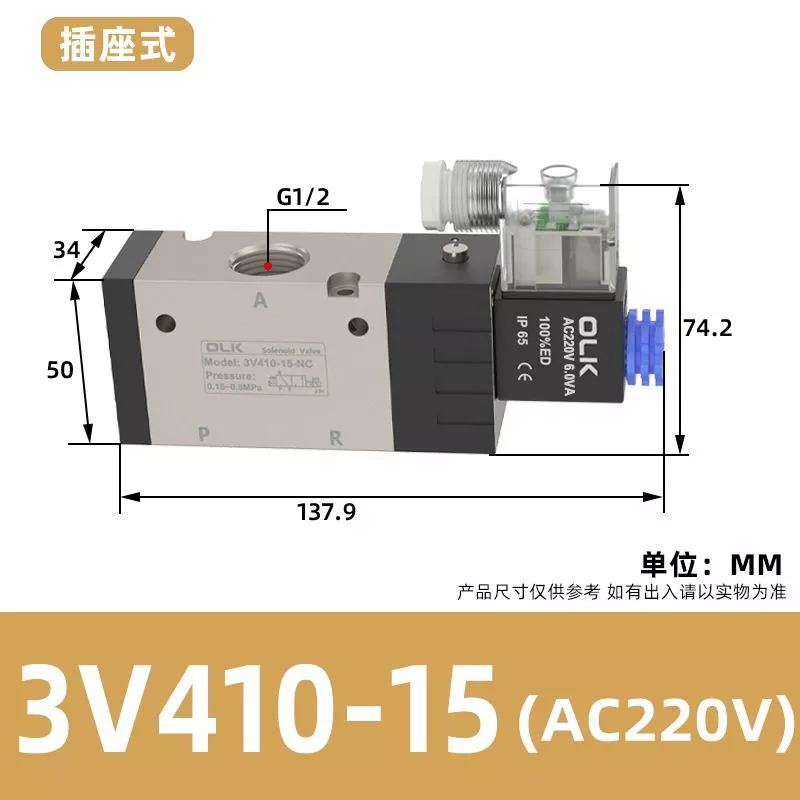

Model	3V410-15	3V420-15
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	Internal Pilot Type
port size	Inlet=Outlet=G1/2
Effective cross-sectional area	50mm²（Cv=2.79）
Positions	3/2 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Woking Pressure	‘5-60 ℃(23-140° F)
Body Material	Aluminum Alloy
Lubrication	No Need
Max.Operating Frequency	3 times/second
Insulation Grade	B Level
Min.Excitation Time	0.05 Sec
