4V400 Solenoid Valve 5 Way

As a professional 4V400 series manufacture, you can rest assured to buy 4V400 series single acting or double acting from our factory and Ouleikai（OLK） will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

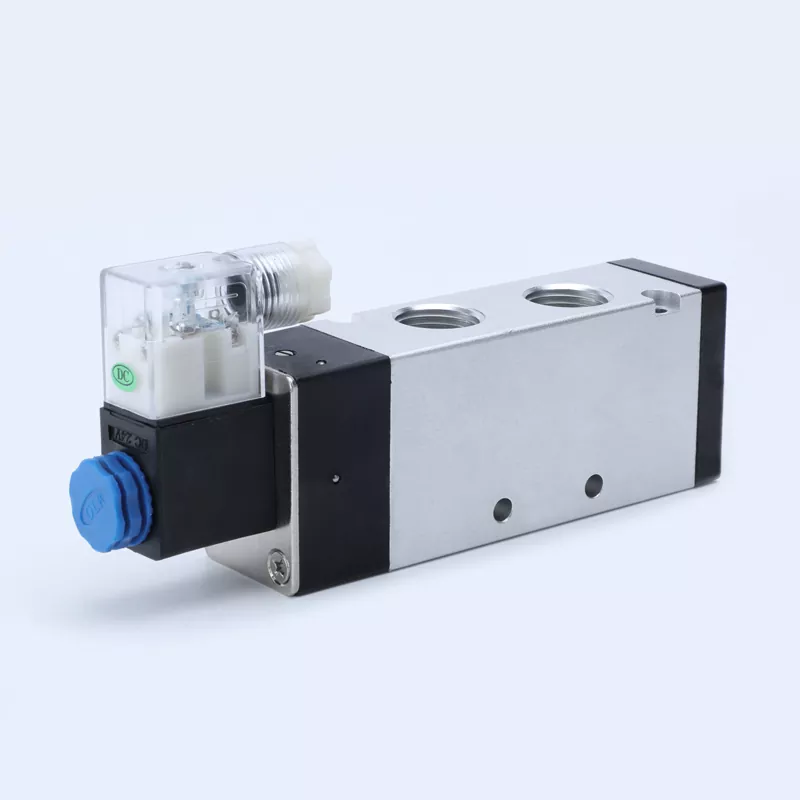

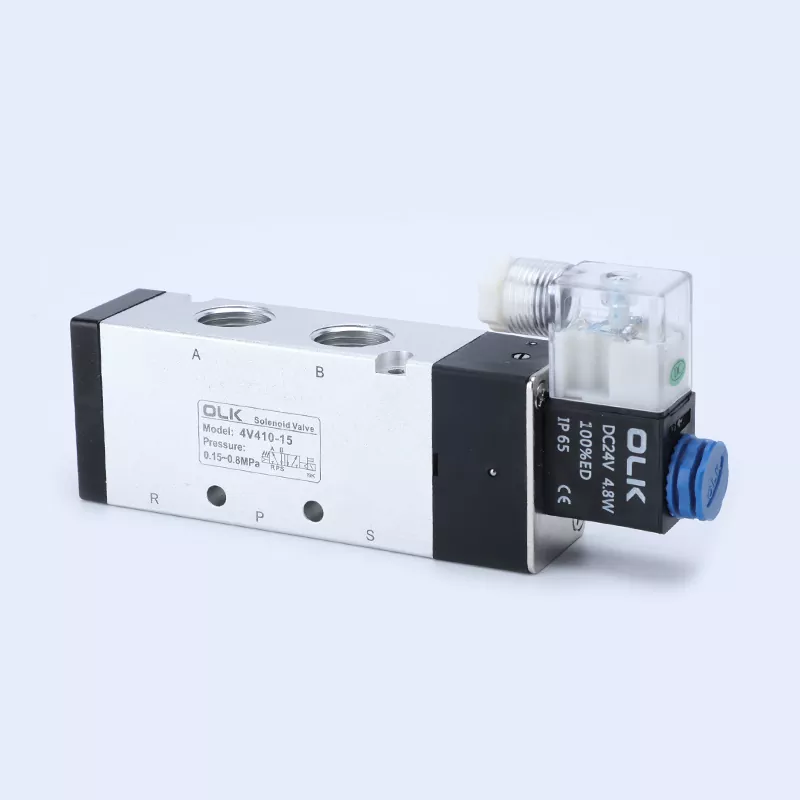

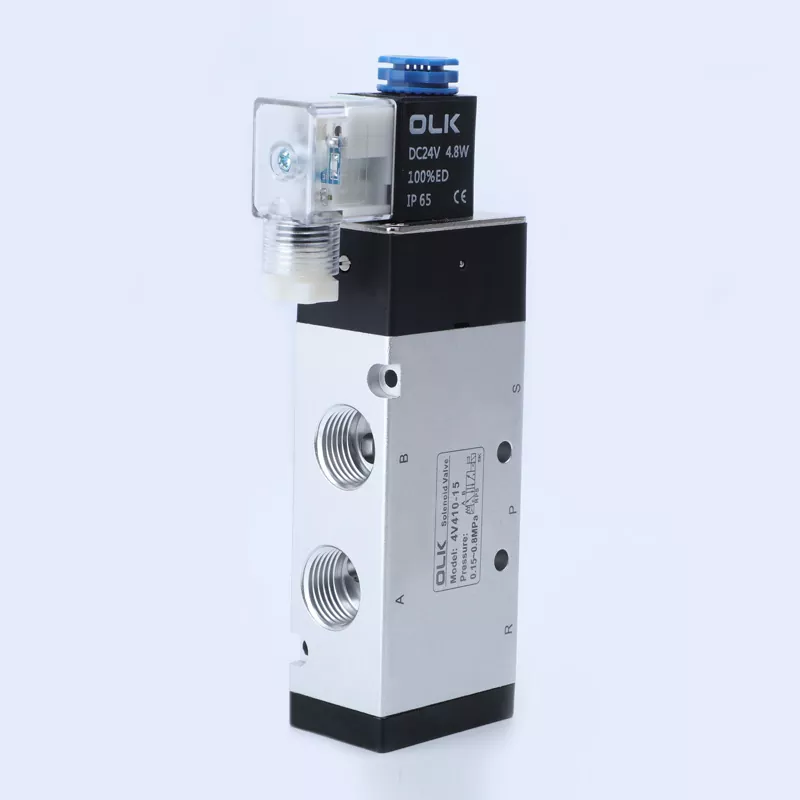

OLK 4V400 series, 2 position 5way or 3 position 5 way pneumatic solenoid valve, The size of the 4V400 series solenoid valve is the largest model. The interface specification is usually 1/2 ". The surface is made of high-quality aluminum alloy raw material, which runs smoothly and responds quickly. It has strong stability and precise polishing treatment without wear marks. It uses sufficient pure copper coils, which are not easy to overheat and have a longer and more durable service life.

A system that is suitable for high traffic demand through the highest traffic. Suitable for scenarios such as heavy equipment and large pneumatic systems.

Ordering Code

4V	4	10	15	AC110V
Model	Code	valve type	port size	voltage	Explosion proof coil
4v:sports2(3)position solenoid valve	4:400 series	10:single solenoid 5/2 way	15:G1/2	AC220V	Non:Din type

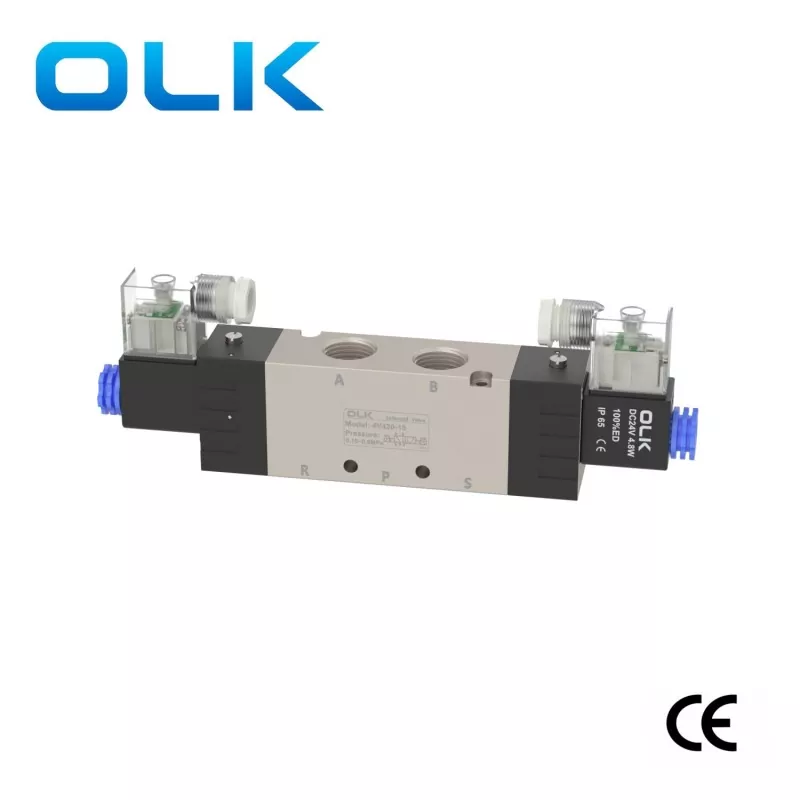

		20:double solenoid valve 5/2 way		DC24V	I:Line type
		30C:double solenoid vlave5/3way closed center		AC110V
		30E:double solenoid vlave5/3way exhaust center		AC24V
		30P:double solenoid valve 5/3 way pressure center		DC12V

4V400 solenoid valve 5 wayparameters data:

Model	4V410-15	4V420-15	4V430C-15	4V430E-15	4V430P-15
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	Internal Pilot Type
port size	Inlet=Outlet=Exhaust Port=G1/2
Effective cross-sectional area	50.0mm²（Cv=2.79）		30.0mm²（Cv=1.68）
Positions	5/2 Port		5/3 Port
Pressure range	0.15-0.8 MPa (21-114psi)
Proof pressure	1.5MPa (215psi)
Working Pressure	‘-20-70℃
Body Material	Aluminum Alloy
Lubrication	No Need
Max.Operating Frequency	3 times/second
Weight	590g	720g	770g
