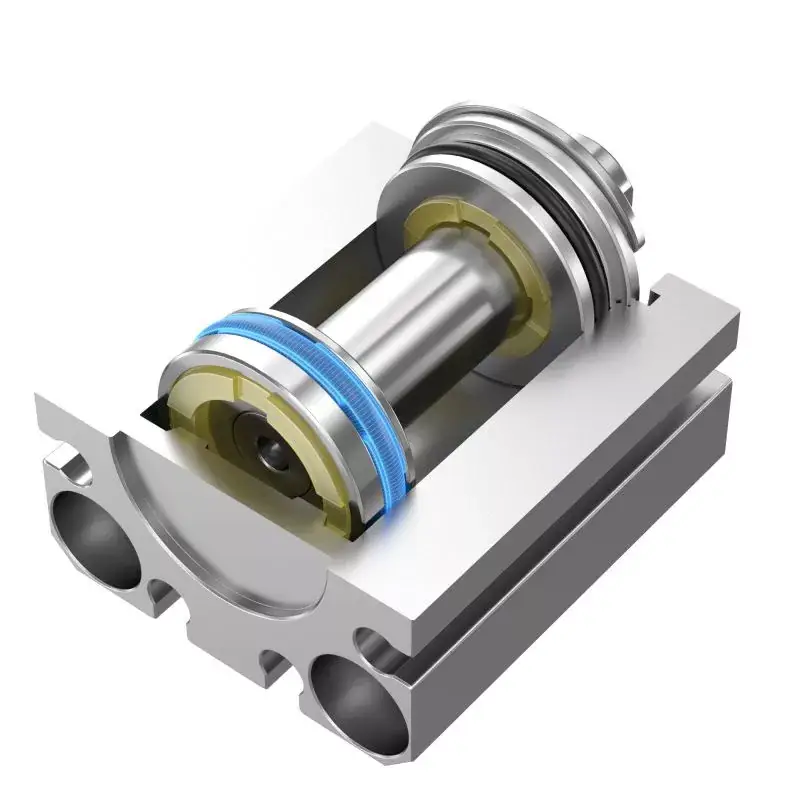

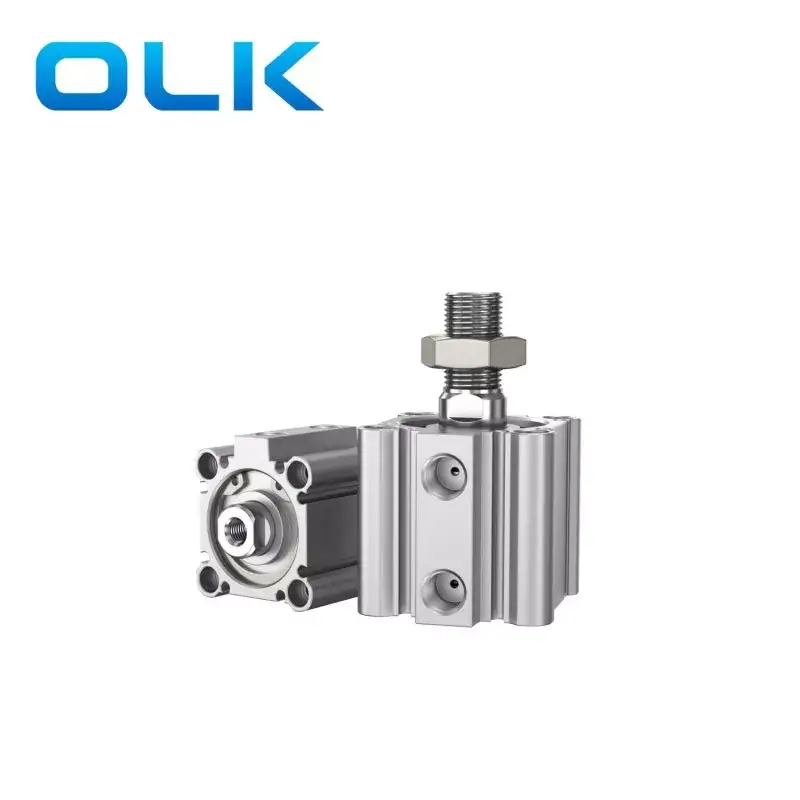

OLK is one of the famous China CQ2 Series Thin Cylinder manufacturer and supplier. Ouleikai (OLK) CQ2 Series Thin Cylinder feature cylinder bodies with hard oxidation that are not easily deformed and offer high-speed movement.

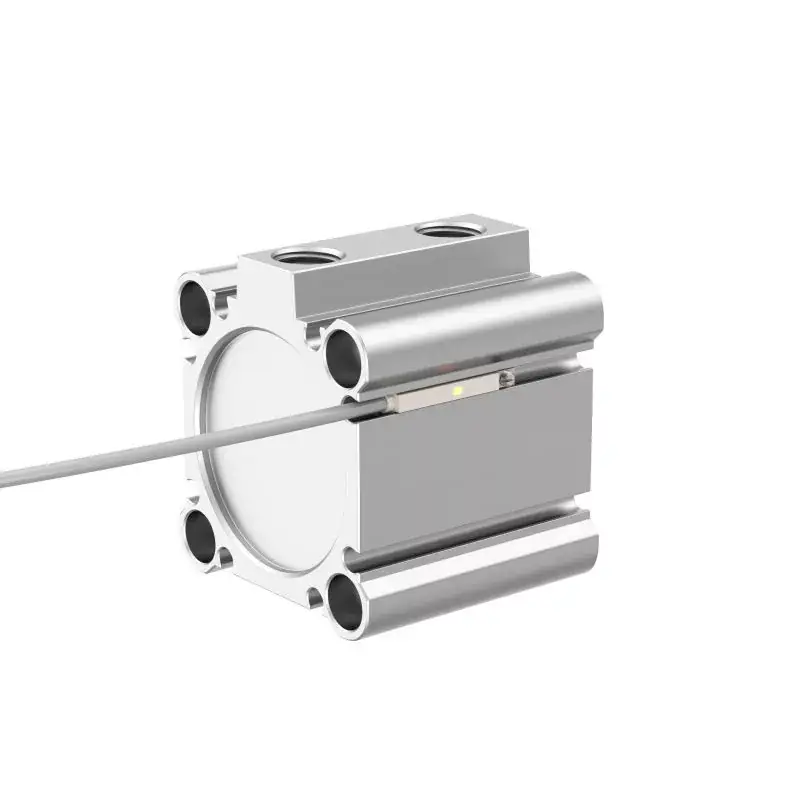

The CQ2 thin cylinder provides various mounting options, including fixed bracket installation and side mounting, suitable for different installation requirements. It is compatible with magnetic switches like CS1-H/D-A93.
|
Bore Size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Acting Mode |
Double Acting/Single Acting:Spring pressed back, spring pressed out |
|||||||||
|
Working medium |
Cleaned Air |
|||||||||
|
MIN.Working Pressure |
0.25 |
0.18 |
0.17 |
0.15 |
0.13 |
- |
||||
|
0.07 |
0.05 |
|||||||||
|
MAX.Working Pressure |
1.0 MPa |
|||||||||
|
Environment and fluid temperature |
without Magnetic switch:-10℃--70℃；with Magnetic switch:-10℃--60℃ |
|||||||||
|
Buffering Mode |
- |
|||||||||
|
Piston velocity |
50--500mm/s |
|||||||||
|
Port size |
M5X0.8 |
1/8. |
1/4. |
3/8. |
||||||
