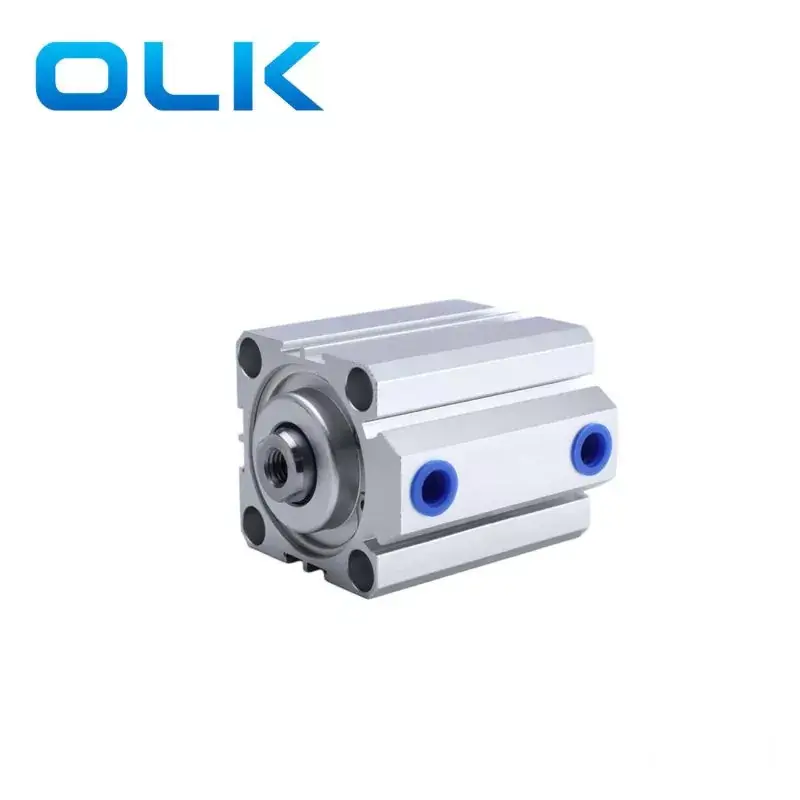

The Ouleikai (OLK) SDA series thin cylinder features an ultra-thin design, making it suitable for applications with limited space, allowing for installation and operation in narrow spaces. Despite its small size, the SDA thin-type cylinder exhibits excellent performance, including rapid response, stable operation, and high-precision positioning capabilities.
The thin cylinder body is equipped with magnetic switch slots around it, making it convenient to install proximity switches. With functions such as linear pushing and rotation, it has strong applicability and can be used for component control in electronic devices, such as open/close control of CD drives and transmission control in printing equipment.
The OLK pneumatic company produced SDA series ultra-thin cylinder operates stably for a long time without the need for frequent maintenance or replacement.
CHINA OULEIKAI PNEUAMTIC stable operation SDA Series Thin Cylinder Product characteristics
1. Complies with company standards.
2. The cylinder body and rear cover, as well as the piston and piston rod, are riveted for a compact and reliable construction.
3. The cylinder bore undergoes rolling treatment followed by hard oxidation processing, ensuring wear resistance and durability.
4. The piston seal adopts a special double-sided sealing structure, compact in size, with oil storage function.
5. Compact structure effectively saves installation space.
6. Magnetic switch grooves are provided around the cylinder body for convenient installation of proximity switches.
7. Various specifications of cylinder types are available for selection.
|
Bore Size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Acting Mode |
Double Acting |
|||||||||
|
Single move out / Single acting introduction |
- |
|||||||||
|
Working medium |
Cleaned Air |
|||||||||
|
Working Pressure |
Double Acting:0.1-1.0 MPa (14-145Psi) |
|||||||||
|
Single Acting:0.2-1.0 MPa (28-145Psi) |
||||||||||
|
Proof Pressure |
1.5 Mpa (215Psi) |
|||||||||
|
Working Temperature Range |
‘-20-80℃ |
|||||||||
|
Working Speed Range |
Double Acting :30-500 Single Acting:50-500 |
|||||||||
|
Buffering Mode |
crash cushion |
|||||||||
|
Port size |
M5X0.8 |
PT1/8 |
PT1/4 |
PT3/8 |
||||||
