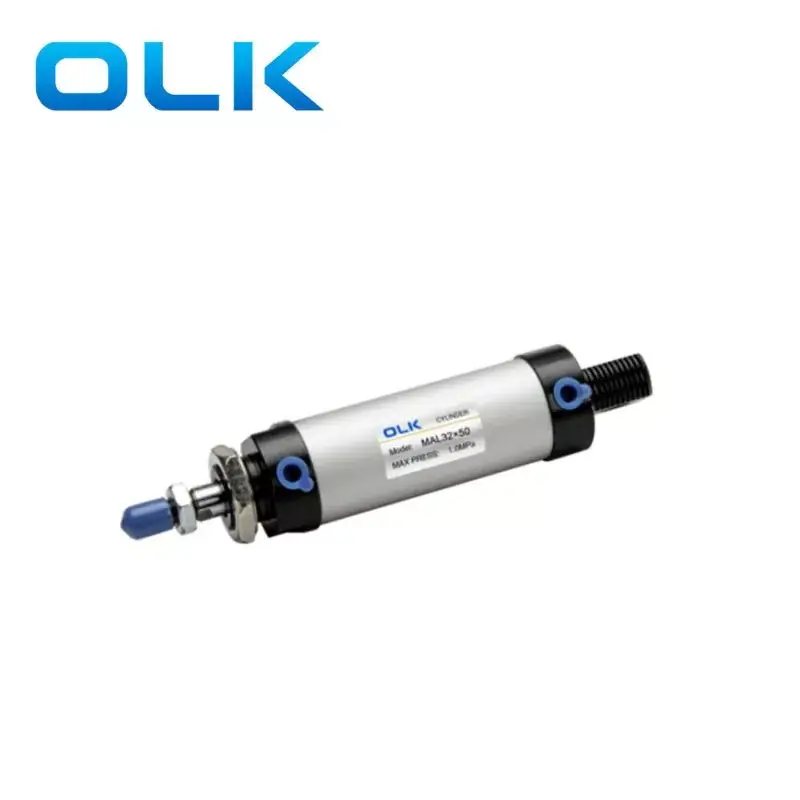

With years of experience in production MAL Series Mini Cylinder, OLK can supply a wide range of MAL Series Mini Cylinder. Ouleikai (OLK) MAL mini cylinders are compact pneumatic actuators. Their small size and lightweight design make them easy to install and transport, reducing equipment load. This is beneficial for energy-saving and efficiency improvement in systems and is suitable for applications with limited space.
OLK MAL mini cylinders offer excellent cost-performance ratio, with moderate pricing that aligns with customers' cost budgets. They come with various mounting options, allowing flexible installation based on actual needs, simplifying the installation process. By default, they do not come with magnets, but magnetic switches like CS1-F/CS1-U can be selected. When paired with magnetic switches, the magnetic version of the cylinder can achieve automation control.
MAL aluminum Slim cylinder symbol:(MAL MALD MALJ Series)

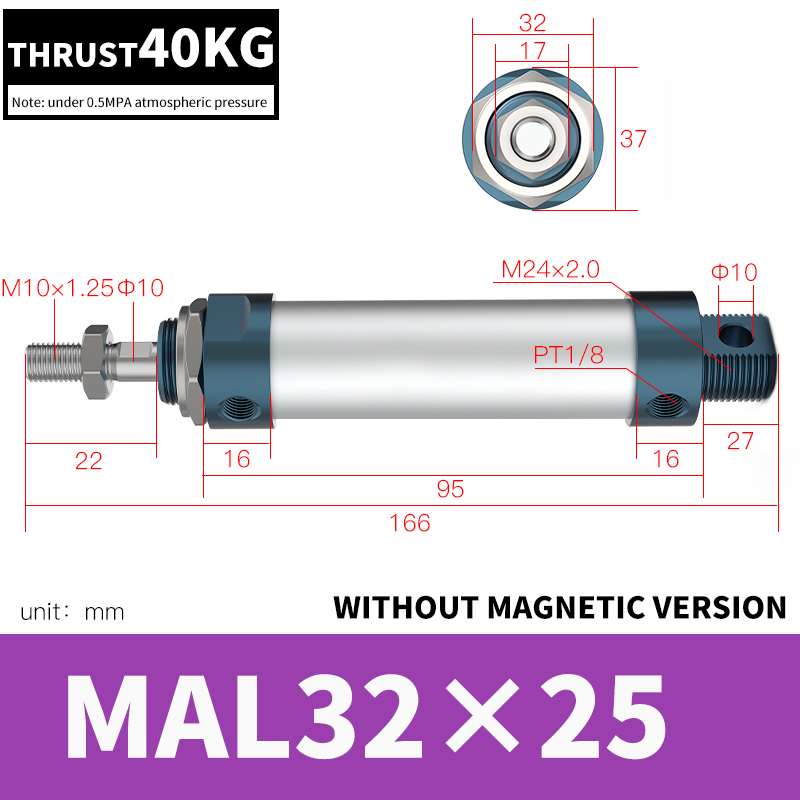

| MAL | 20 | X | 50 | _ | S | _ | CM | |
| Model: | Bore size | Stoke | S:with magnet | Back cover | Mounting | |||
| MAL:mini cylinder(double acting) | CA:Pivot type | Blank: | ||||||
| MSAL:mini cylinder(single acting-push) | CM:Round -end type | FA | ||||||
| MTAL:mini cylinder(single acting-pull) | U:Flat-end type | LB | ||||||
| SDB | ||||||||
| SALJ | 20 | X | 50 | _ | 20 | _ | S | |
| Model: | Bore size | Stoke | Adjustable stroke | S:with magnet | Mounting | |||
| MALD:mini cylinder(double rod) | 10:10mm | Blank: | ||||||
| MALJ:minicylinder(double rod with cushion) | 20:20mm | FA | ||||||
| 30:30mm | LB | |||||||
| 40:40mm | ||||||||
| 50:50mm | ||||||||
| 75:75mm | ||||||||
| 100:100mm | ||||||||

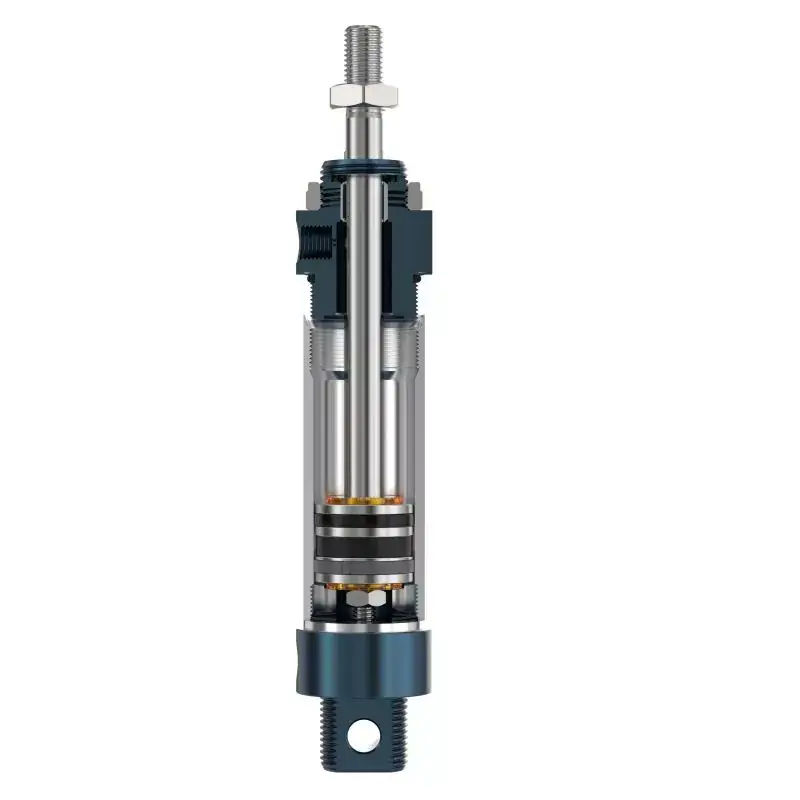

1. Adheres to our company's standards, using aluminum round tube cylinder body.
2. Front and rear covers are threaded to connect with the cylinder tube.
3. Piston seal employs a unique bidirectional sealing structure, compact in size with oil storage functionality.

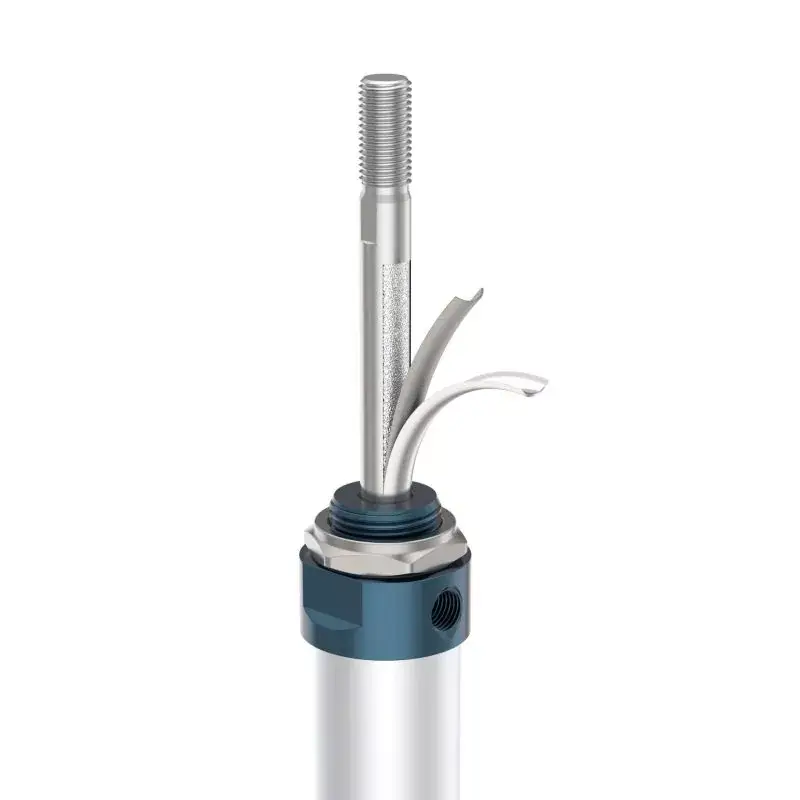

4. Front end cover utilizes self-lubricating bearing guidance, offering excellent lubrication and guidance performance.
5. Various types of rear covers available for easier cylinder installation.
6. A variety of cylinder specifications and mounting accessories are available for customer selection and use.
|
Bore Size(mm) |
20 |
25 |
32 |
40 |
|
Acting Mode |
MSAL,MTAL series:Double Acting |
|||
|
other series:Single Acting |
||||
|
Working medium |
Cleaned Air |
|||
|
Working Pressure |
Double Acting:0.1-1.0 MPa (14-145Psi) |
|||
|
Single Acting:0.2-1.0 MPa (28-145Psi) |
||||
|
Proof Pressure |
1.5 Mpa (215Psi) |
|||
|
Working Temperature Range |
‘-20-70℃ |
|||
|
Working Speed Range |
Double Acting :30-800mm/s Single Acting:50-800mm/s |
|||
|
Buffering Mode |
crash cushion |
|||
|
Port size |
PT1/8 |
PT1/4 |
||
