MI Series Mini Cylinder

Model:MI 10

OLK is a professional MI Series Mini Cylinder manufacturers and suppliers in China. If you interested in MI stainless steel mini cylinder products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

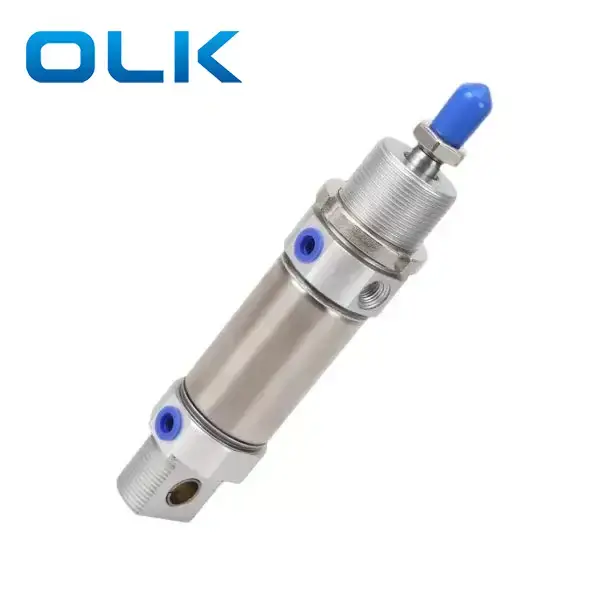

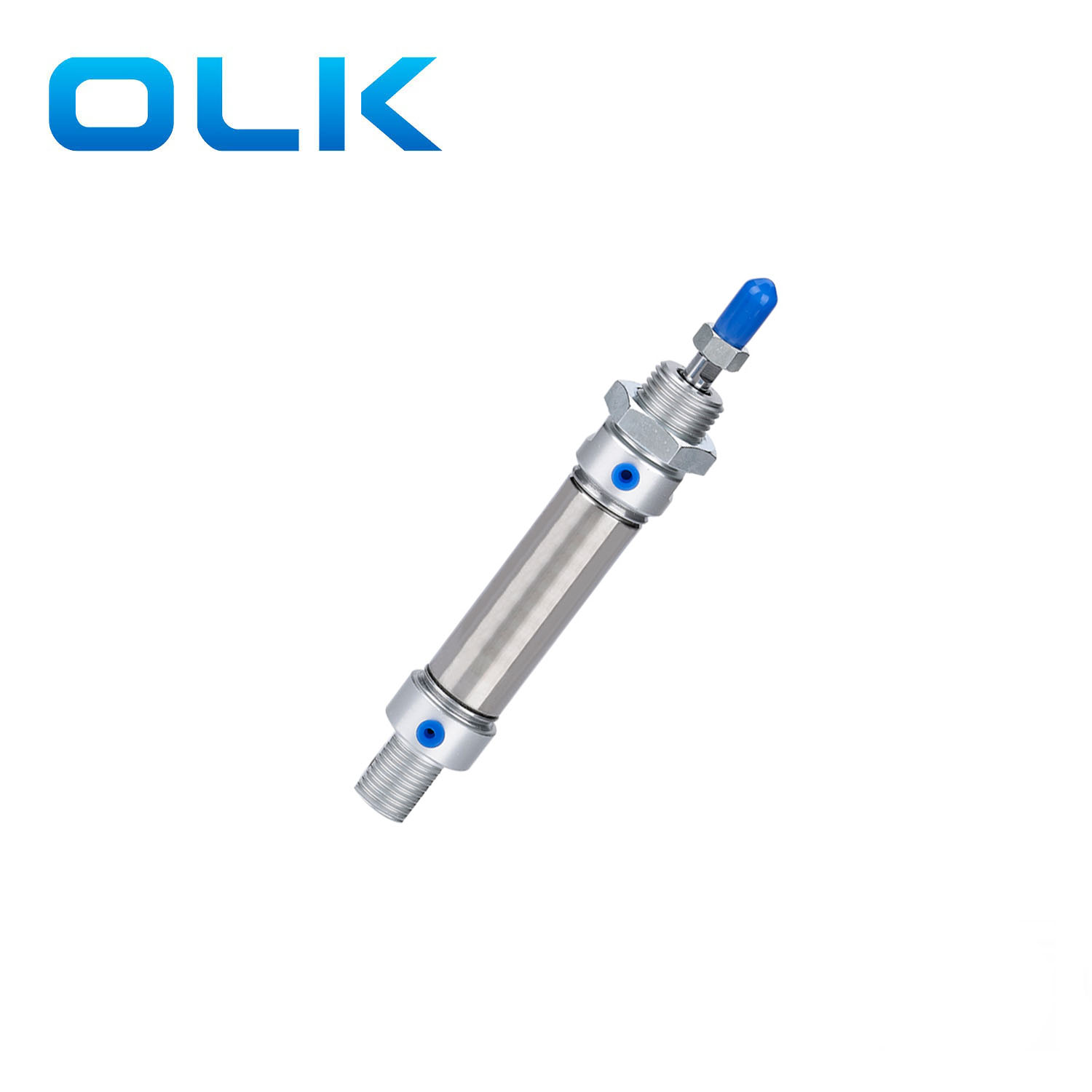

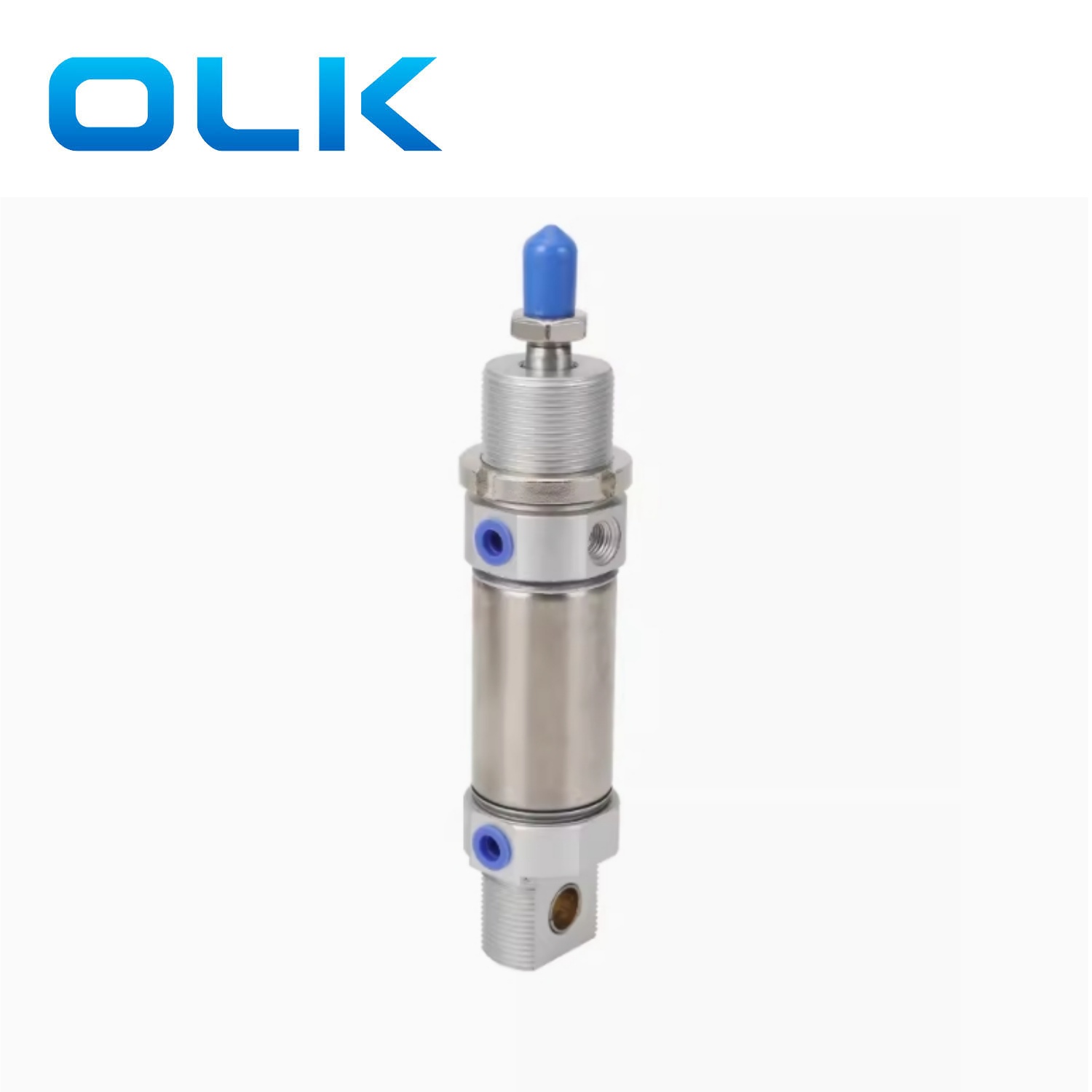

The Ouleikai (OLK) MI series mini cylinders are made of stainless steel, providing high strength and corrosion resistance, suitable for various harsh environments. They are available in double-acting, single-acting push, and single-acting pull types.

MI Stainless Steel mini cylinder bore sizes include φ8, φ10, φ12, φ16, φ20, φ25, φ32, and φ40. The working medium is air, with an operating temperature range of -20 to 70°C. Compact in size, they are ideal for applications with limited space, facilitating easy installation and maintenance, enhancing production efficiency, and reducing downtime.

OULEIKAI MI Stainless Steel Mini Cylinders: Product characteristics

1. ISO 6432 Standard Compliance: Ensures compatibility and standardization.

2. Fixed Front and Rear Bumpers: Reduces the impact of cylinder direction changes.

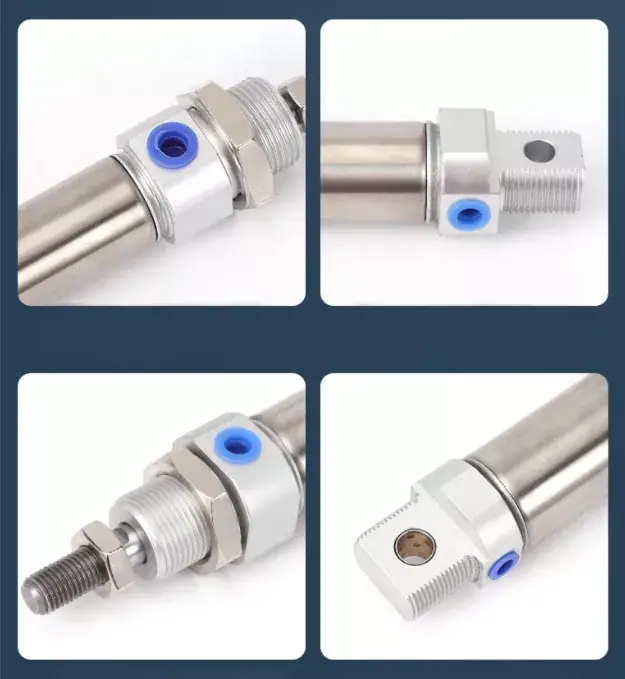

3. Various Rear Cover Options: Makes cylinder installation more convenient.

4. Reliable Connection: The front and rear covers are crimped and rolled with the stainless steel body for a secure connection.

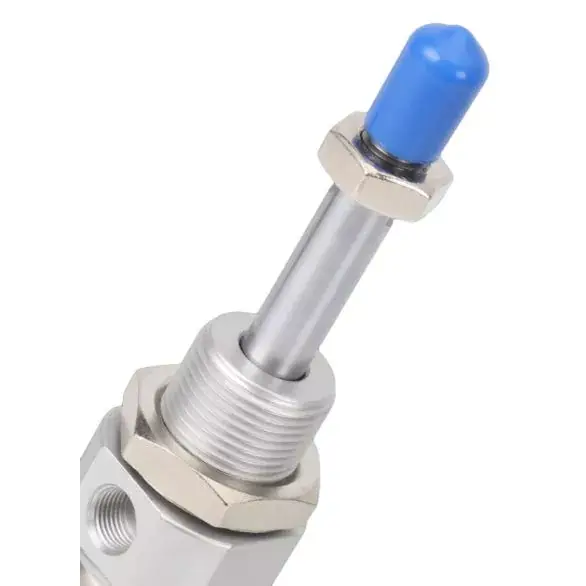

5. Corrosion Resistance: The stainless steel piston rod and cylinder body allow the cylinder to operate in moderately corrosive environments.

MI Stainless Steel mini cylinder (MA MAD MAJ Series) symbol:

MI	10	X	40	_	S	_	CA
Model:	Bore size		Stoke		S:with magnet		Back cover/Suit bore size	Mounting
MI:mini cylinder(double acting)							CA:8/10/12/16/20/25	Blank:
MIC:mini cylinder(double acting with cushion)							U:8/10/12/16/20/25/32/40	FA
MSI:mini cylinder(single acting-push)							R:16/20/25/32/40	LB
MTI:mini cylinder(single acting-pull)							CM:16/20/25/32/40	SDB
								TC

MIJ	10	X	40	_	30	_	S
Model:	Bore size		Stoke		Adjustable stroke		S:with magnet	Mounting
MID:mini cylinder(double rod)					10:10mm			Blank:
MIJ:mini cylinder(adjust stoke)					20:20mm			FA
MICD:mini cylinder(double acting with cushion)					30:30mm			LB
MICJ:mini cylinder(Adjustable stroke with cushion)					40:40mm			TC
					50:50mm
					75:75mm
					100:100mm

MI Series Mini Cylinder Standard specifications

Bore Size(mm)	8	10	12	16	20	25	32	40
Acting Mode	multiple action / single action extrusion / single action introduction types
Working medium	Cleaned Air
Working Pressure	Double Acting		0.1-1.0 MPa (14-145Psi)
	Single Acting		0.2-1.0 MPa (28-145Psi)
Proof Pressure	1.5 Mpa (215Psi)
Working Temperature Range	‘-20-70℃
Use speed range	Double acting :30-800 Single acting :50-800
Buffering Mode	MIC series:Adjustable buffer Other:safety pad
Port size	M5X0.8				PT1/8		PT1/4
