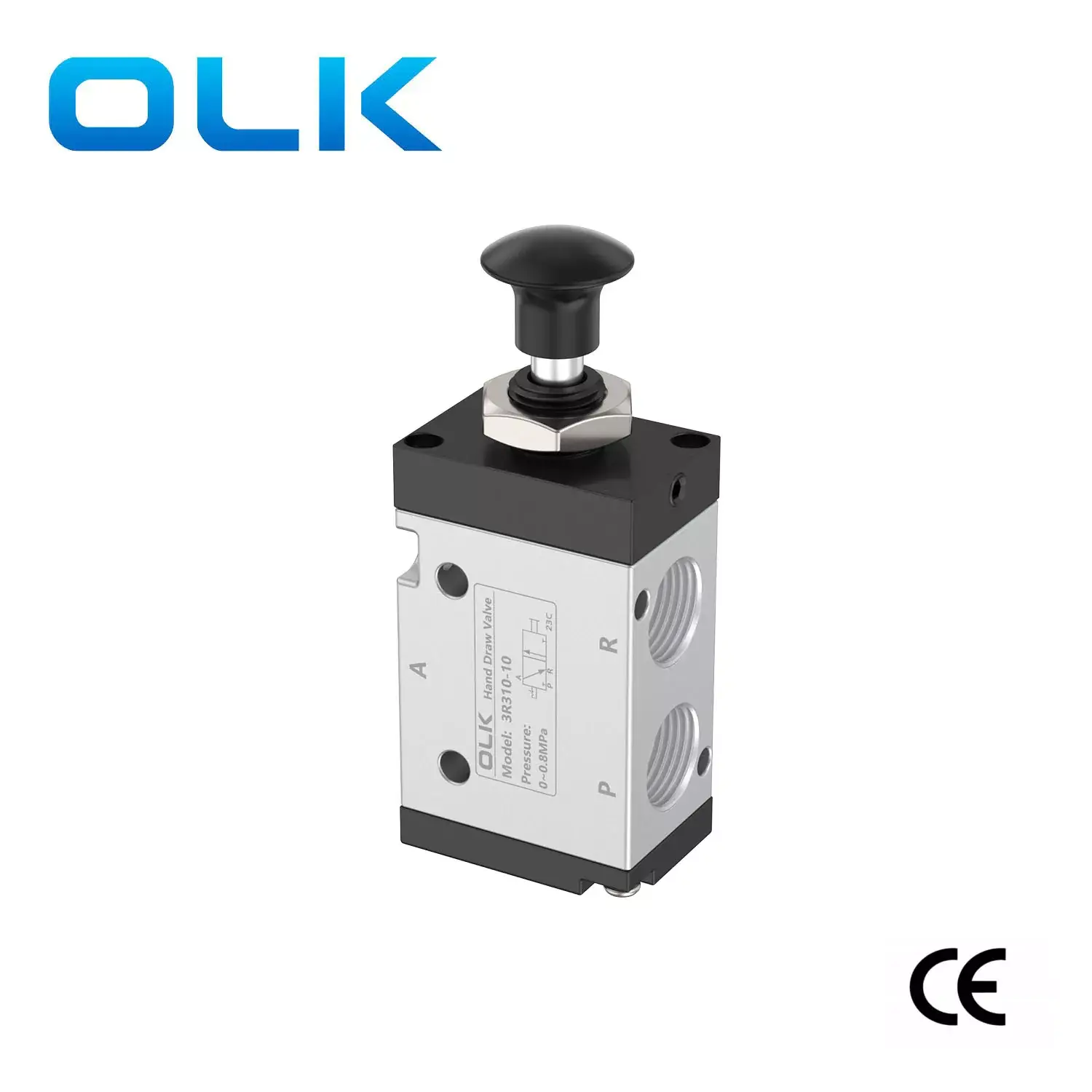

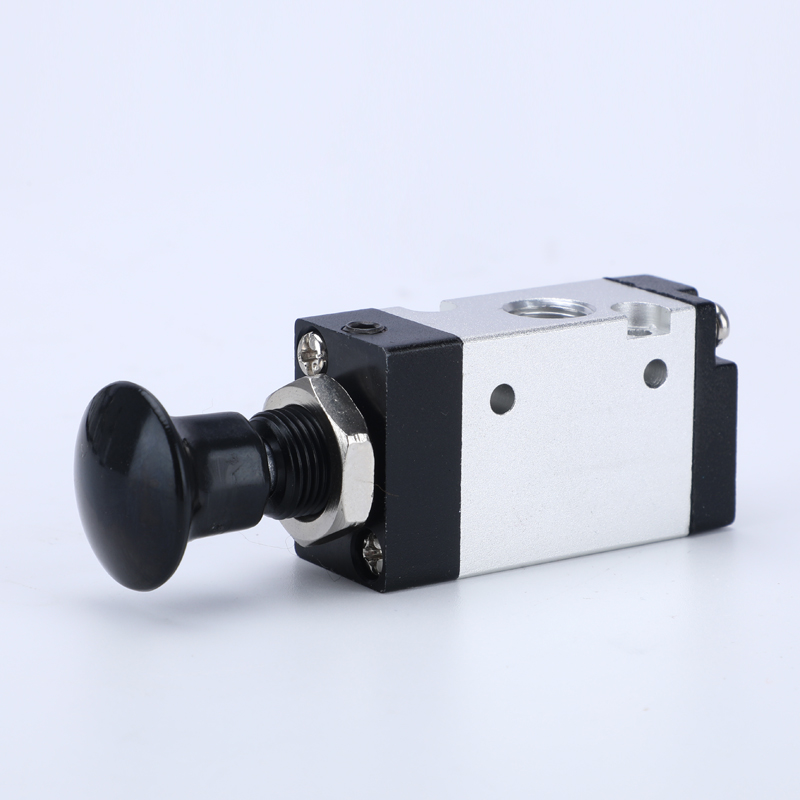

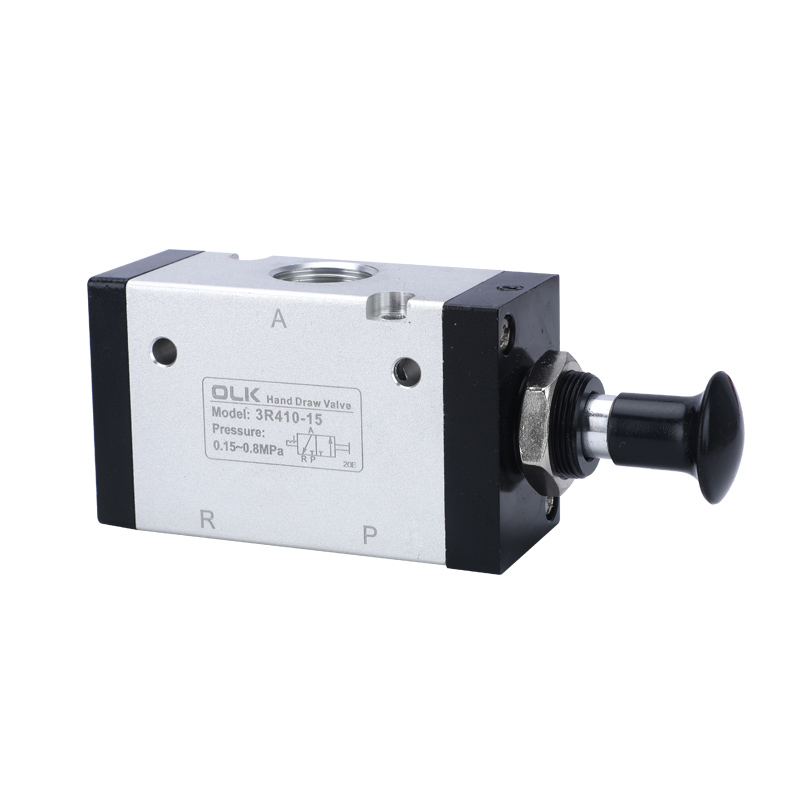

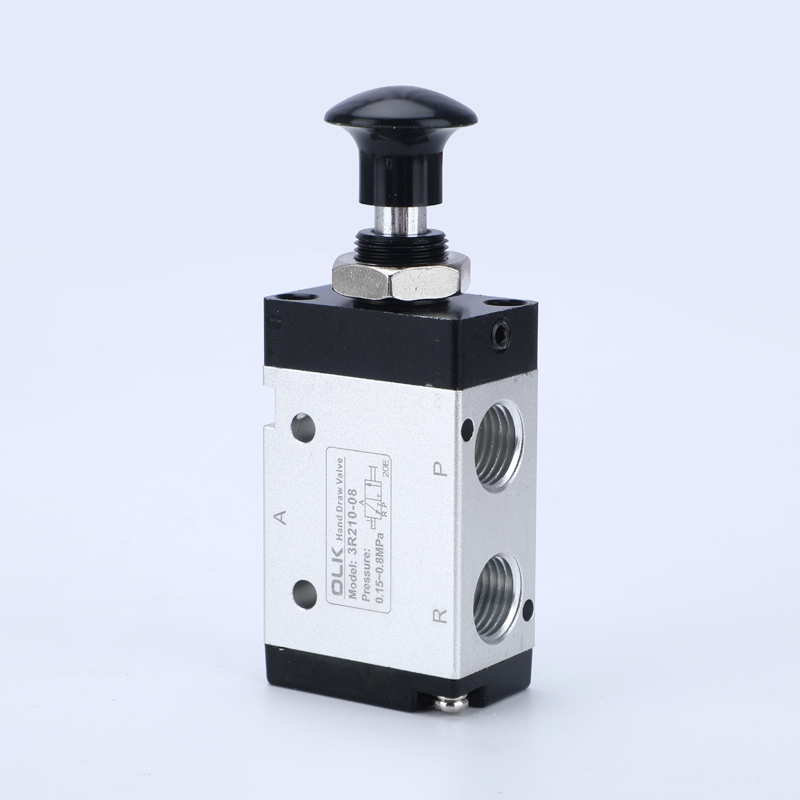

3R Series Hand Operated Valve 3 Way

Model:3R210-08

As a professional 3R Series Hand Operated Valve 3 Way manufacture, you can rest assured to buy 3R hand valve from our factory and OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

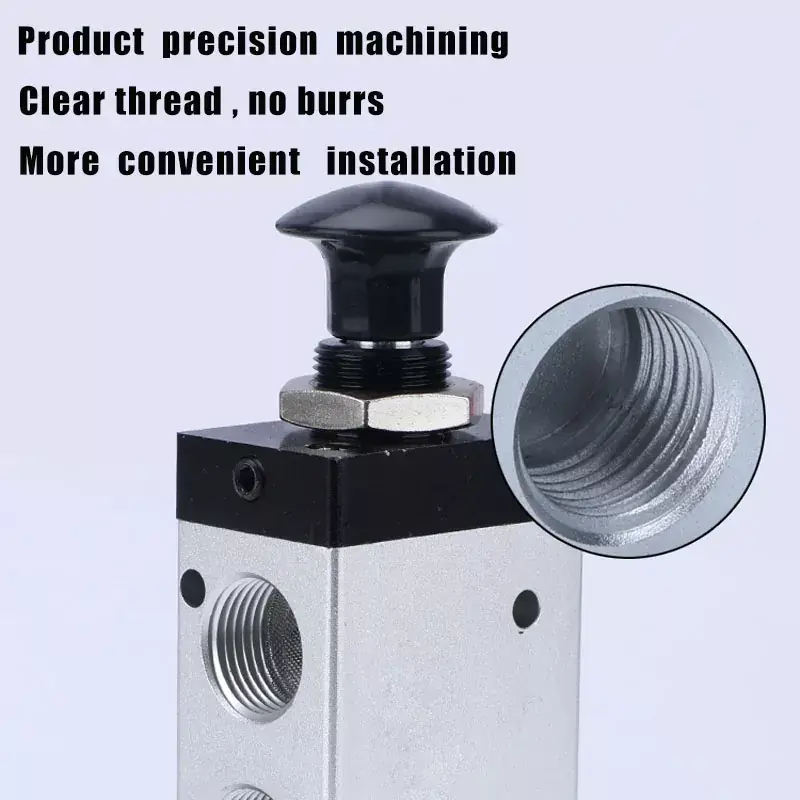

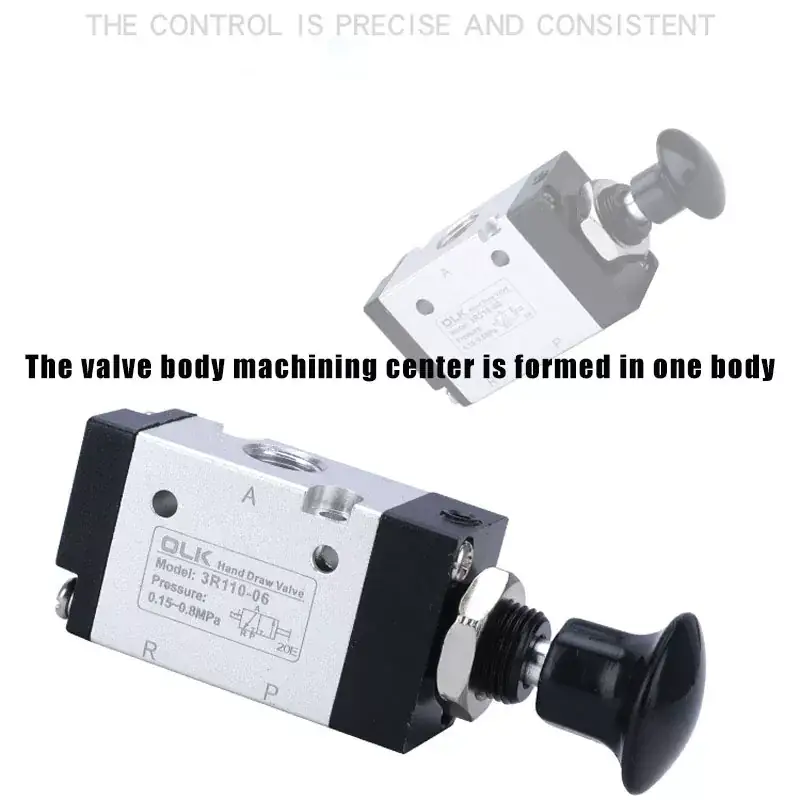

Ouleikai (OLK) has been producing the 3R series hand lever valve since 2003, which can replace the AIR TAC - type 3L series hand valve. The 3R hand operated valve controls the direction by direct manual operation. The two-way three-way valve has one inlet, one outlet, and one exhaust port. The inlet is equipped with a filter screen to remove impurities from the air, preventing contamination and air leakage of the sealing ring. The aluminum valve body surface is sandblasted, and the interfaces are burr-free, with multiple pipe diameters to choose from (M5, G1/8, G1/4, G3/8, G1/2).

SYMBOL:

Ordering code:
3R	2	10	08
MODEL:	SERIES:	FUNCTION:	PORT SIZE:
3R:3/2 way hand valve	1:100 series	10:2 POSITION	100 series:06:G1/8
	2:200 series		200 series:06:G1/8
	3:300 seires		200 series:08:G1/4
			300 series:08:G1/8
			300 series:10:G3/8

OLK 3R Series Hand Operated Valve 3 Way Product characteristics

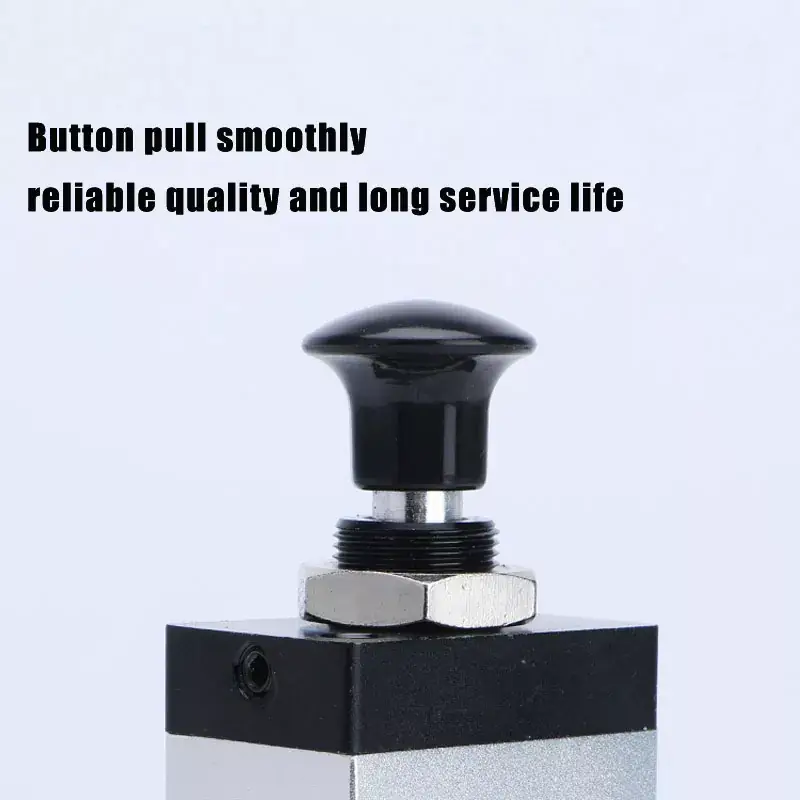

1. Manual operation, coaxial with the axis for easy and precise positioning, ensuring reliability.

2. Piston-type structure with excellent sealing, compact size, lightweight, and easy assembly.

3. Internal holes processed with special techniques, resulting in minimal frictional resistance and extended lifespan.

4. Requires no oil lubrication.

5. Easy installation with multiple mounting positions, facilitating convenient use.

3R hand operated valve 3 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	Manual direct action
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-20∼70

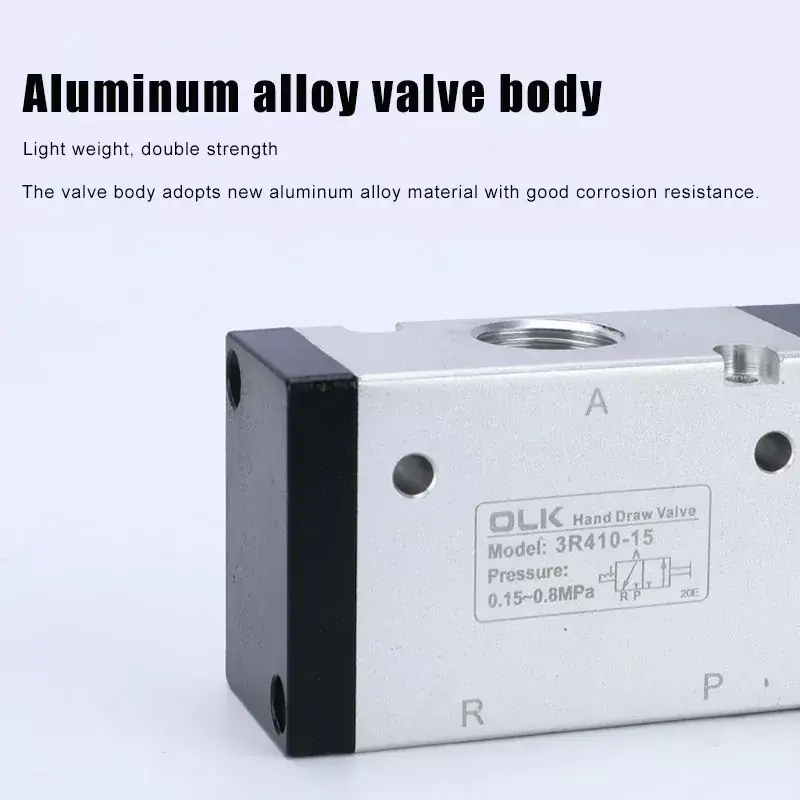

Body material	aluminum alloy

different parameters

model	Port diameter	Flow cross-sectional area mm² (CV value)
3R110-M5	M5	5.5(0.3)

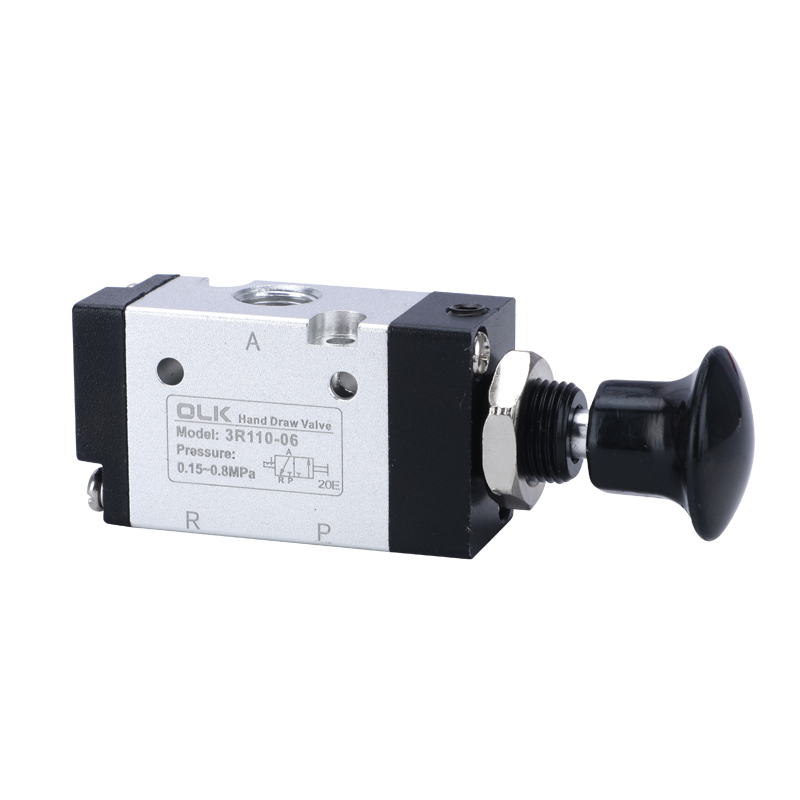

3R110-06	G1/8	12.0(0.67)
3R210-06	G1/8	14.0(0.78)
3R210-08	G1/4	16.0(0.89)

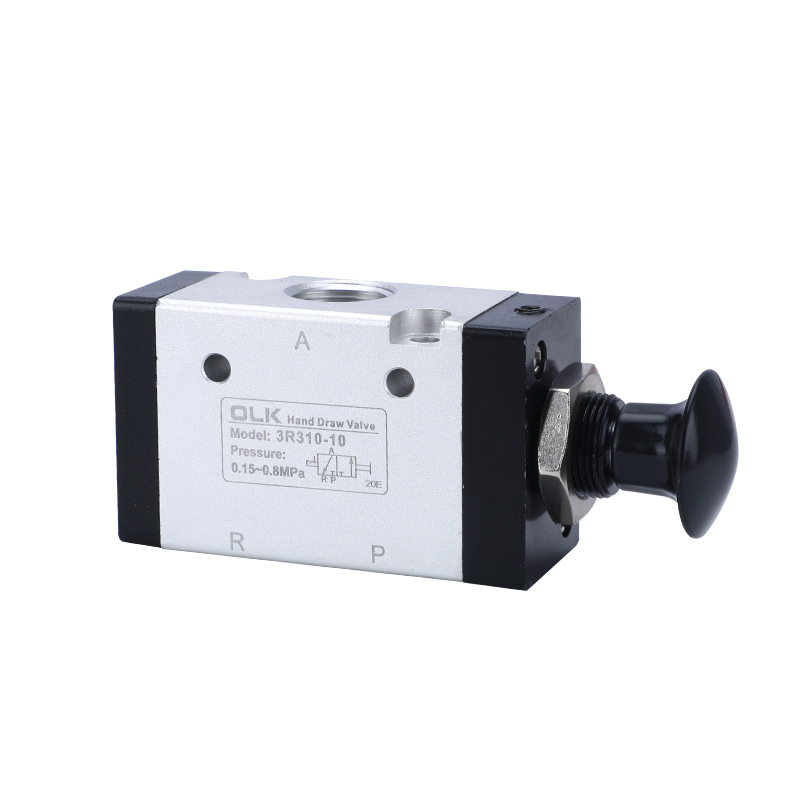

3R310-08	G1/4	25.0(1.39)
3R310-10	G3/8	30.0(1.67)
