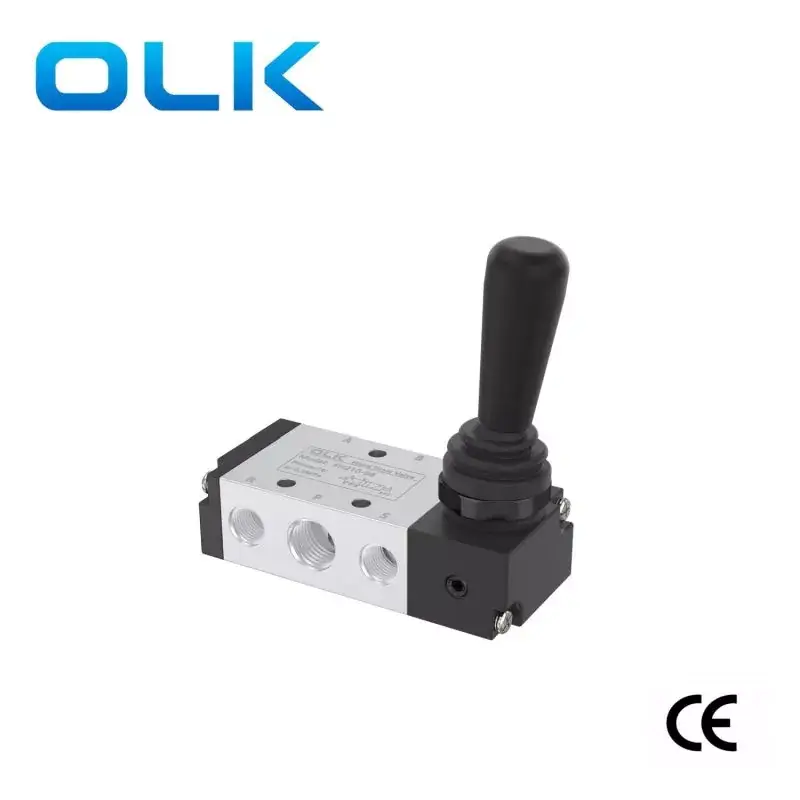

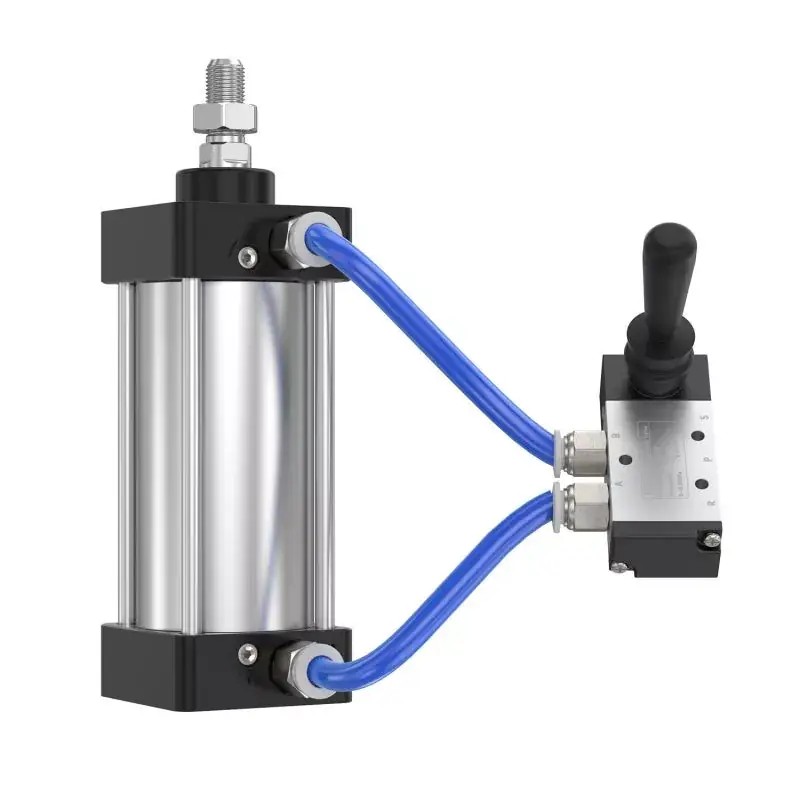

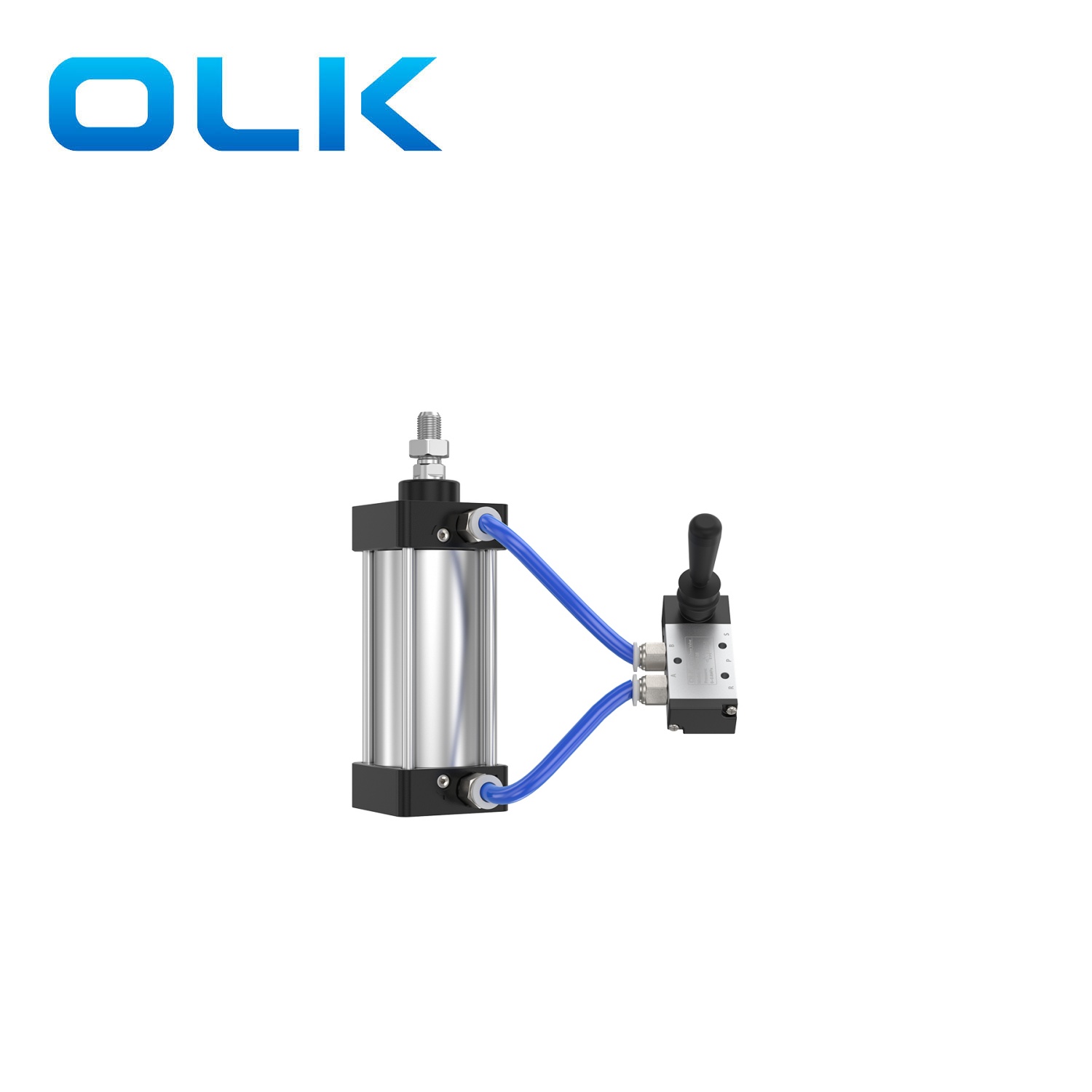

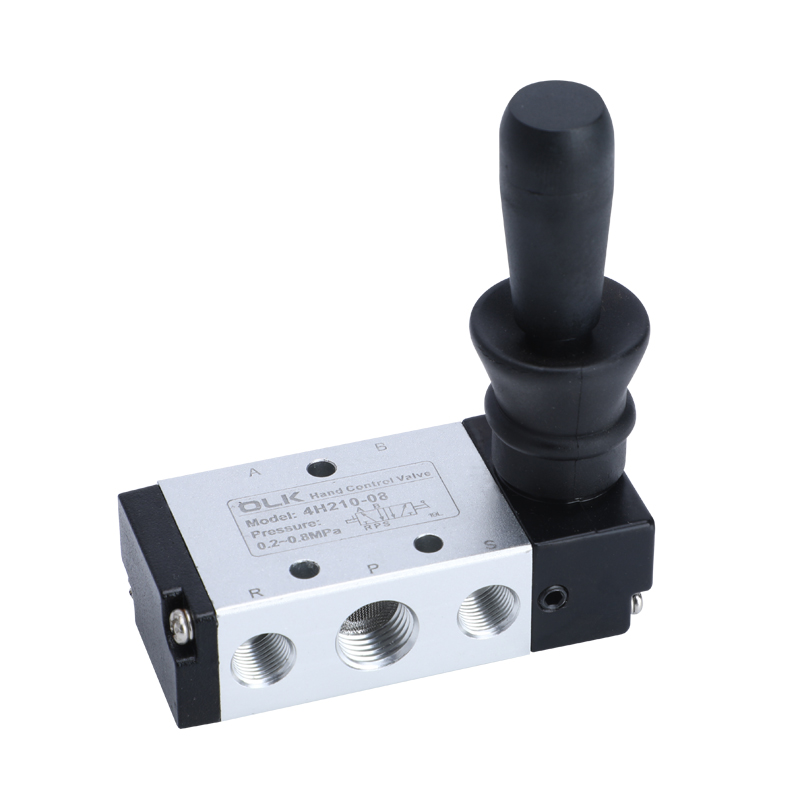

4H Series Lever Valve 5 Way

Model:4H230

As a professional 4H Series Lever Valve 5 Way manufacture, you can rest assured to buy 4H series lever valves from our factory and OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

The Ouleikai (OLK) 4H Series Lever Valve 5 Way offer simple and reliable operation, without complex electrical control components, ensuring high reliability and suitability for basic pneumatic control scenarios. Users can adjust the gas flow direction by operating the hand lever valve according to actual needs.

4H series lever valvesApplicable Scenarios: Laboratory applications, such as laboratory pneumatic systems, research equipment, etc.

Notes: If any abnormalities are found during use, such as gas leakage or valve jamming, please stop using immediately and contact OLK company sales personnel for after-sales service.

SYMBOL:

Ordering code
4H	2	30C	08
MODEL:	CODE:	VALVE TYPE:	PORT SIZE:
4H:Manual Reset lever valve hand valve	2:200 series	10:5/2 way valve	200 series:06:G1/8

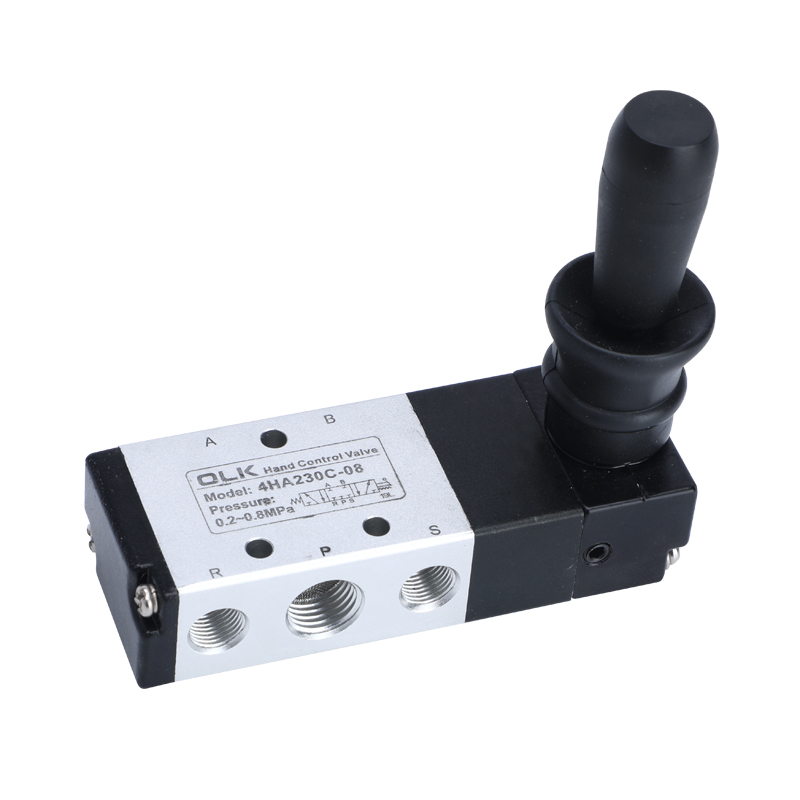

4HA:Spring-Return lever valve hand valve	3:300 series	30C:5/3 way ,3 position closed center	200 series:08:G1/4
		30E:5/3 way,3 position exhaust center	300 series：08：G1/8
		30P:5/3 way,3 position pressure center	300 series：10：G3/8

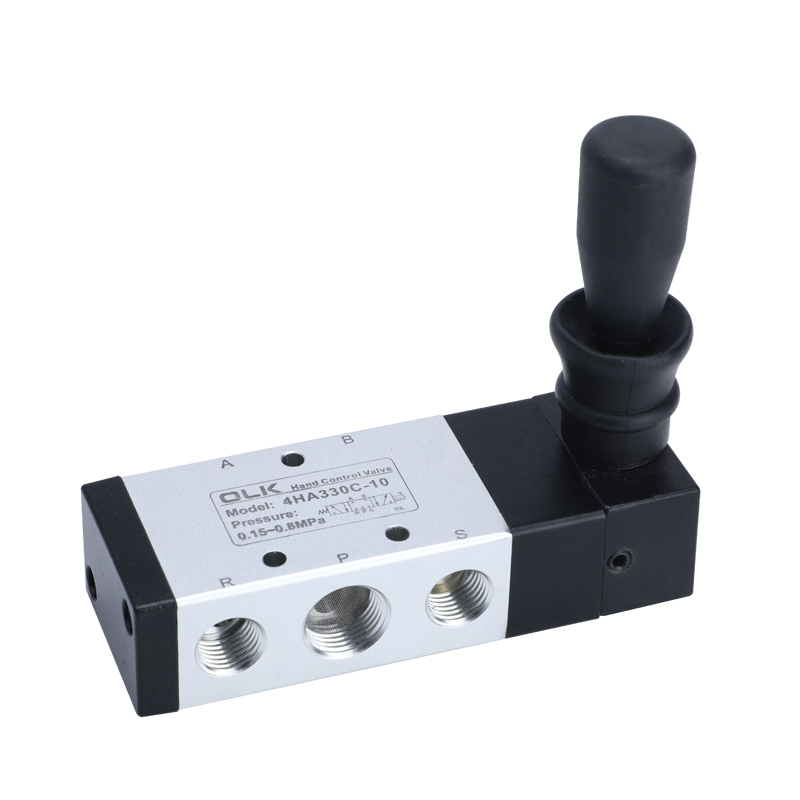

OLK 4H series 2/5 3/5 hand lever valves Product characteristics

1. Manual operation, smooth actuation, precise and reliable positioning;

2. Piston-type structure, excellent sealing, compact size, lightweight, easy installation and disassembly;

3. The inner hole is processed with a special technique, resulting in low friction resistance and long service life;

4. No need for oil lubrication;

5. Panel installation functionality, easy and convenient installation, meeting various customer needs.

OULEIKAI 4H LEVER VALVE Installation and Usage

1) The five-port three-position manual reset manual valve employs spring steel ball positioning, facilitating switching. Please exercise caution not to apply excessive force during operation, as this may result in incorrect control positions and unintended actions.

2) When mounting with a panel, you can either remove or retain the spacer based on the particular situation.

3) Consult the diagram for different installation approaches.

Special Note: When securing the panel, consider the thickness of the mounting plate and the diameter of the mounting hole.

4H series lever valves 5 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	Manual direct control
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-20∼70
Body material	aluminum alloy

4H series lever valves 5 way different parameters

model	Port diameter	number of positions	Flow cross-sectional area mm² (CV value)
4H210-06	Intake=outlet=G1/8	2 position 5 way	14.0(0.78)
4H230C-06	Intake=outlet=G1/8	Three position five way	12.0(0.67)
4H230E-06	Intake=outlet=G1/8	Three position five way	12.0(0.67)
4H230P-06	Intake=outlet=G1/8	Three position five way	12.0(0.67)
4H210-08	Intake=outlet=G1/4	2 position 5 way	16.0(0.89)
4H230C-08	Intake=outlet=G1/4	Three position five way	12.0(0.67)
4H230E-08	Intake=outlet=G1/4	Three position five way	12.0(0.67)
4H230P-08	Intake=outlet=G1/4	Three position five way	12.0(0.67)
4H310-08	Intake=outlet=G1/4	2 position 5 way	25.0(1.39)
4H330C-08	Intake=outlet=G1/4	Three position five way	18.0(1.00)
4H330E-08	Intake=outlet=G1/4	Three position five way	18.0(1.00)
4H330P-08	Intake=outlet=G1/4	Three position five way	18.0(1.00)

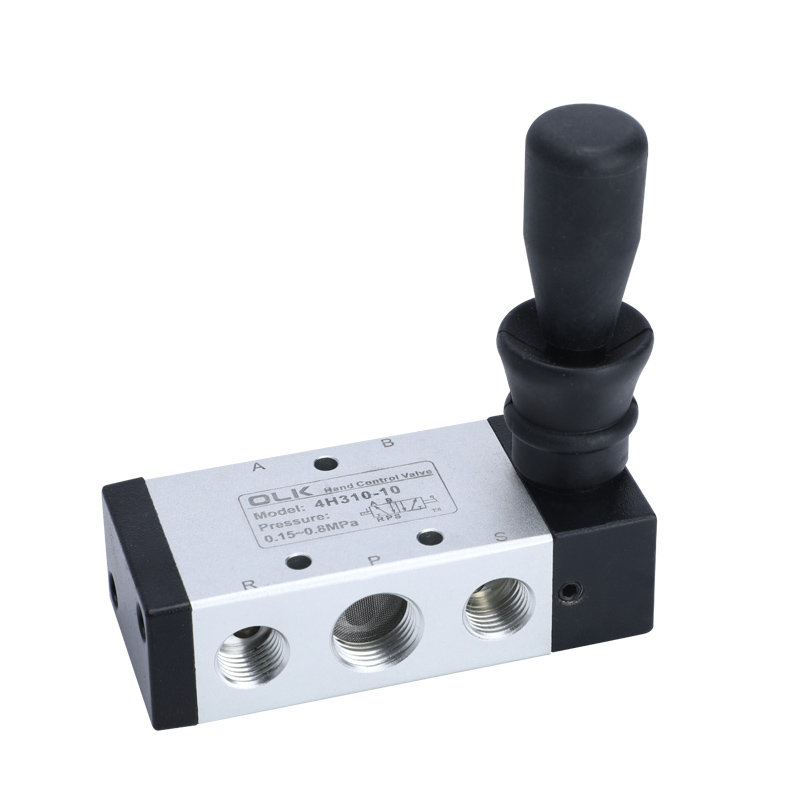

4H310-10	Inlet=Outlet=G3/8 Exhaust=G1/4	2 position 5 way	30.0(1.67)
4H330C-10	Inlet=Outlet=G3/8 Exhaust=G1/4	Three position five way	18.0(1.00)
4H330E-10	Inlet=Outlet=G3/8 Exhaust=G1/4	Three position five way	18.0(1.00)
4H330P-10	Inlet=Outlet=G3/8 Exhaust=G1/4	Three position five way	18.0(1.00)
