3H Series Lever Valve 3 Way

Model:3H210-08

As a professional 3H Series Lever Valve 3 Way manufacture, you can rest assured to buy 3H series 2/3 hand lever valve

Send Inquiry

Product Description

OLK is a professional 3H Series Lever Valve 3 Way manufacturer and supplier in China, you can rest assured to wholesale and customized 3H Series Lever Valve 3 Way from our factory and we will offer you the best after-sale service and timely delivery. from our factory and OLK will offer you the best after-sale service and timely delivery.

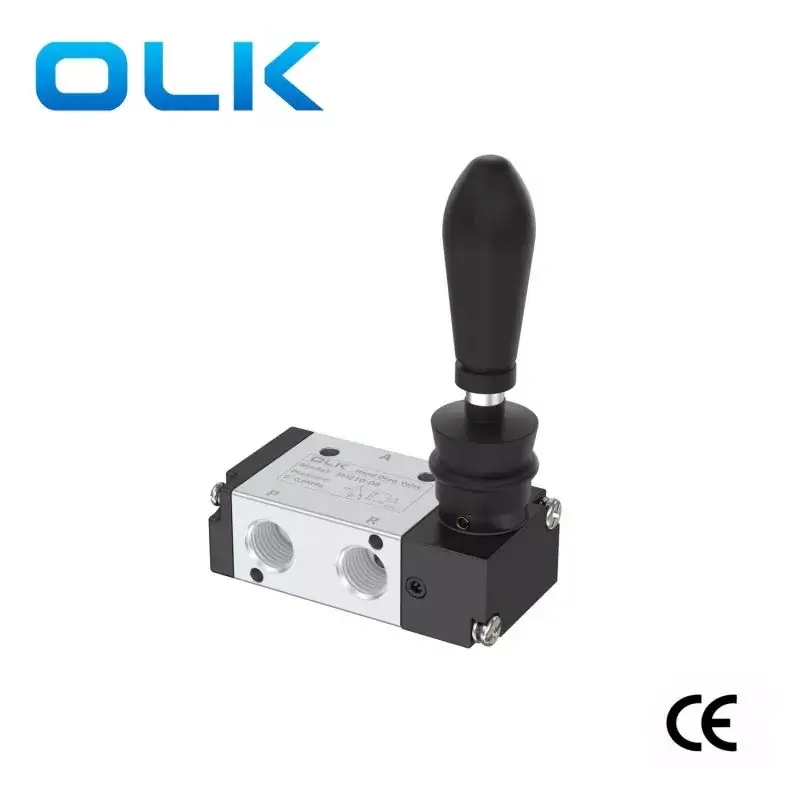

The Ouleikai (OLK) 3H series 2/3 hand lever valve adopts hand lever drive, facilitating manual control of gas flow direction for users, with simple operation and no need for external power source.

Notes: Please do not exceed the rated working pressure range of the hand lever valve to avoid affecting the safety and stability of the product.

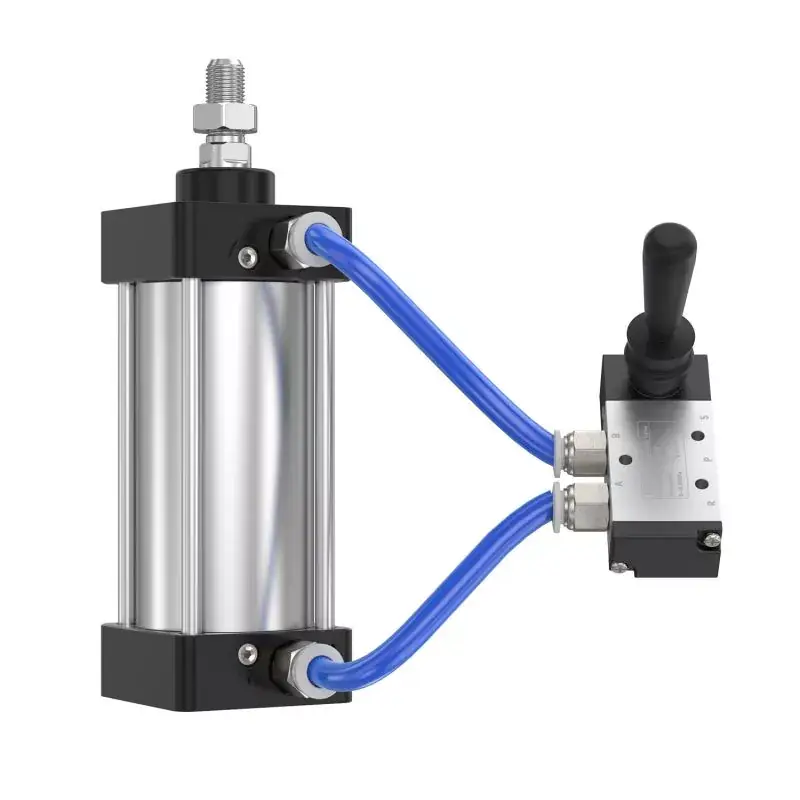

Applicable Scenarios:Small pneumatic systems: The 3H two-way three-port hand lever valve is suitable for gas control in small pneumatic equipment, simple pneumatic machinery, etc.

SYMBOL:

Ordering code:
3H	2	10	08
MODEL:	CODE	VALVE TYPE	PORT SIZE
3H series 2 position 3 way hand lever valve	2:200 series	10:2 position	06:G1/8
	3:300 series		08:G1/4
	4:400 series		10:G3/8
			15:1/2

3H series 2/3 hand lever valve General parameters

working medium	Air (filtered through a filter over 40μm)
Action	Manual direct control
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.2MPa(170psi)
Working temperature °C	-50~60
Body material	aluminum alloy

3H series 2/3 hand lever valve different parameters

model	Port diameter	Effective cross-sectional area mm² (CV value)
3H210-06	G1/8	14.0(0.78)
3H210-08	G1/4	16.0(0.89)
3H310-08	G1/4	25.0(1.39)
3H310-10	G3/8	30.0(1.67)
3H410-15	G1/2	50.0(2.79)
