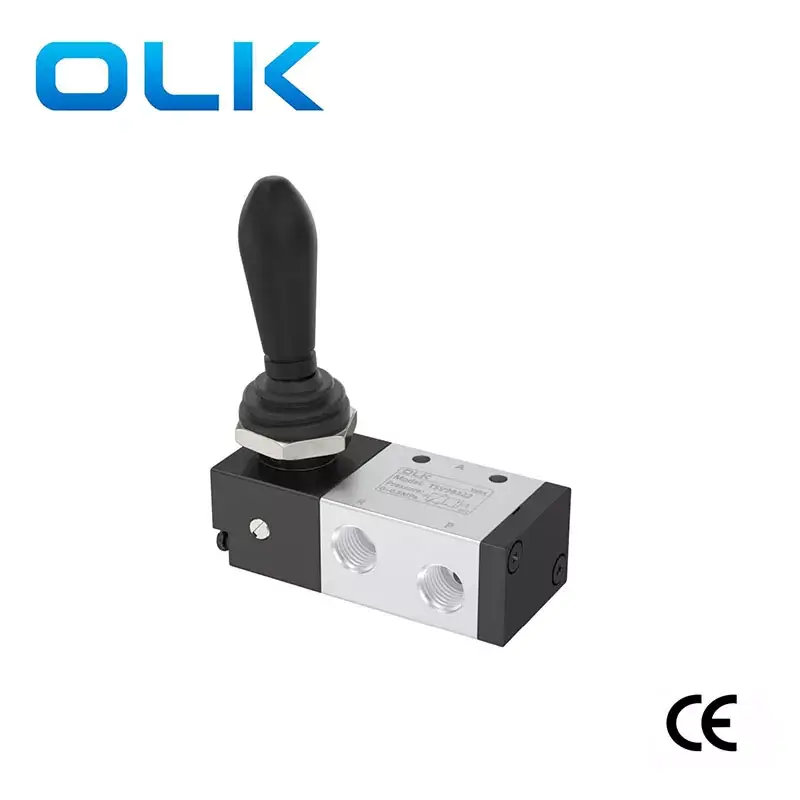

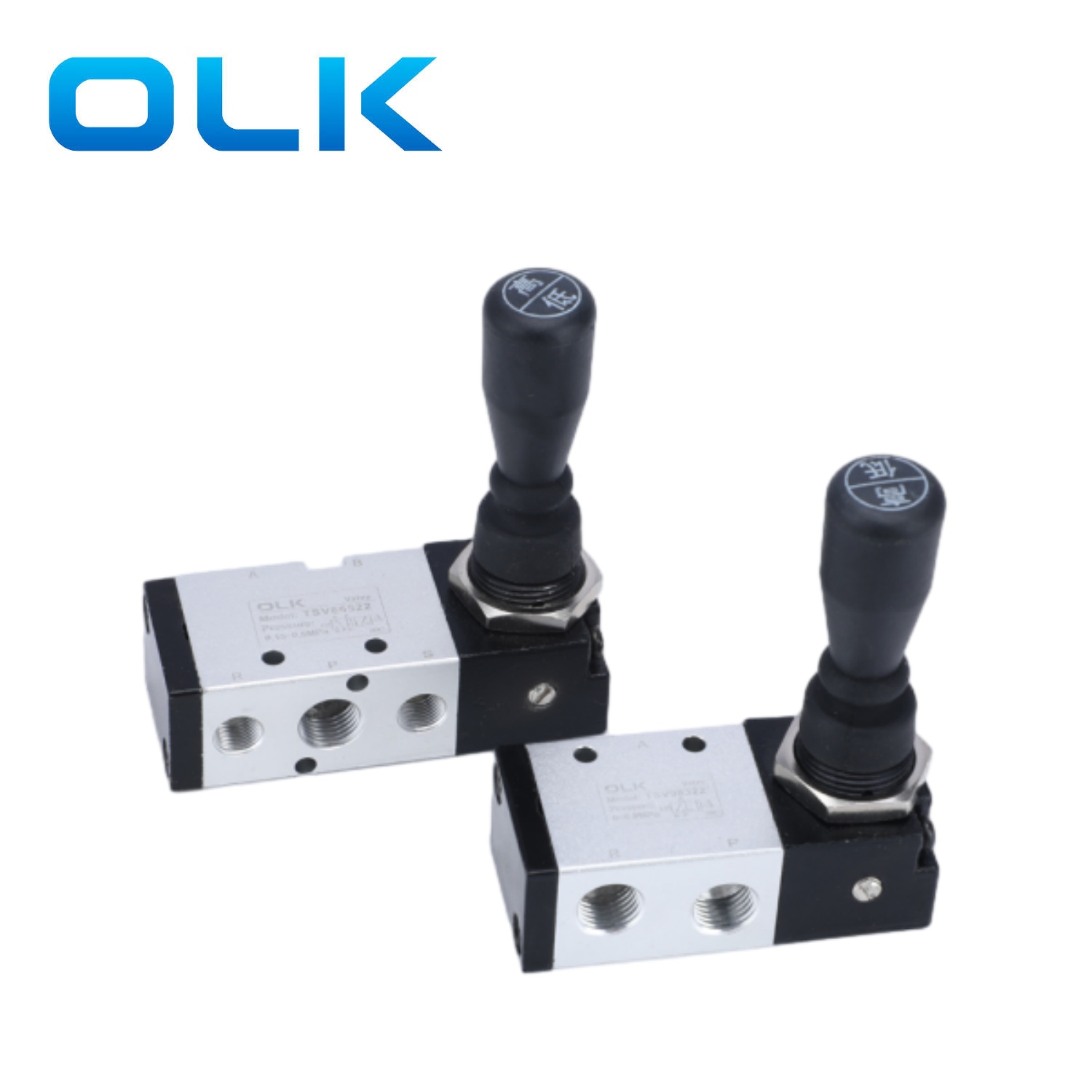

OLK is a professional TSV Series Lever Valve 3 Way 5 Way manufacturer and supplier in China. The Ouleikai (OLK) TSV series 2/3 2/5 hand lever valves meet basic gas control requirements. During use, please pay attention to the position and status of the TSV series hand lever valve, ensuring correct operation to avoid malfunctions caused by misoperation.
TSV HAND LEVER VALVE SYMBOL:
|
ORDERING CODE |
||||
| TSV86 | 32 | 2 | M | NRV |
| MODEL | CODE | PORT SIZE | TYPE | MODEL |
| Hand lever valve | 2 POSITION 3 WAY |
1:G1/8 |
M:Mechanical locking type | 2 position 2 way |
|
|
2:G1/4 |
S:Spring automatic reset type |
|
|
|
ORDERING CODE |
||||
| TSV98 | 32 | 2 | M | NRV |
| MODEL | CODE | PORT SIZE | TYPE | MODEL |
|
Hand lever valve |
2 POSITION 3 WAY |
1:G1/8 |
M:Mechanical locking type |
2 position 2 way |
|
|
|
2:G1/4 |
S:Spring automatic reset type |
|
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Manual direct control |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0∼0.8(0~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
0~60 |
|
Flow cross-sectional area mm² (CV value) |
18.0(1.00) |
|
Body material |
aluminum alloy |
|
model |
Port diameter |
number of positions |
|

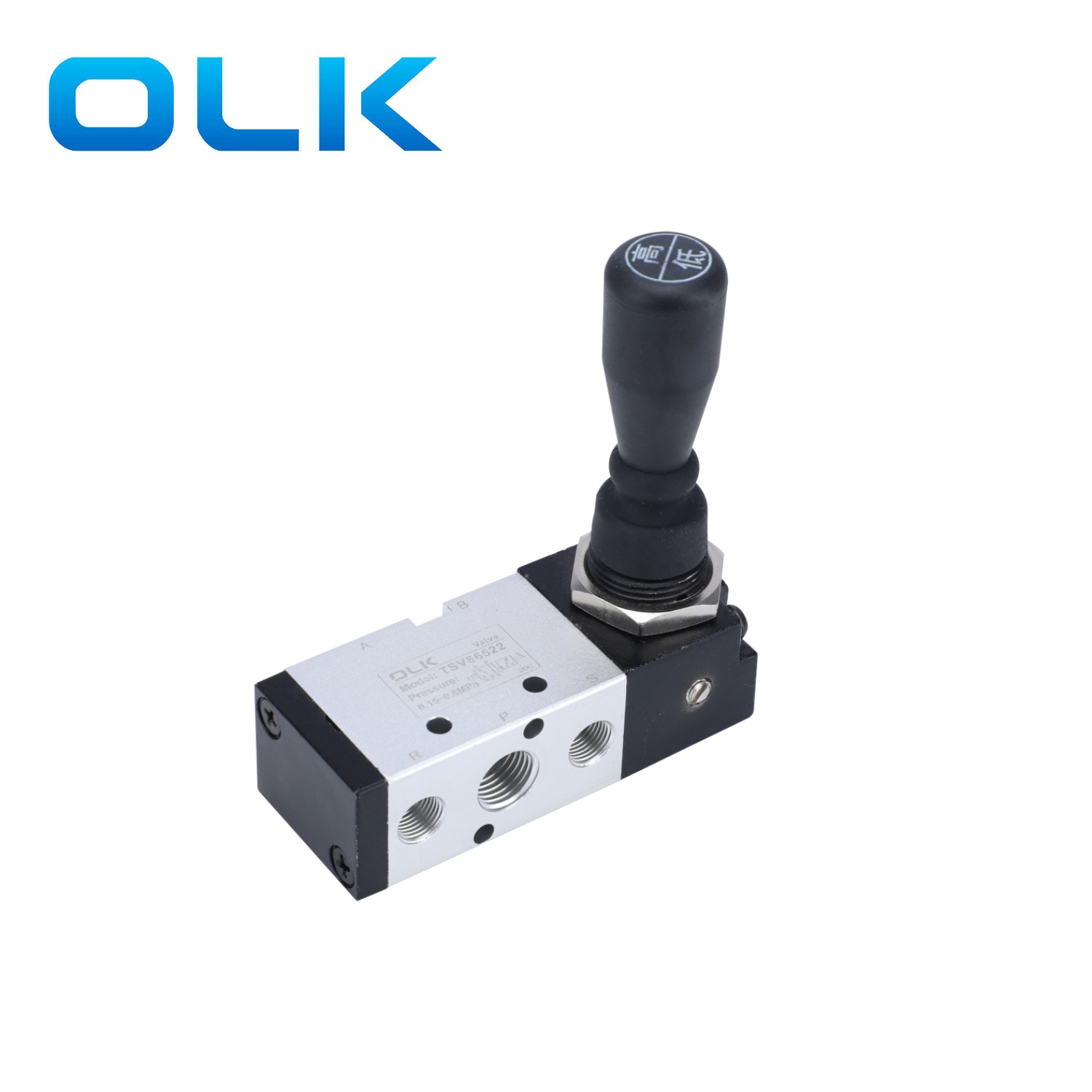

TSV86522 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
2 position 5 way |
|

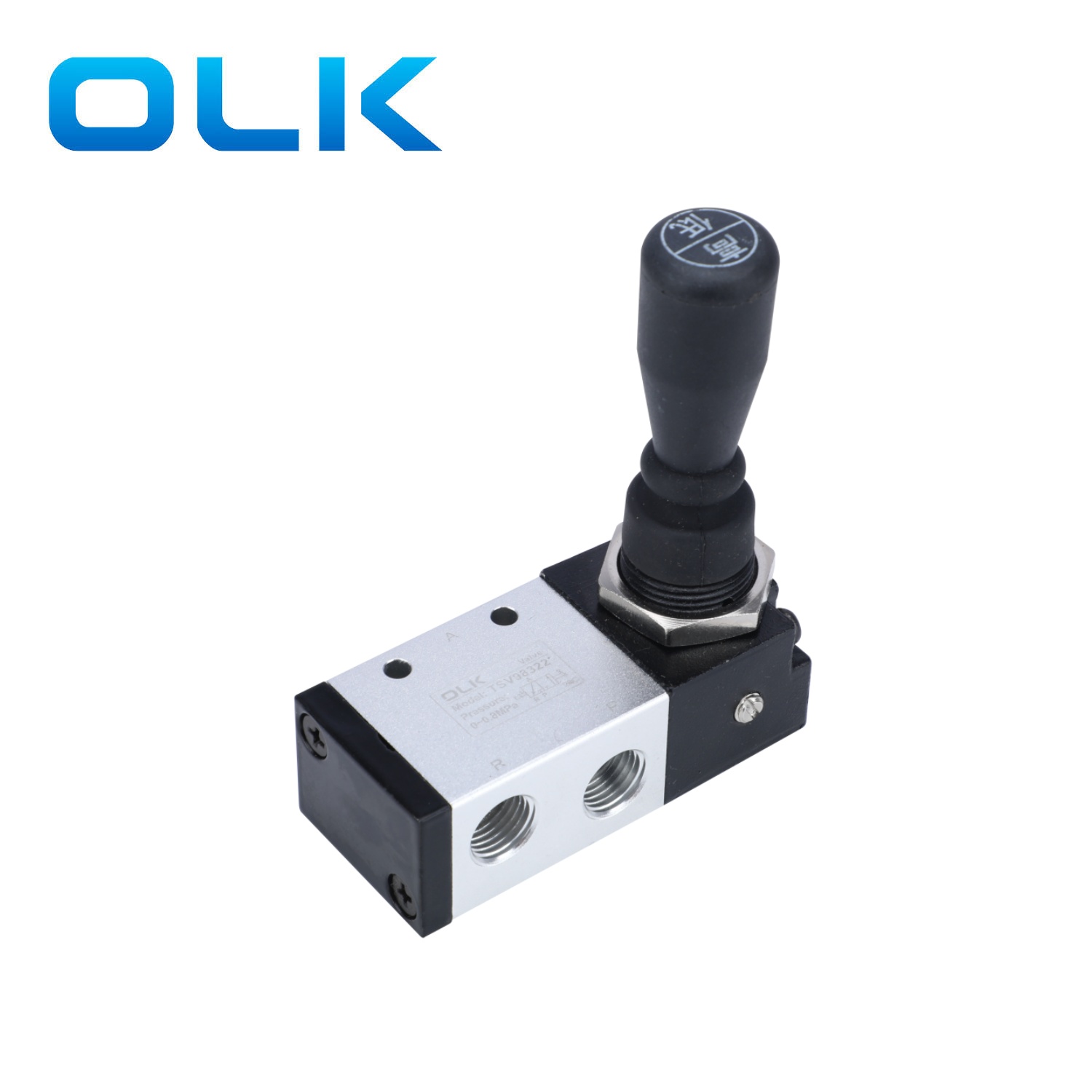

TSV98322 |
G1/8 |
Two position three way |
