CM3 2-Position 3-Way Mechanical Button Valves

Ouleikai (OLK) CM3 series Airtac-type 2-position 3-way mechanical button valves feature

a shut-off structure and can have side or bottom air inlet/outlet. The thread sizes for the ports are available in M5, G1/8, and G1/4.

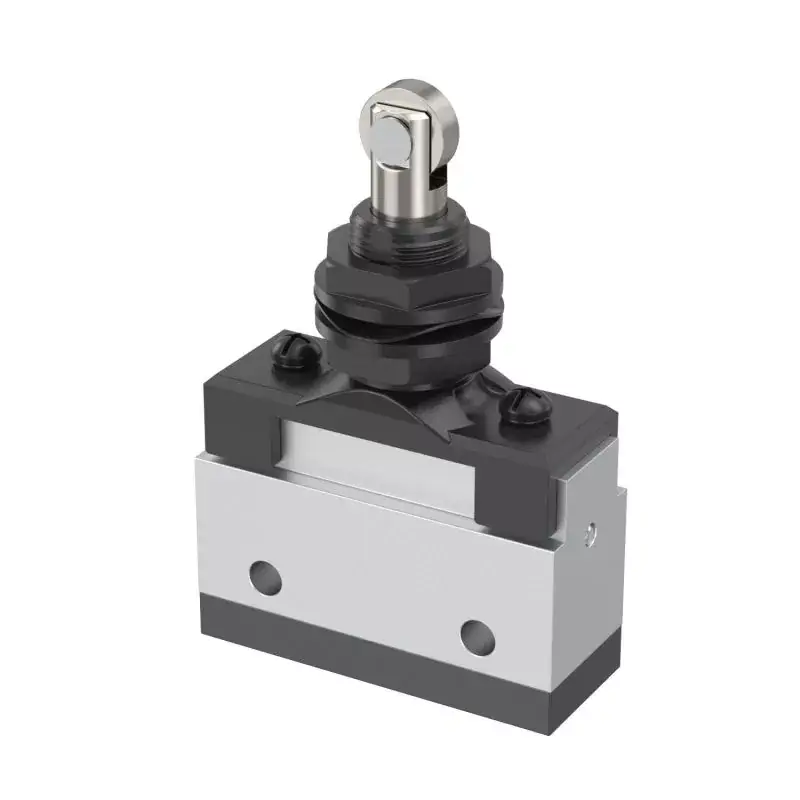

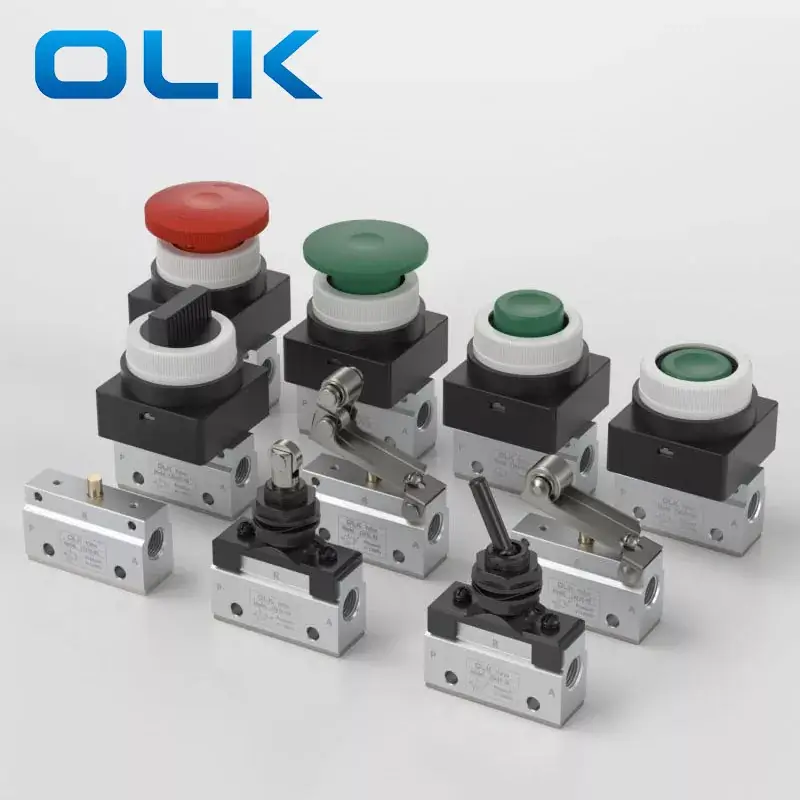

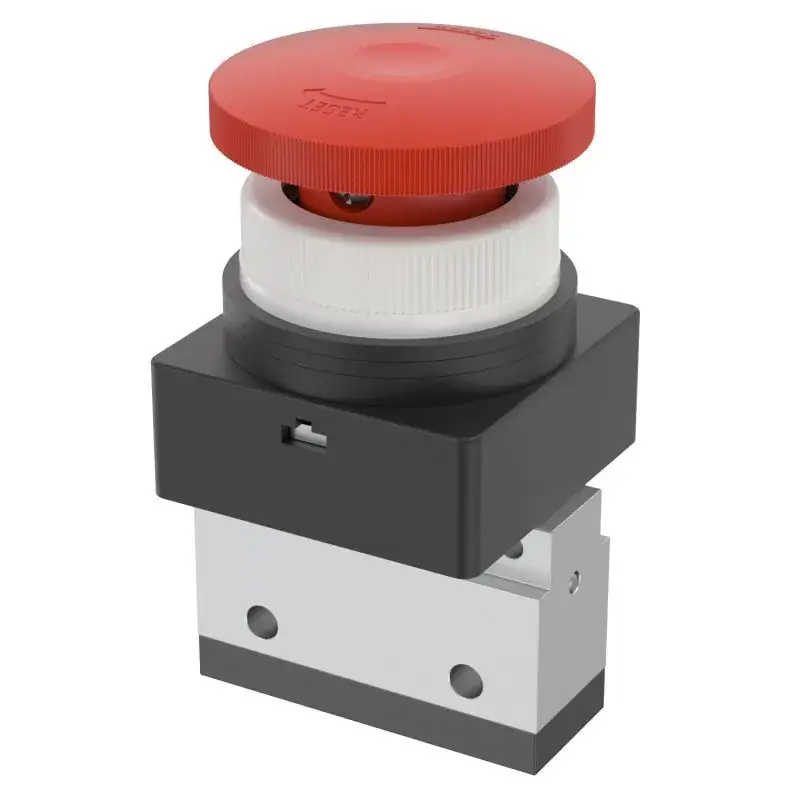

The button types include: Basic (CM3B), Roller (CM3R), Single-direction Roller (CM3L), Flat Button (CM3PF), Protruding Button (CM3PP), Mushroom Button (CM3PM), Emergency Stop Button (CM3PL), Selector Knob (CM3HS), Impact Roller (CM3V-06), and Rocker Arm (CM3Y-06). The buttons are available in four colors: Red, Green, Black, and Yellow.

OULEIKAI  CM3 2-position 3-way mechanical button valves Product characteristics

1.The CM3B, CM3L, SM3V, and CM3R series directional valves require external force for switching, provided by external mechanisms, making them suitable for position detection or actuation.

2.The CM3PF, CM3PM, CM3PMS, CM3PX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series are manually operated and feature a variety of structural designs to accommodate different operating conditions.

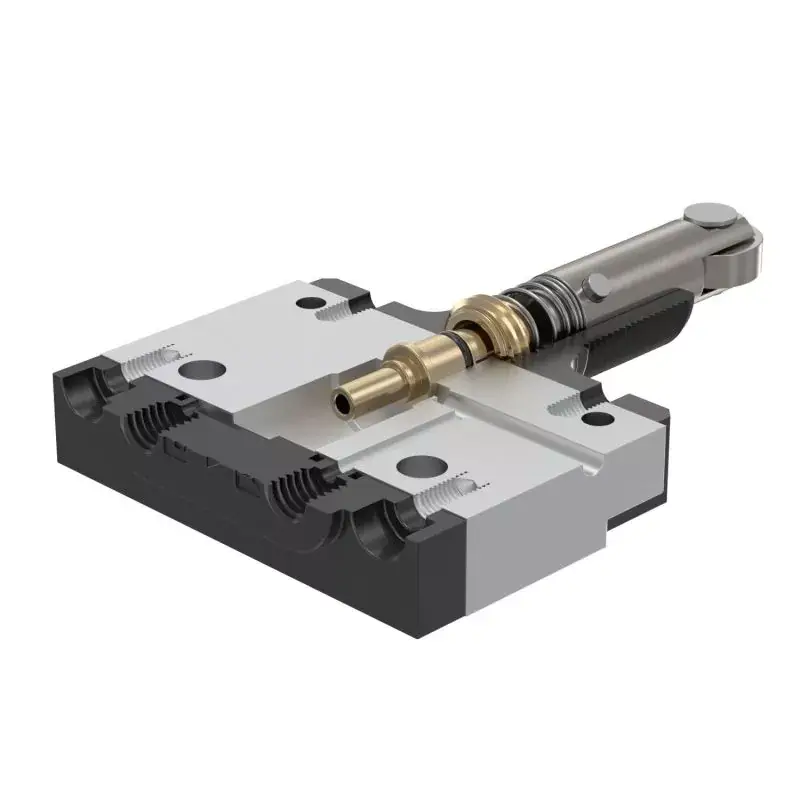

3.With a shut-off structure, they offer excellent sealing, flexible switching, and do not require additional lubrication.

4.The control heads of the CM3L, CM3V, CM3R, and CM3Y series are made of metal, ensuring long life, greater reliability, and stability.

5.The CM3PMS and CM3PMX series include metal protective covers that effectively protect the button caps, preventing accidental actuation due to external forces, making them safer and more reliable to use.

CM3 2-position 3-way mechanical button valves General parameters
