Excellent corrosion and wear-resistance MOV 321 3/2way mechanicalvalve are manufactured by high-quality allumunim alloy material.OLK company's mechanical button valve threads clear with good sealing minimizing air leakage.The buttons offer a good tactile feeling and quick rebound.
The MOV321 series valve can control single-acting cylinders with interface diameters of M5 and G1/8. P stands for the inlet, A for the outlet, and the exhaust port is located at the push rod.
Symbol
Ordering Code
MOV
32
1
R
MODEL:
POSITION NO:
PORT SIZE:
BUTTON TYPE:
MOV mechanical valve
2 positon 3 way
1:G1/8
Basic Type (MOV321)
Roller Type (MOV321R/MOV-02)

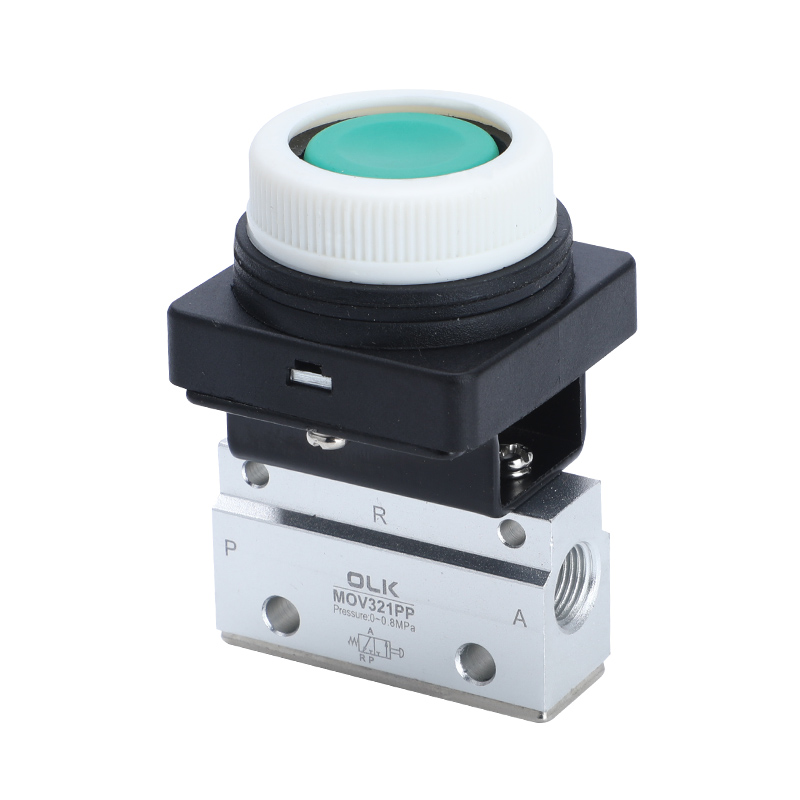

Flat Button (MOV321PP)
Raised Button (MOV321PPL)
Large Round Button (MOV321EB/MOV-03A)
Locking Button (MOV321EB/MOV-03)
Selector Button (MOV321TB/MOV-01)

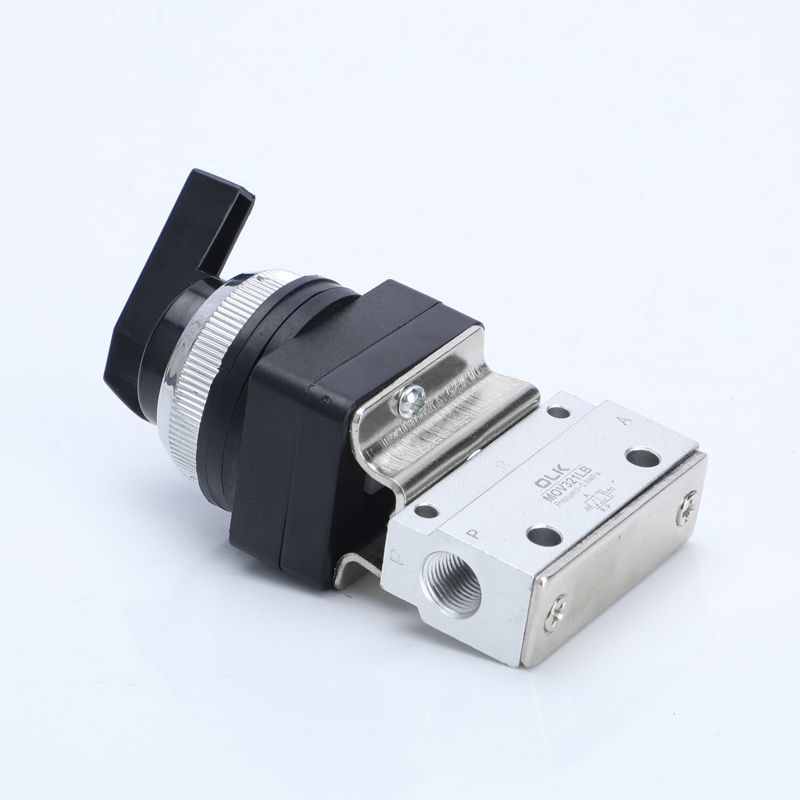

Selector Knob (MOV321LB)

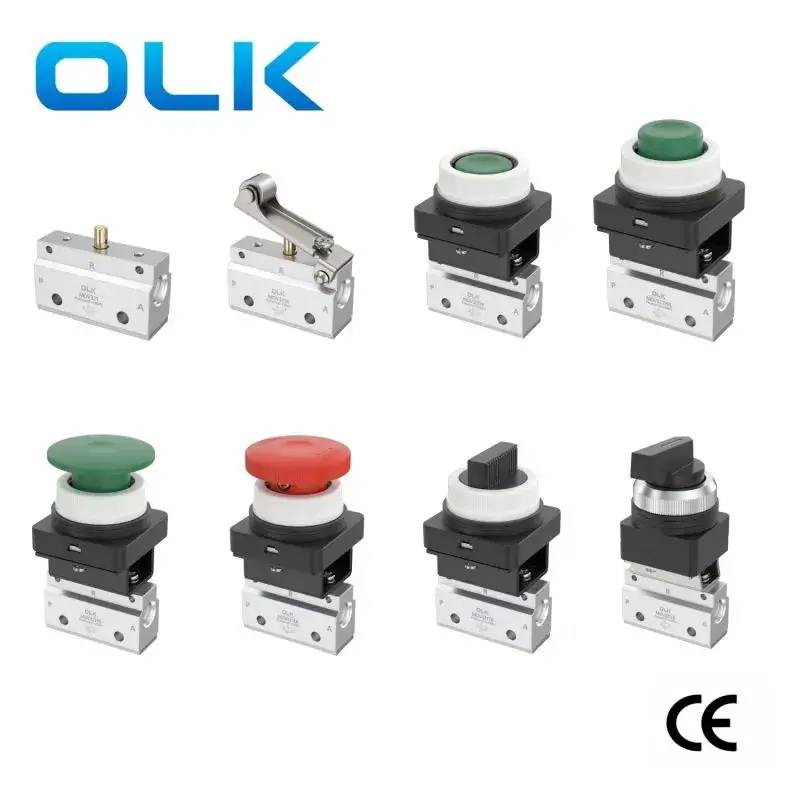

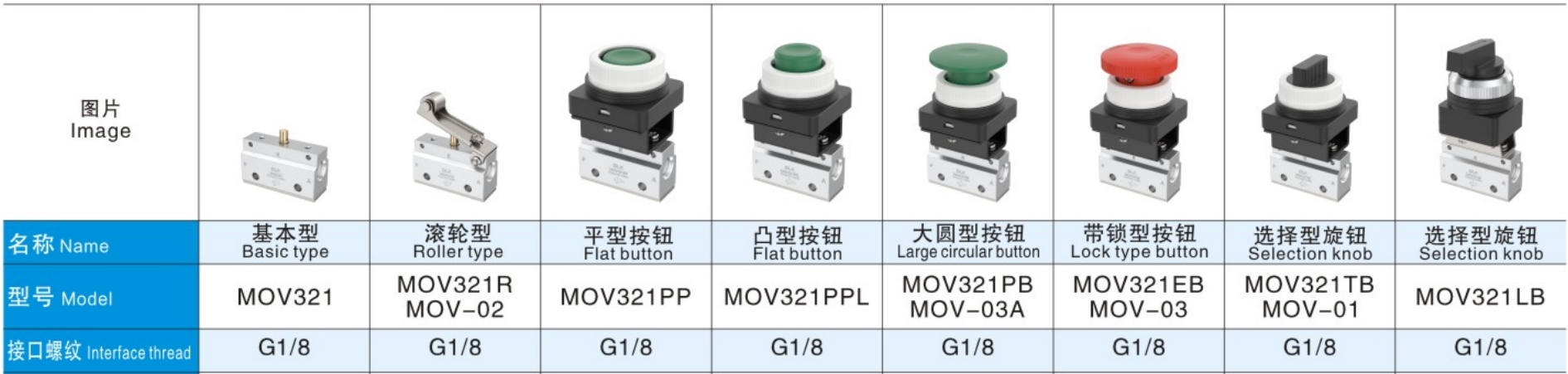

Available button types include:

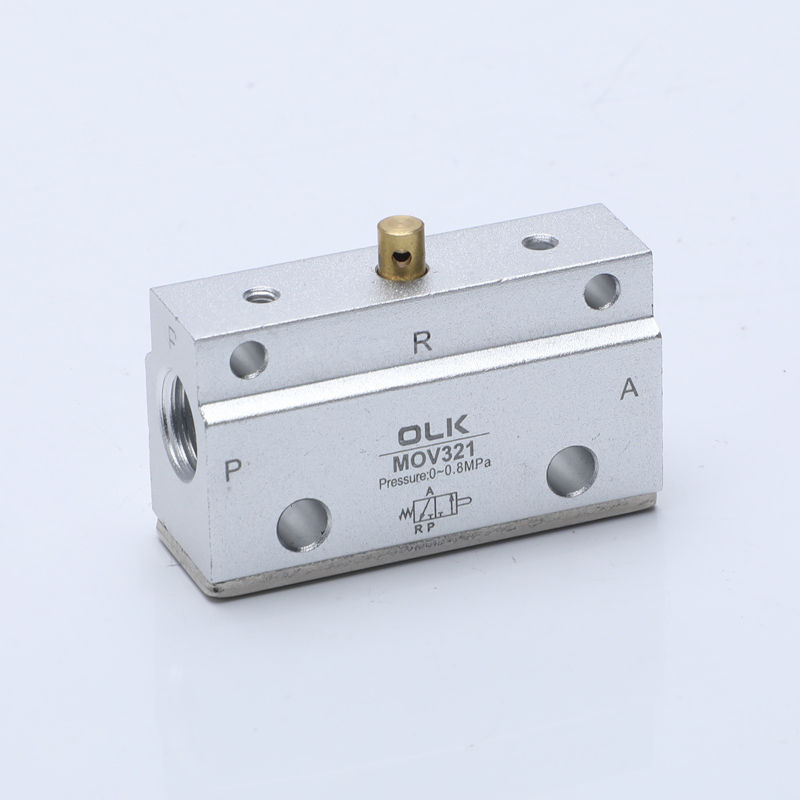

- Basic Type (MOV321)

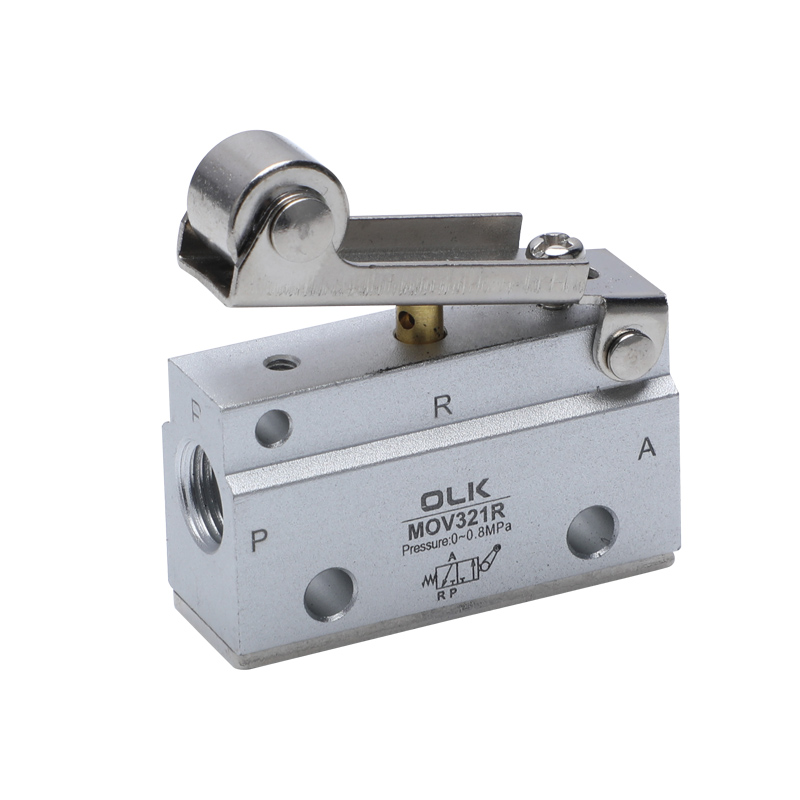

- Roller Type (MOV321R/MOV-02)
- Flat Button (MOV321PP)

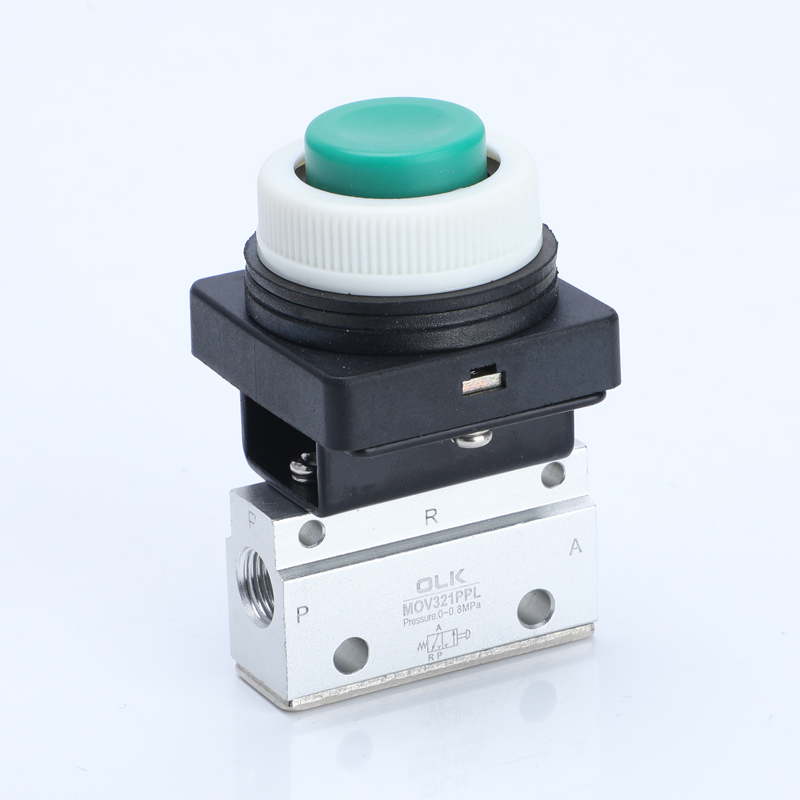

- Raised Button (MOV321PPL)

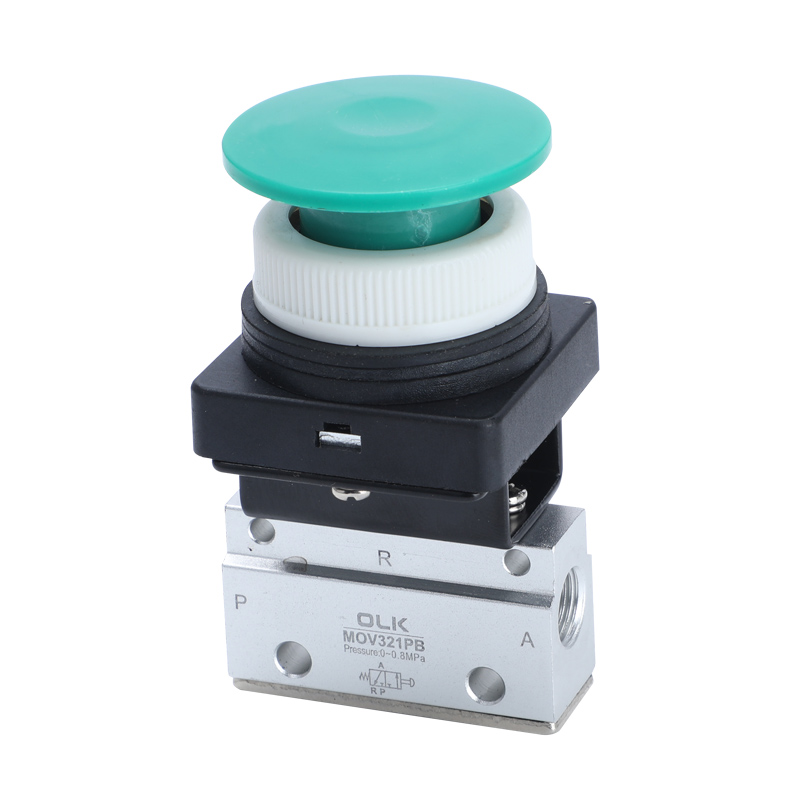

- Large Round Button (MOV321EB/MOV-03A)

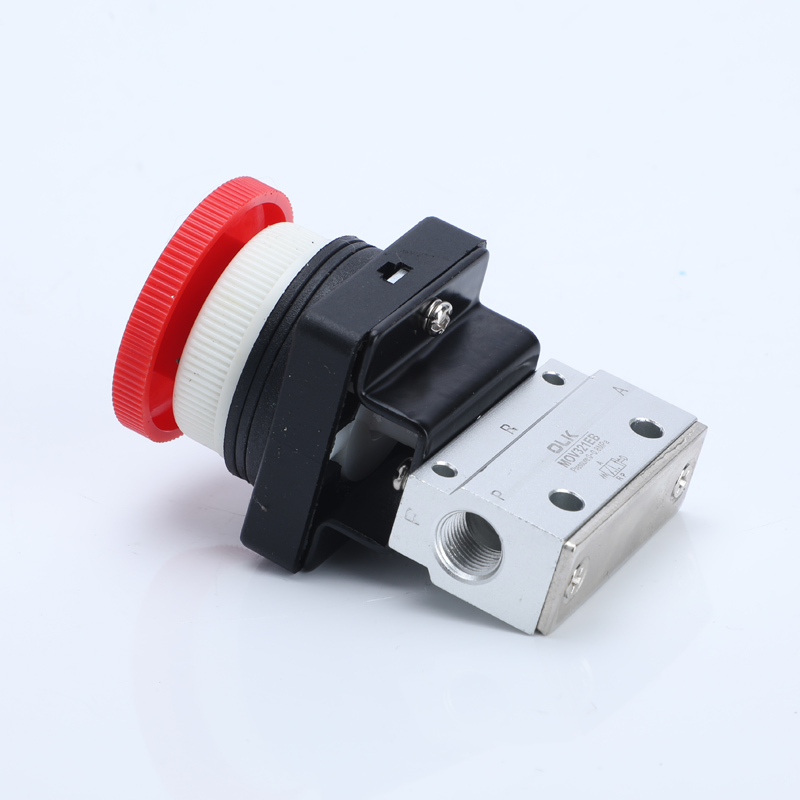

- Locking Button (MOV321EB/MOV-03)

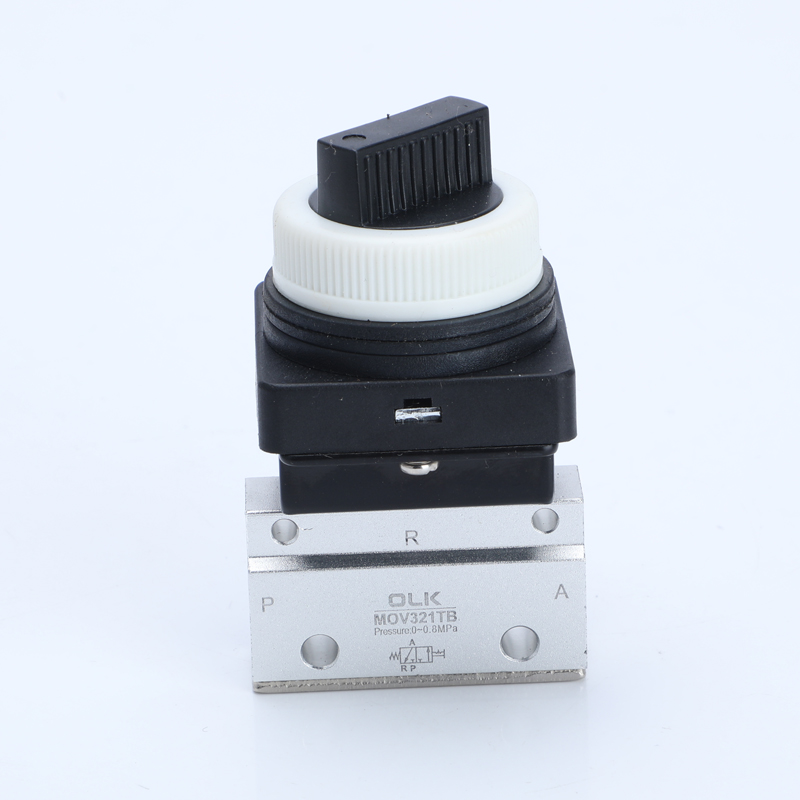

- Selector Button (MOV321TB/MOV-01)
- Selector Knob (MOV321LB)
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
External direct acting |
|
Port diameter |
G1/8 |
|
number of positions |
Two position three way |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0∼0.8(0~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-5∼60 |
|
Body material |
aluminum alloy |
