MV322 Series Mechanical Button Control Valve 3 Way

Model:MV322R

As a professional MV322 Series Mechanical Button Control Valve 3 Way manufacture, you can rest assured to buy MV322 SERIES Mechanical button control valve from our factory and OLK will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

OLK mechanical valve have a variety of structural sahpes.MV22 3/2 way mechanical button control heads valve suitable for a wide range of working conditions,it is the ideal choice for industrial pneumatic control.

Symbol

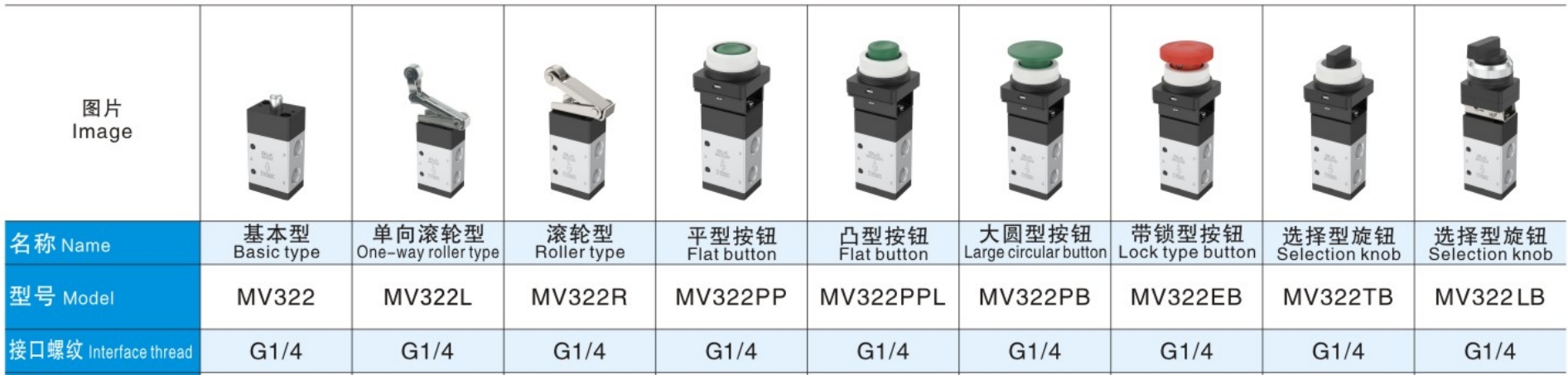

MV	32	2	R
MODEL:	POSITION NO:	PORT SIZE:	BUTTON TYPE:
MV mechanical valve	32:2 position 3 way	2:G1/4	Blank:Basic type(MV322)
			R:Roller Type (MV322)
			PP:Flat Button (MV322PP)
			PPL:Convex Button (MV322PPL)
			PB:Large Circular Button (MV322PB)
			FB:Lockable Type (MV322EB)
			TB:Selector Button Type (MV322TB)

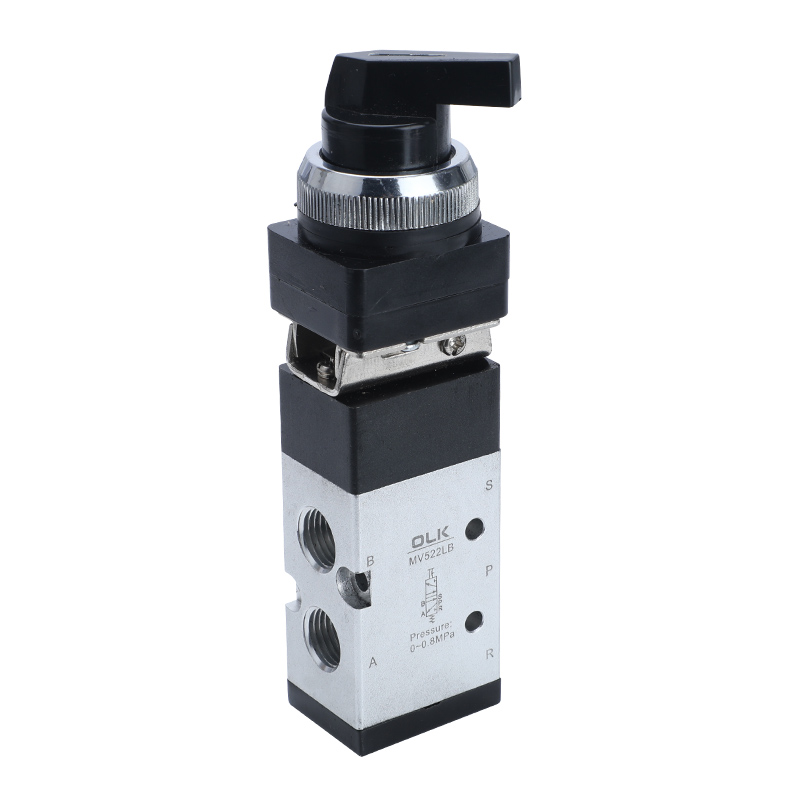

			LB:Selector Knob Type (MV322LB)

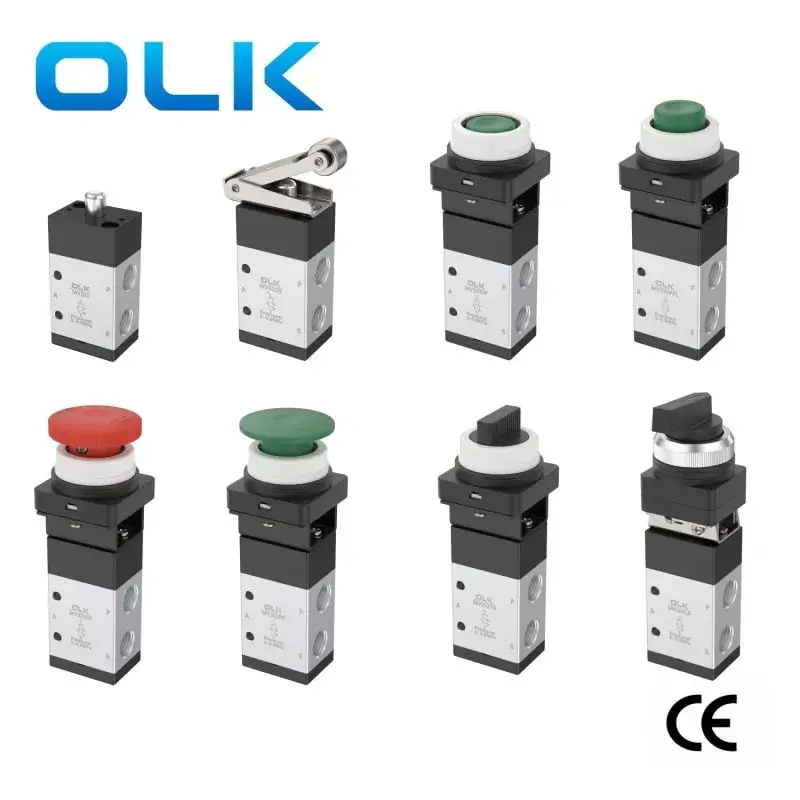

Button head types:

- Basic Type (MV322)

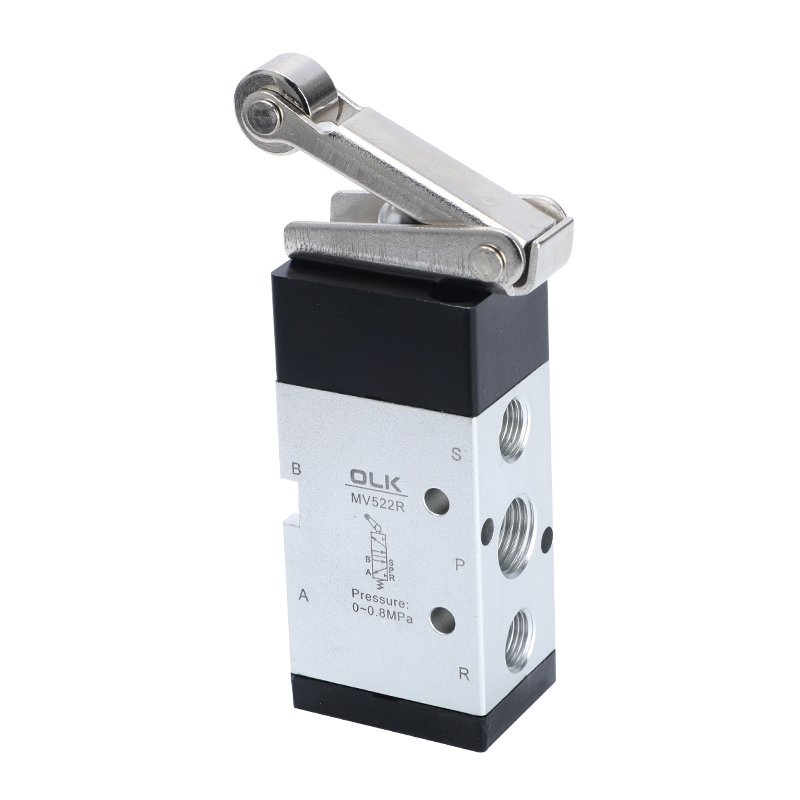

- Roller Type (MV322R)

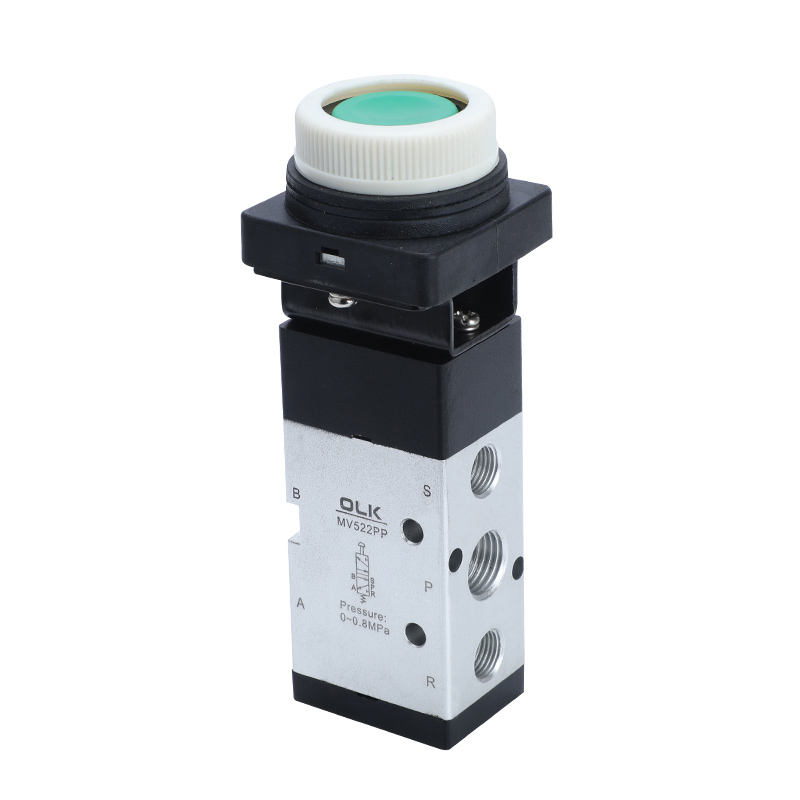

- Flat Button (MV322PP)

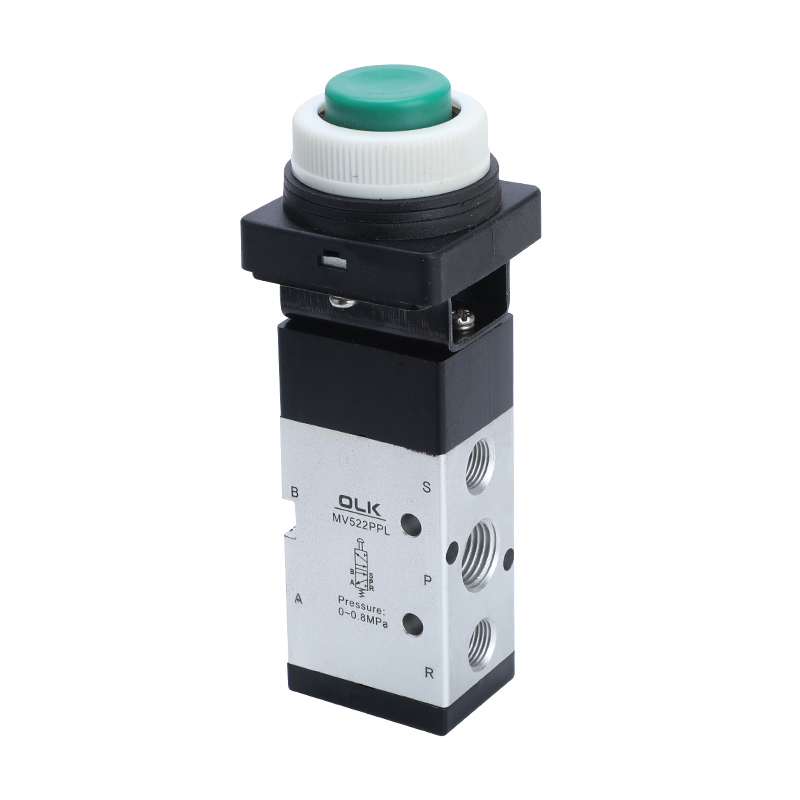

- Convex Button (MV322PPL)

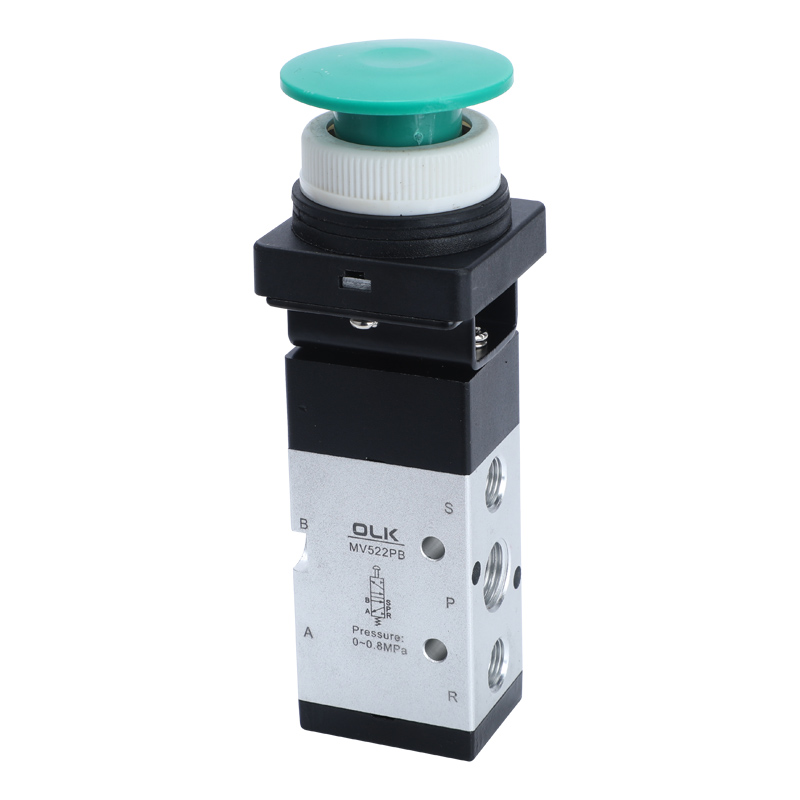

- Large Circular Button (MV322PB)

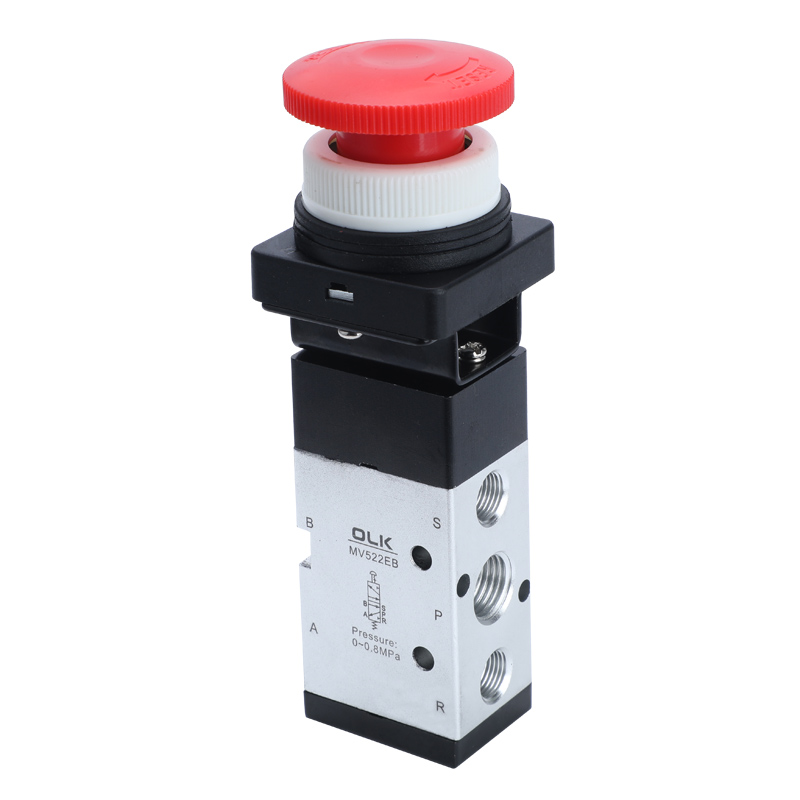

- Lockable Type (MV322EB)

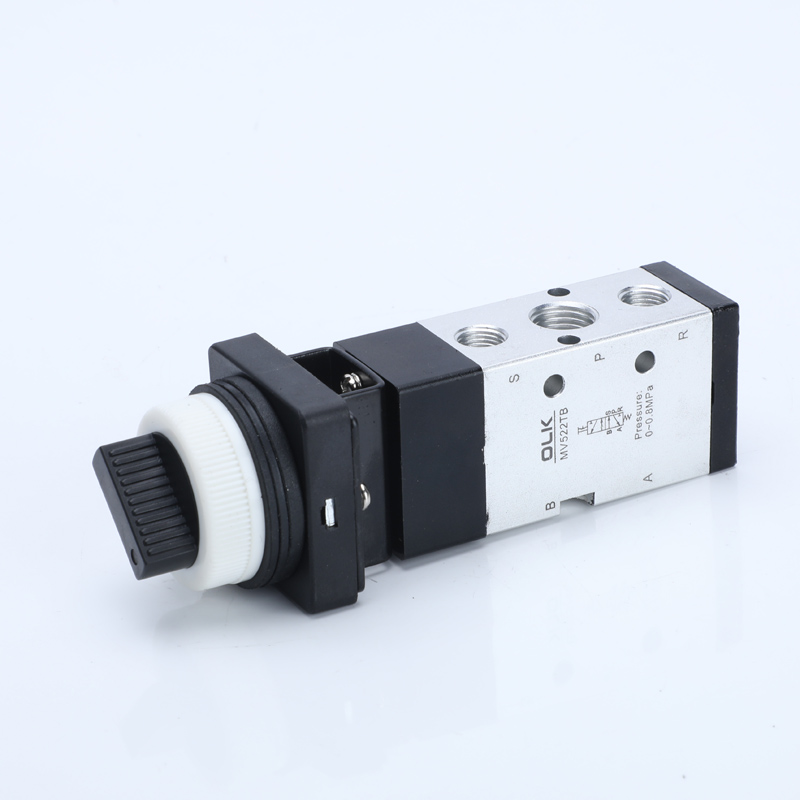

- Selector Button Type (MV322TB)

- Selector Knob Type (MV322LB)

MV322 SERIES Mechanical button control valve 3 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	External Control Direct Action
Port diameter	08:G1/4
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-5∼60
Body material	aluminum alloy
