MV522 Series Mechanical Button Control Valve 5 Way

Model:MV522R

As the professional manufacture, OLK would like to provide you MV522 Series Mechanical Button Control Valve 5 Way. And Ouleikai will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

OLK direct-acting structure MV522 5/2 way mechanical valve has a simple structure,using high-quality sealing ring for excellent airtightness,good insulation performance,and resistance to heat and corrosion.

The MV522 mechanical button valve thread is G1/4,with a pressure rang of 0-0.8Mpa,and it does not require lubrication.Making it easy to maintain and service,reducing downtime and mainteance costs.

Symbol:

Ordering code
MV	52	2	R
MODEL:	POSITION NO.	PORT SIZE:	BUTTON TYPE:
MV mechanical valve	52:2 position5 way	2:G1/4	Blank:basic type
			R:Roller Type
			TB:Selector Button Type
			EB:Lockable Type
			PP:Flat Button
			PPL:Convex Button
			PB:Large Circular Button

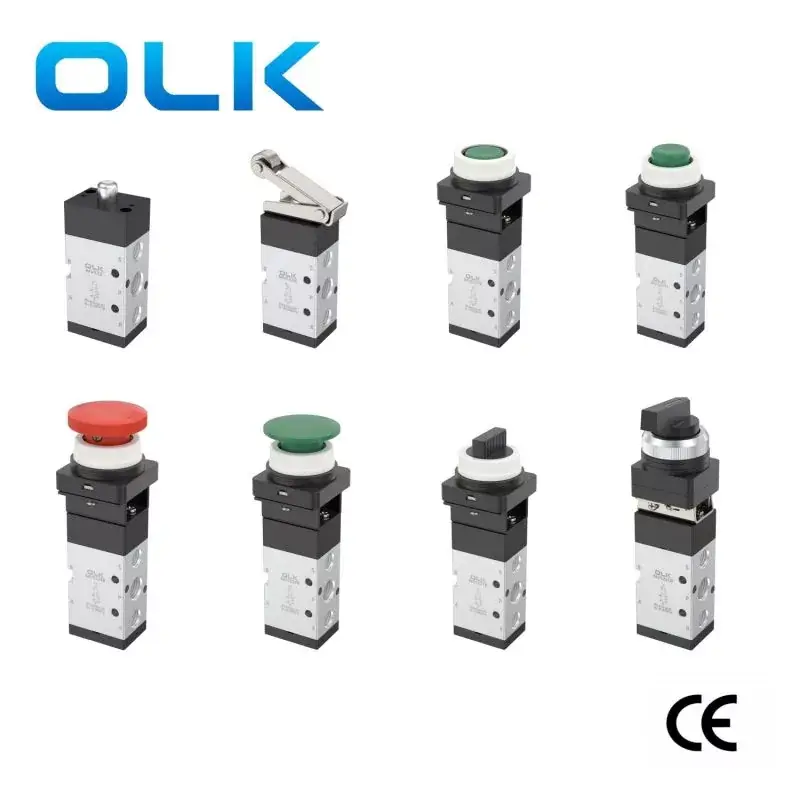

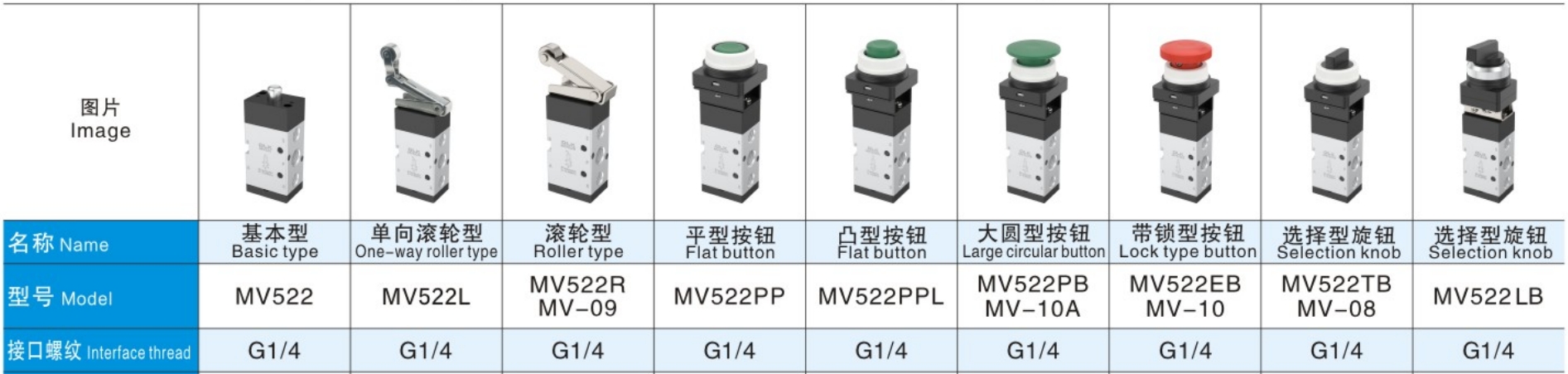

Button head types include:

- Basic Type (MV522)

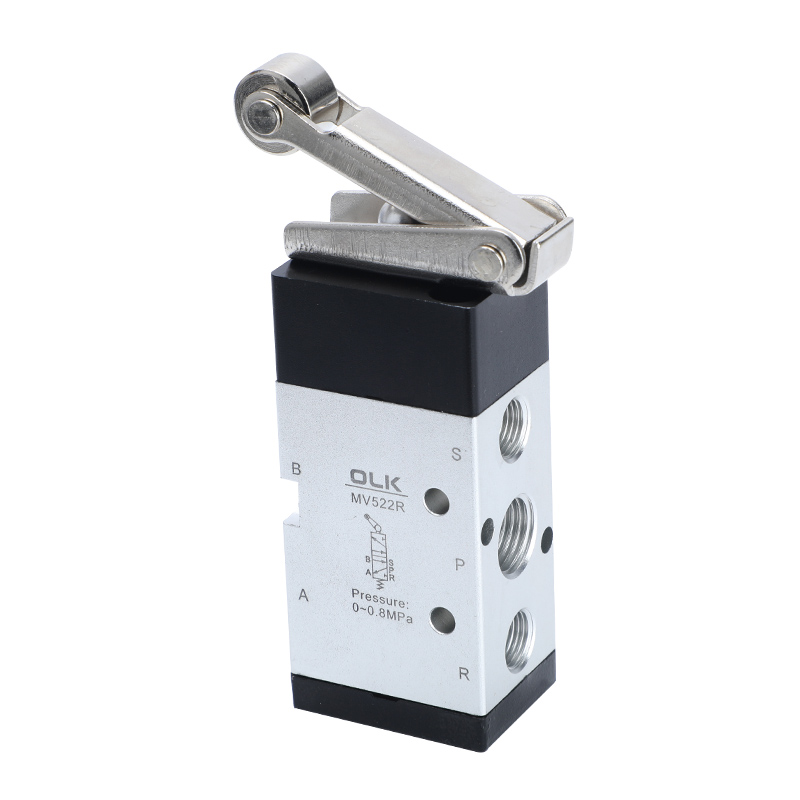

- Roller Type (MV522/MV-09)

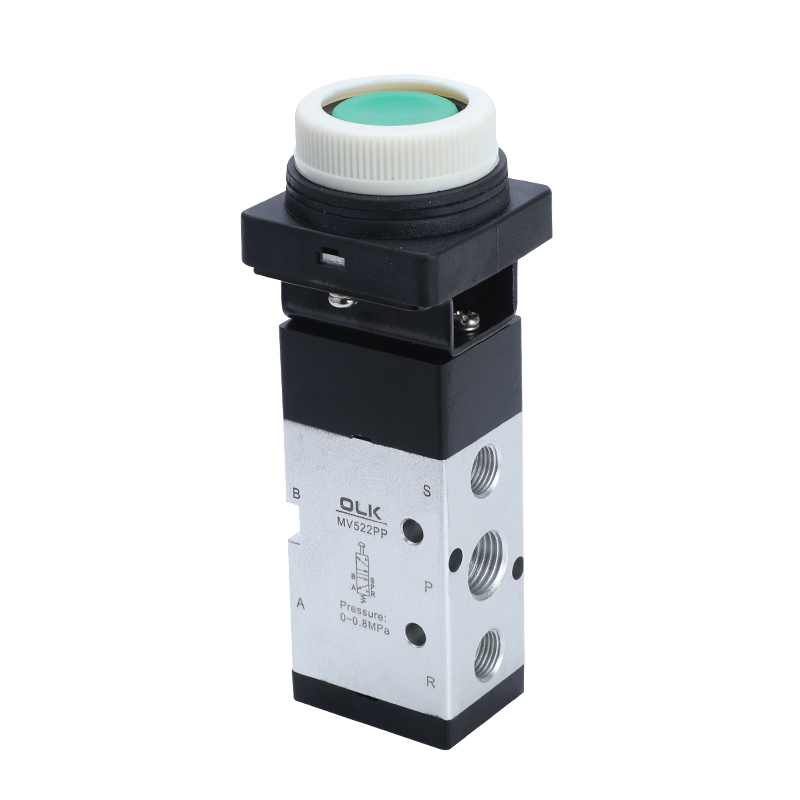

- Flat Button (MV522PP)

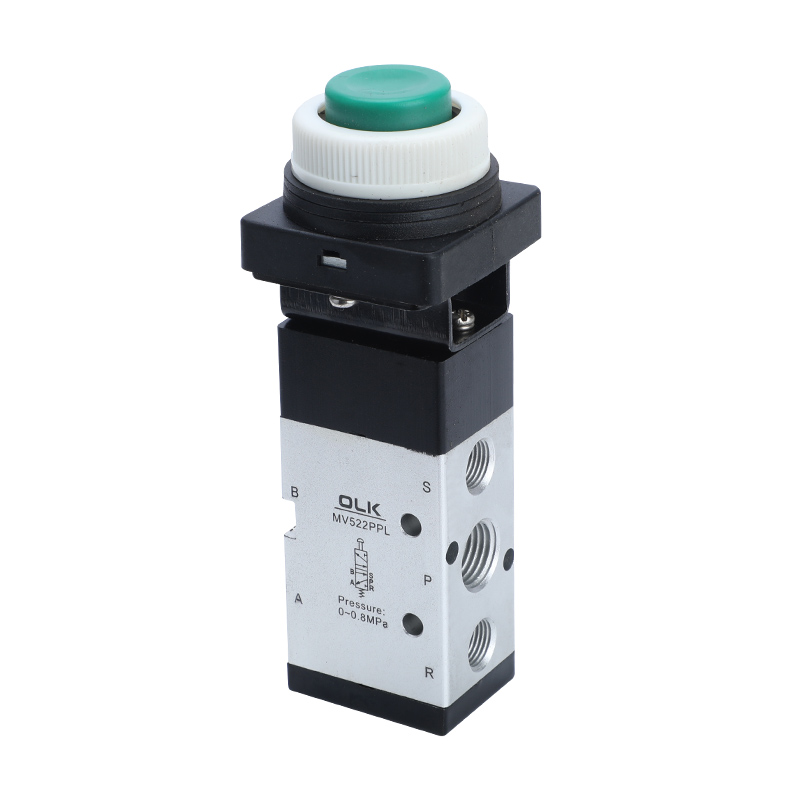

- Convex Button (MV522PPL)

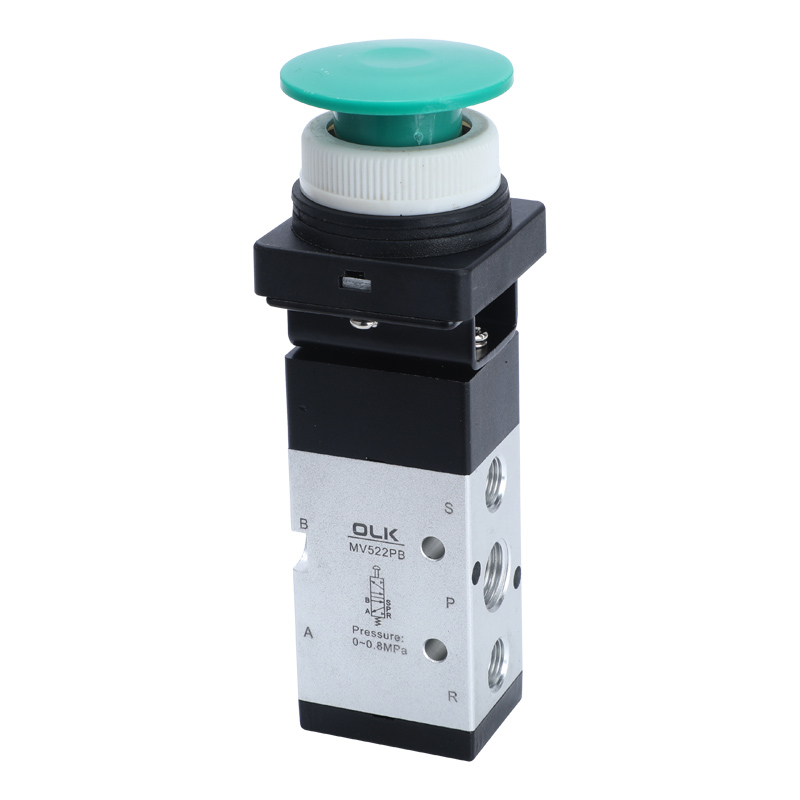

- Large Circular Button (MV522PB/MV-10A)

- Lockable Type (MV522EB/MV-10)

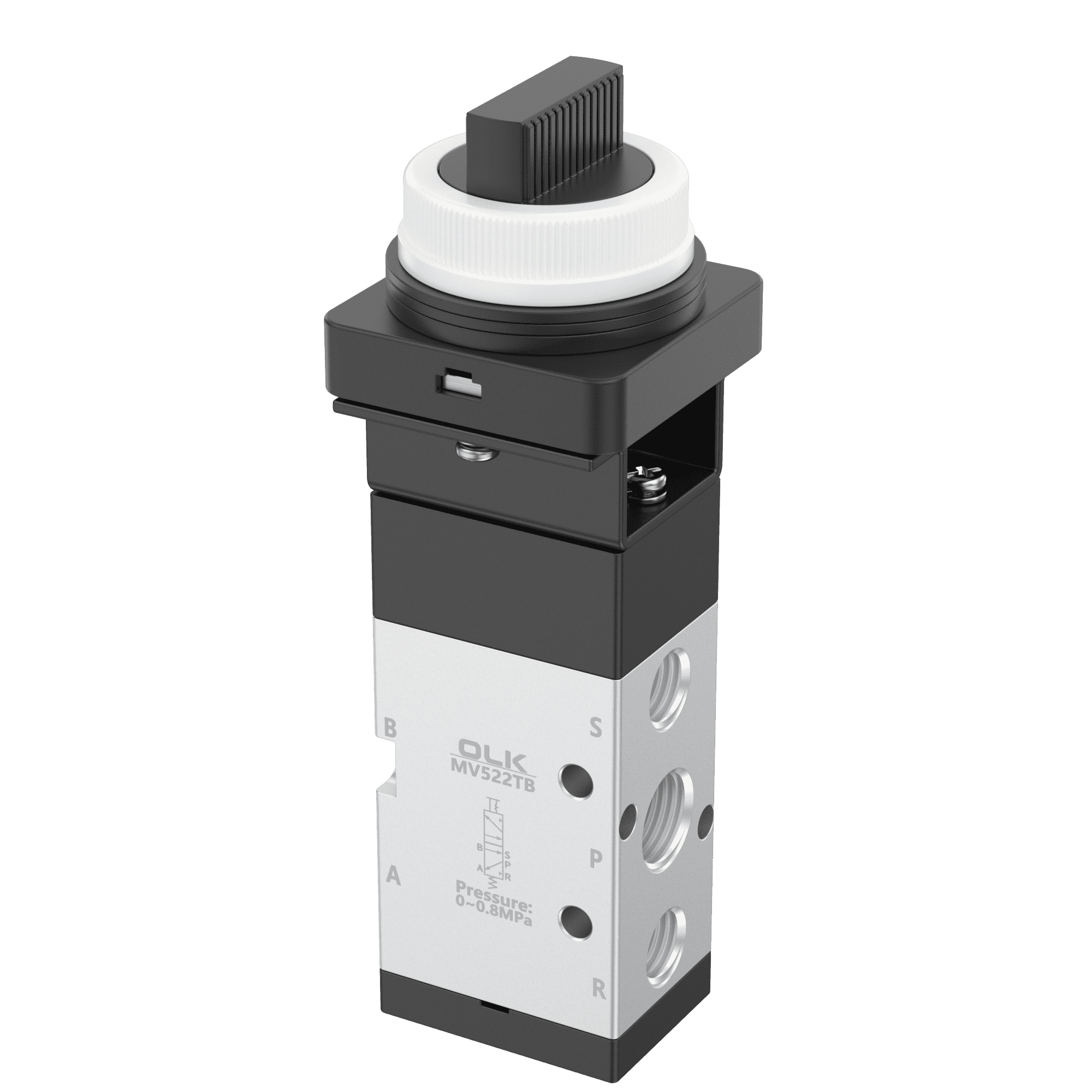

- Selector Button Type (MV522TB/MV-08)

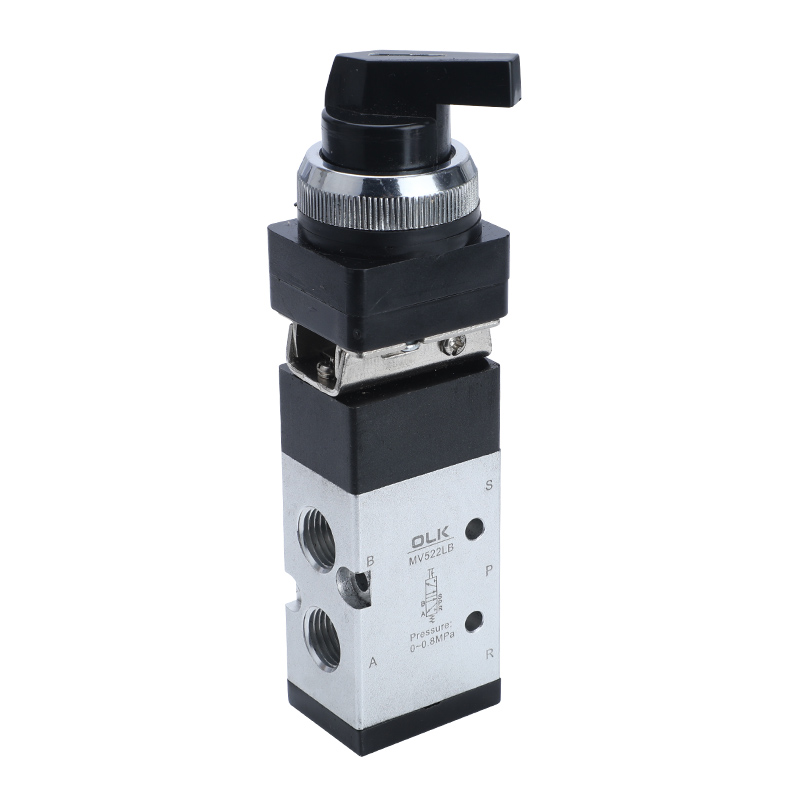

- Selector Knob Type (MV522LB)

MV522 SERIES Mechanical button control valve 5 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	External Control Direct Action
Port diameter	08:G1/4
number of positions	2 position 5 way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-5∼60
Body material	aluminum alloy
