M3 Series Mechanical Button Control Valve 3 Way

Model:M3B

Welcome to wholesale or customized M3 Series Mechanical Button Control Valve 3 Way from our factory at any time. We will provide you with factory discount prices for our products. OLK pneumatic is M3 series mechanical button control valves 3 way manufacturers and suppliers in China.

Send Inquiry PDF DownLoad

Product Description

The ouleikai M3 series airtac-type 3/2 way mechanical valve have 2 operating states and 3 path selections.M3 mechanical valve suitable for diffrent pneumatic control scenarios.The piston-type structure M3 mechanical valve control force is unaffected by working pressure.They are stable, reliable, and durable, suitable for long-term stable working environments, such as pneumatic control in automated production lines like assembly lines and packaging lines.

Symbol:

Ording code
M3	PM	210	06	R
SERIES	Button type	code	PORT SIZE	Button color

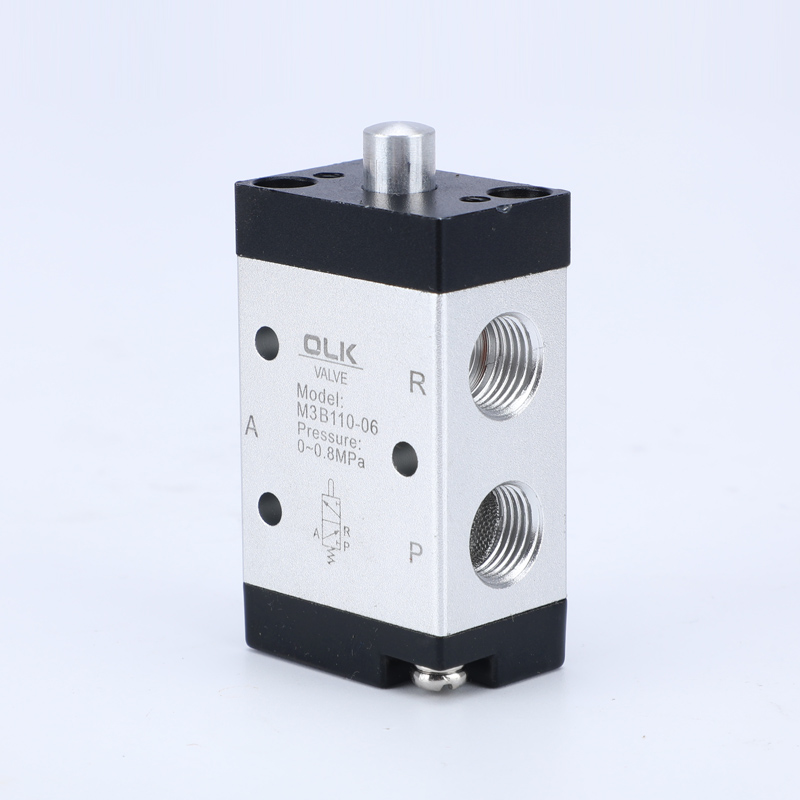

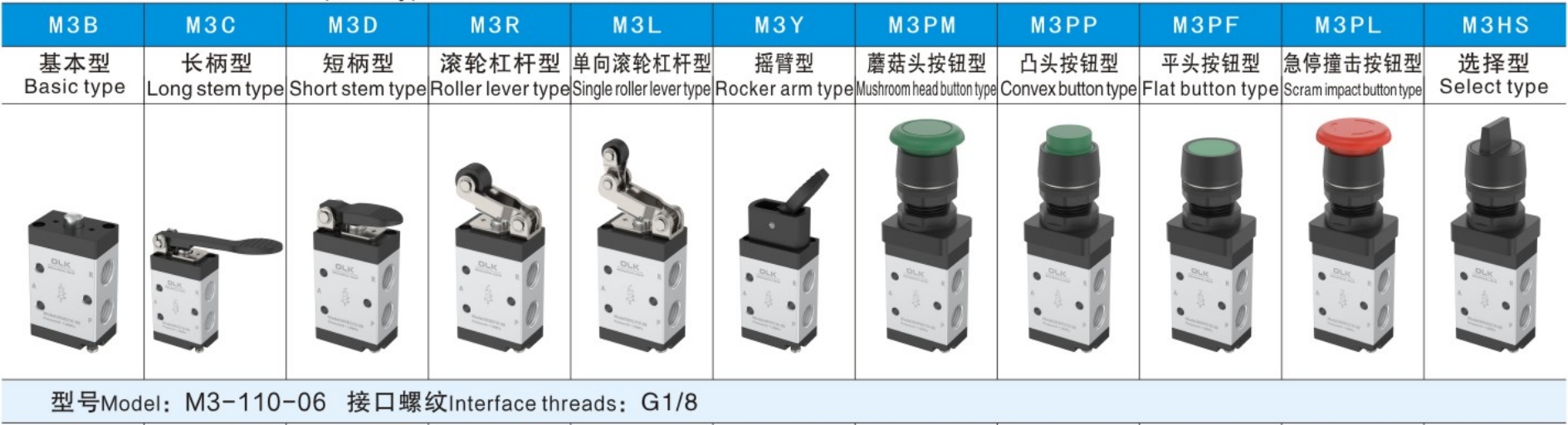

M3:Mseries 2 position 3 way	B:Basic Type (M3B)	110:110 series single control	100:06:G1/8	PL:RED
	C:Long Handle Type (M3C)	210:210 series single control	200:06:G1/8	PP/PF/PM/HS:RED GREEN BLACK

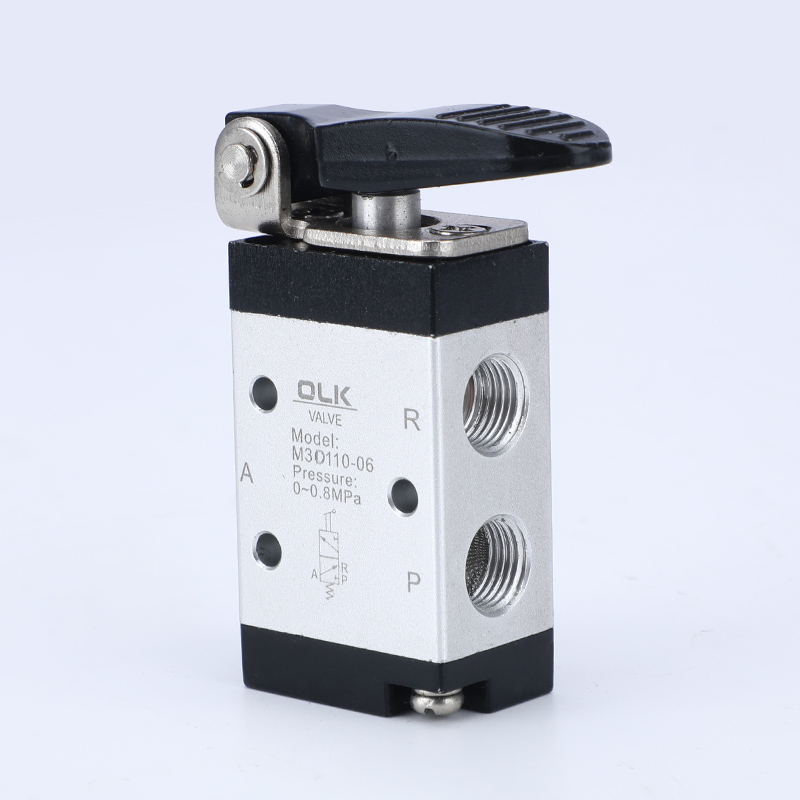

	D:Short Handle Type (M3D)		200:08:G1/4

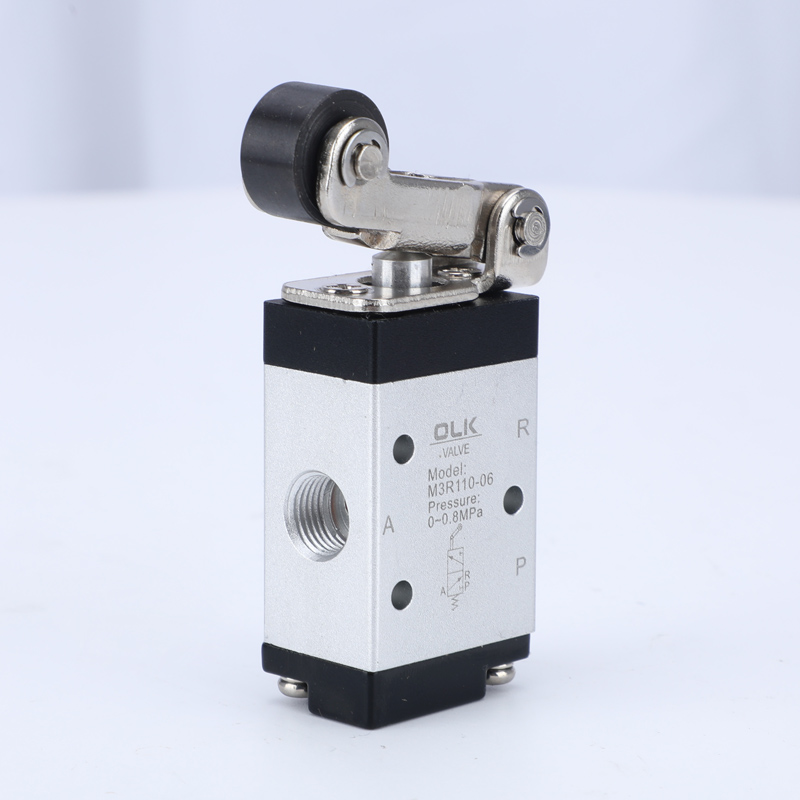

	R:Roller Lever Type (M3R)

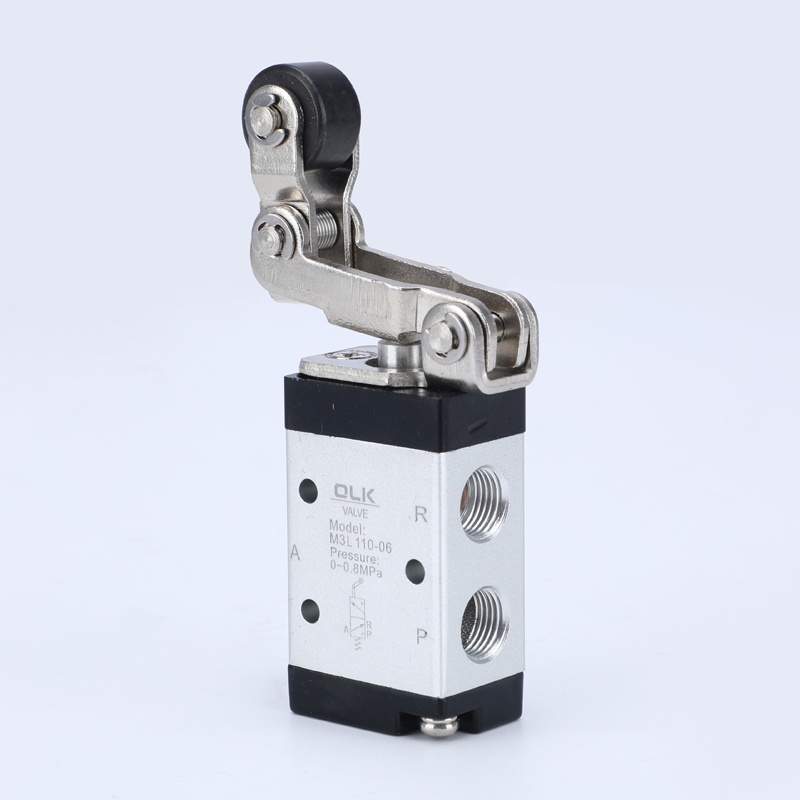

	L:Unidirectional Roller Lever Type (M3L)

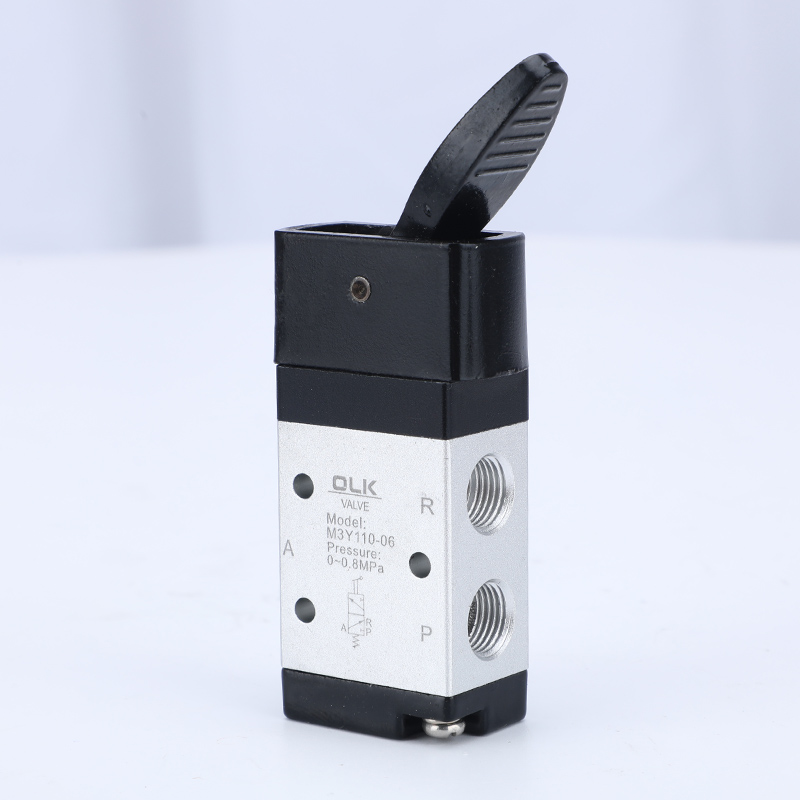

	Y:Rocker Arm Type (M3Y)

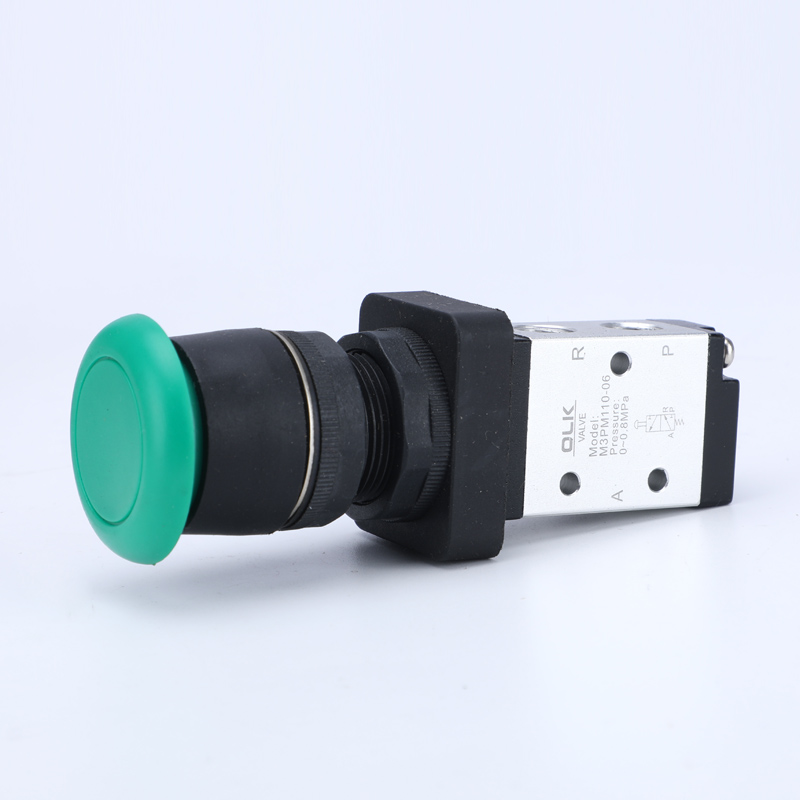

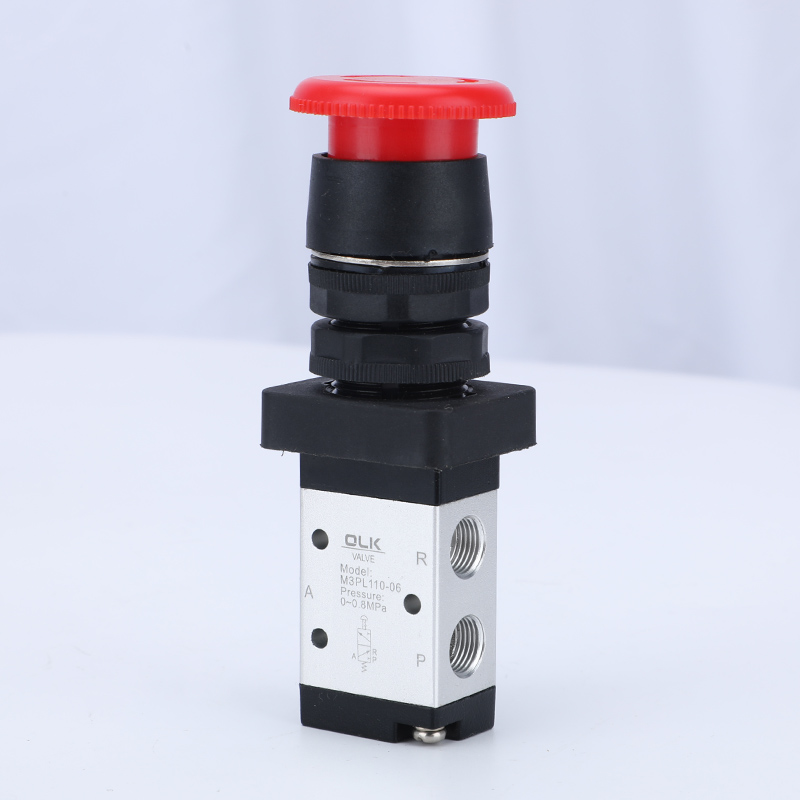

	PM:Mushroom Head Button Type (M3PM)

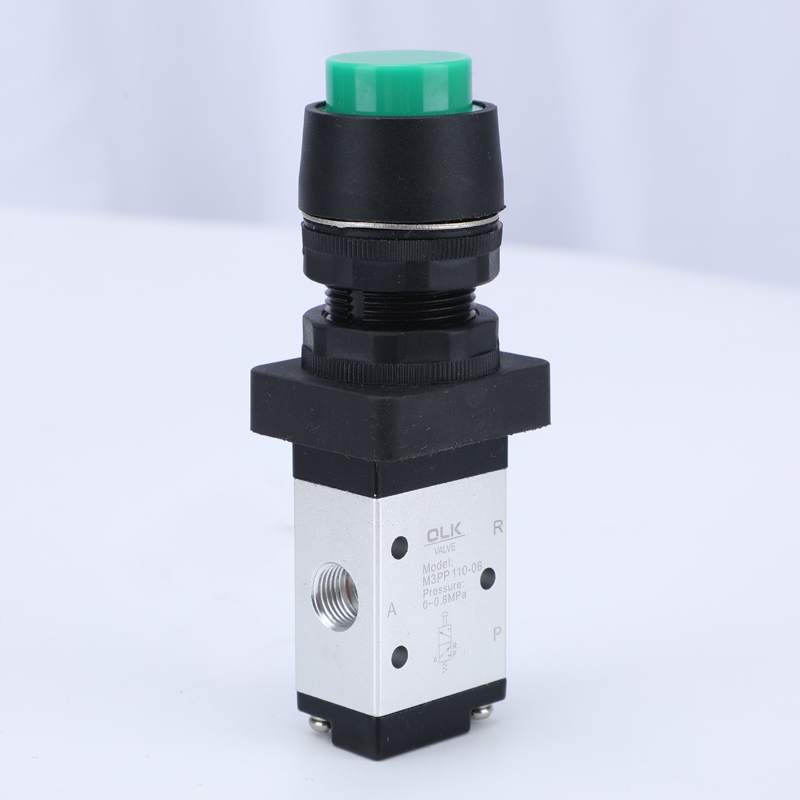

	PP:Raised Head Button Type (M3PP)

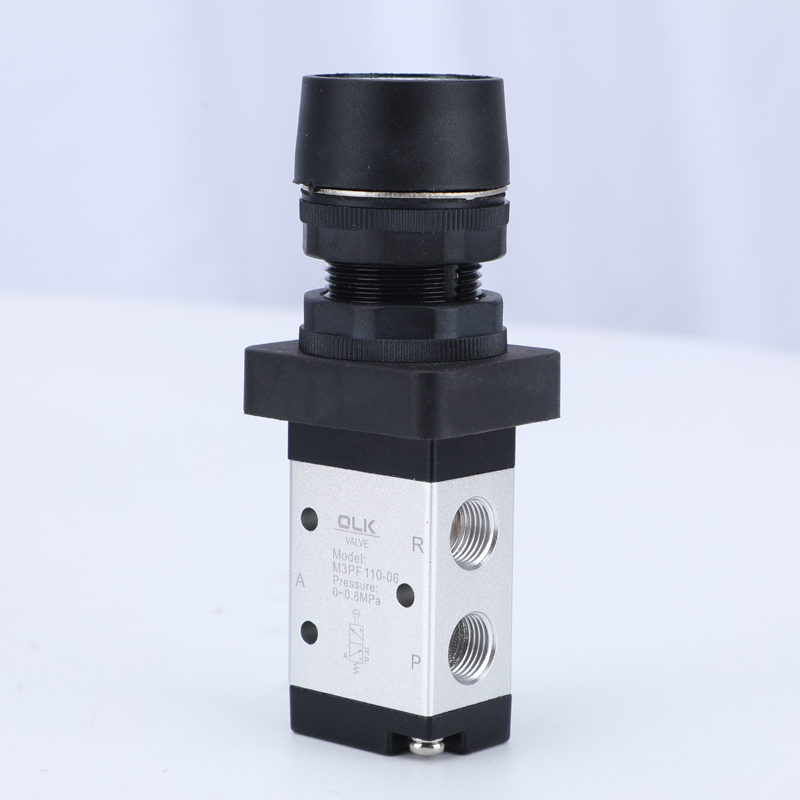

	PF:Flat Head Button Type (M3PF)
	PL:Emergency Stop Impact Button Type (M3PL)
	HS:Selector Type (M3HS)

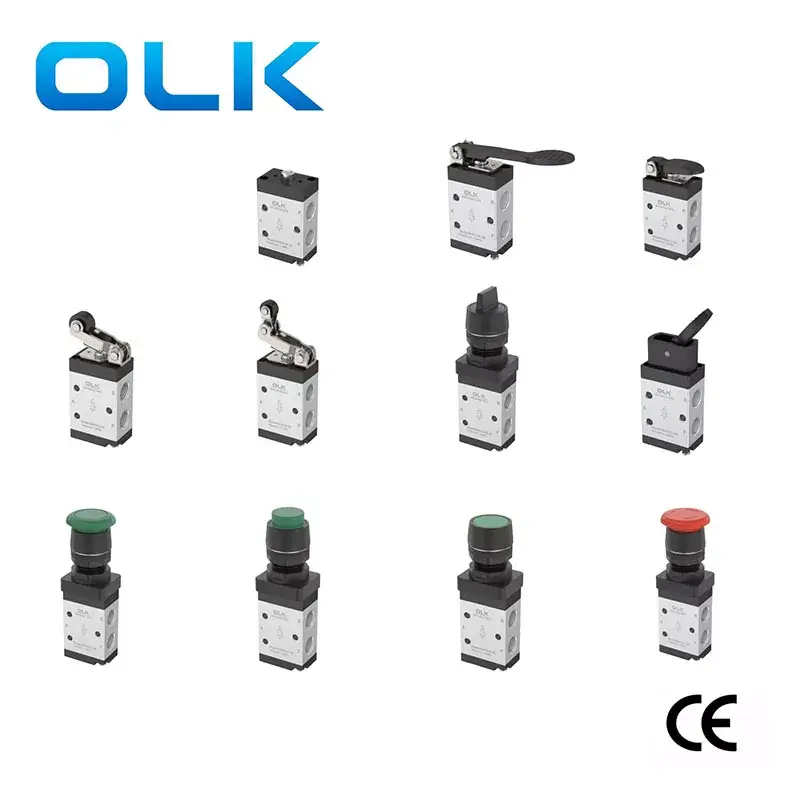

OULEIKAI M3 series 2/3 mechanical button control valves Product characteristics

1. The exhaust port is located on the body, facilitating the installation of a muffler to reduce noise and pollution.

2. The M3B, M3R, and M3L series require external forces for switching provided by external mechanisms, suitable for position detection or stroke switches.

3. The M3C, M3D, M3Y, M3PF, M3PM, M3PP, and M3PLM3HS series are manually operated, with various structural shapes of control heads for convenient use under different conditions.

4. Piston-type structure, control force is not affected by working pressure (i.e., no back pressure), inner ring sealing, excellent sealing, and flexible switching.

5. No need for oil lubrication.

6. Convenient installation and use with multiple position mounting.

7. The control heads of the M3C, M3D, M3Y, M3R, and M3L series are made of metal material for long life and greater reliability.

M3 SERIES Mechanical button control valve 3 way General parameters

Model

M3B

M3C

M3D

M3R

M3L

M3Y

M3PM

M3PP

M3PF

M3PL

M3HS

Working medium

Air（Filter through a filter screen of over 40μm）

Action mode

External control direct acting type

Port Size

05:M5;06:G1/8;08:G1/4

Effective cross-sectional area

MINI

05:2.5mm²（Cv=0.14）

110

06:8.0mm²（Cv=0.45）

210

06:9.0mm²（Cv=0.5）; 0.8:12.0mm²（Cv=0.67）

Position

3/2 Port

NO NEED

Pressure range

0-1.0MPa (0-145psi)

Proof pressure

1.5MPa (215psi)

Woking Pressure

‘-20-70℃

Body Material

Aluminum Alloy

M3 SERIES Mechanical button control valve 3 way Installation and application:

Precautions

1) The control part is made of engineering plastic, and only manual operation is allowed. Do not use metal impact to switch the valve.

2) The M3B, M3C, M3D, M3PM, M3PF, and M3PP series are automatically reset. M3Y, M3HS, and M3PL manual valves are manually reset. After pressing the M3PL into the treasure position, the rotary knob needs to be rotated to reset.

3) Pay attention to the reversing stroke. When any external force causes the valve to reverse, the basic reversing stroke should not exceed the range of reversing stroke specified in the control stroke table, otherwise it will cause damage to the valve body.

4) The M3L one-way roller valve can only switch in one direction (hitting from right to left). Invalid impact in the other direction (curved left to right).

5) The control head combination can be ordered separately.
