S3 Series Mechanical Button Control Valve 3 Way

Model:S3B

Welcome to wholesale or customized S3 Series Mechanical Button Control Valve 3 Way from our factory at any time. We will provide you with factory discount prices for our products. OLK pneumatic is S3 series mechanical valve manufacturers and suppliers in China.

Send Inquiry

Product Description

You can rest assured to buy S3 Series Mechanical Button Control Valve 3 Way from our factory and we will offer you the best after-sale service and timely delivery.Ouleikai (OLK) manufactures the compact and externally controlled direct-acting 3-way 2-position S3 series mechanical valve. It features flexible switching and can be installed in multiple positions. The installation is very convenient and does not require oil lubrication. The control heads are available in both metal and plastic materials, with the metal material (S3C, S3D, S3Y, S3R, S3L) offering longer and more reliable lifespan. The control head combinations for the mechanical valve can be ordered separately from OULEIKAI Factory in China

OULEIKAI FLEXIBLE SWITCHINGS3 SERIES Mechanical button control valve 3 way Product characteristics

SYMBOL:

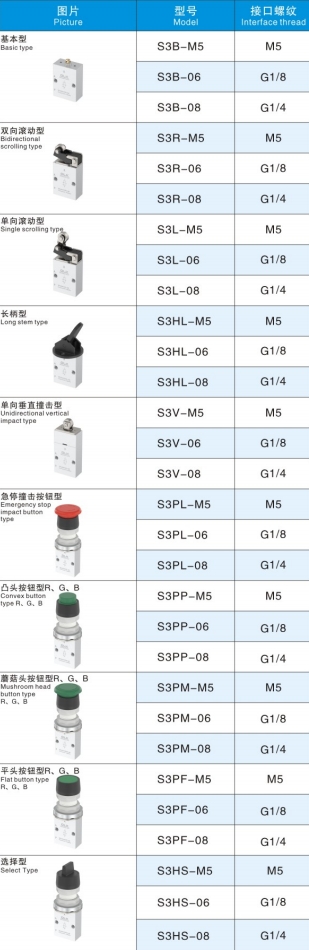

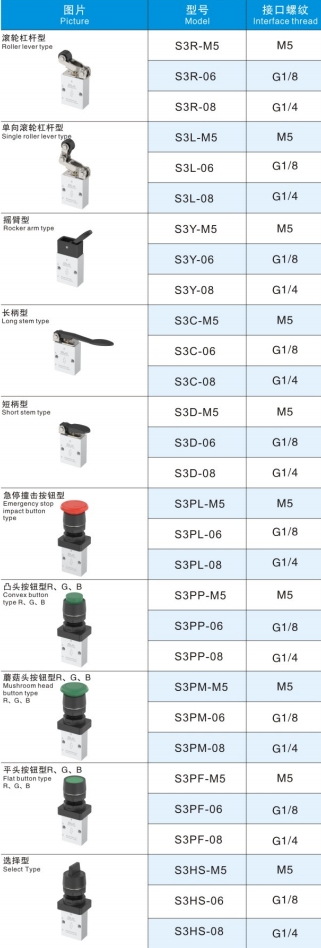

Ordering code
S3	PM	06	R
SERIES	CODE	PORT SIZE	BUTTON COLOR
S3 Series 2 positon 3 way	B:Basic Type (M5B)	100:06:G1/8	PL:RED

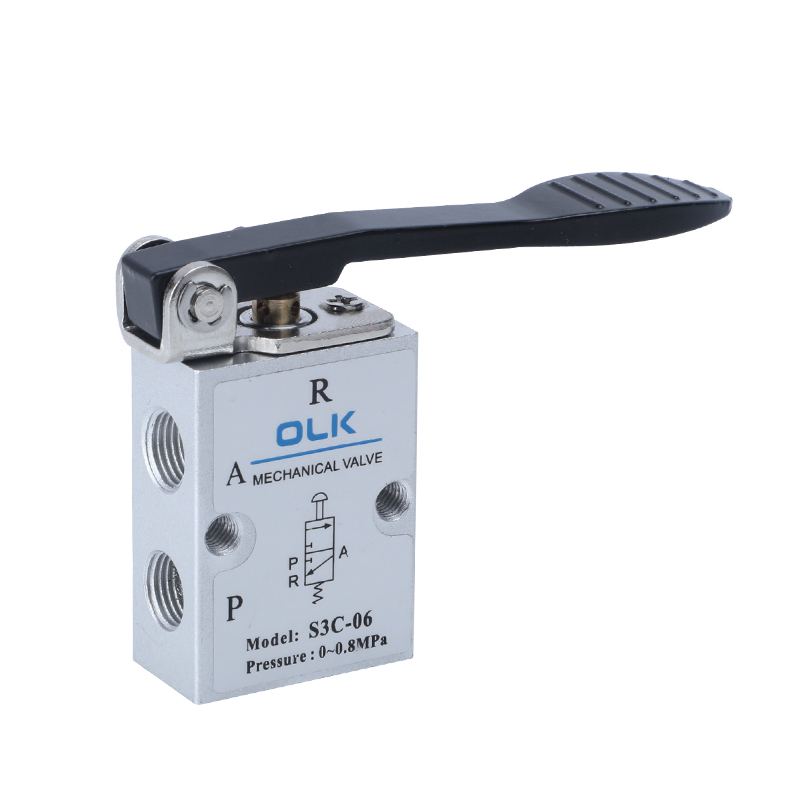

	C:Long Handle Type (M5C)	200:06:G1/8	PP/PF/PM/HS:RED,GREEN,BLACK

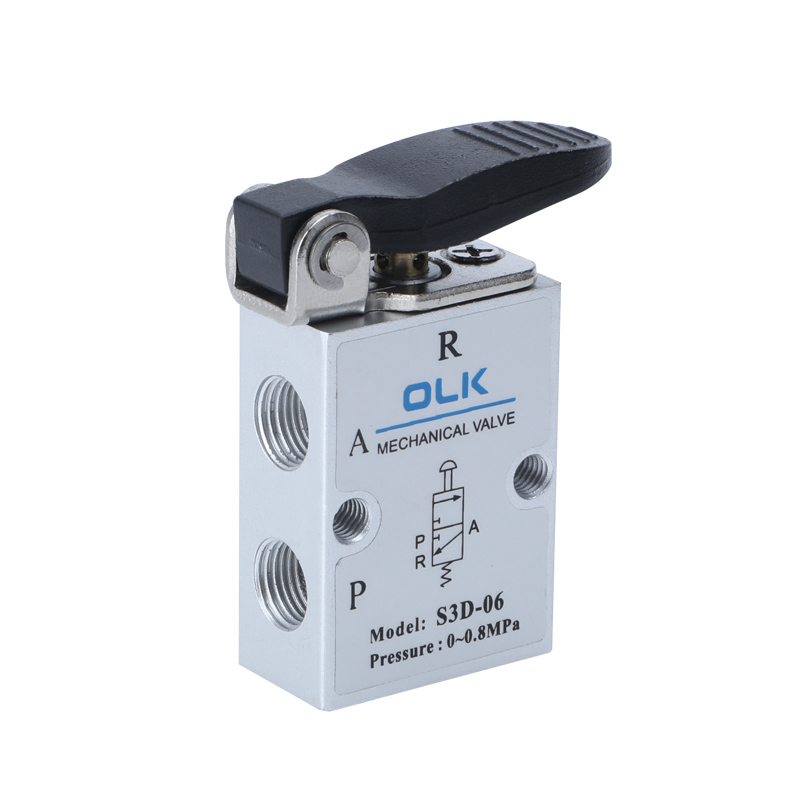

	D:Short Handle Type (M5D)	200:08:G1/4
	Y:Rocker Arm Type (M5Y)

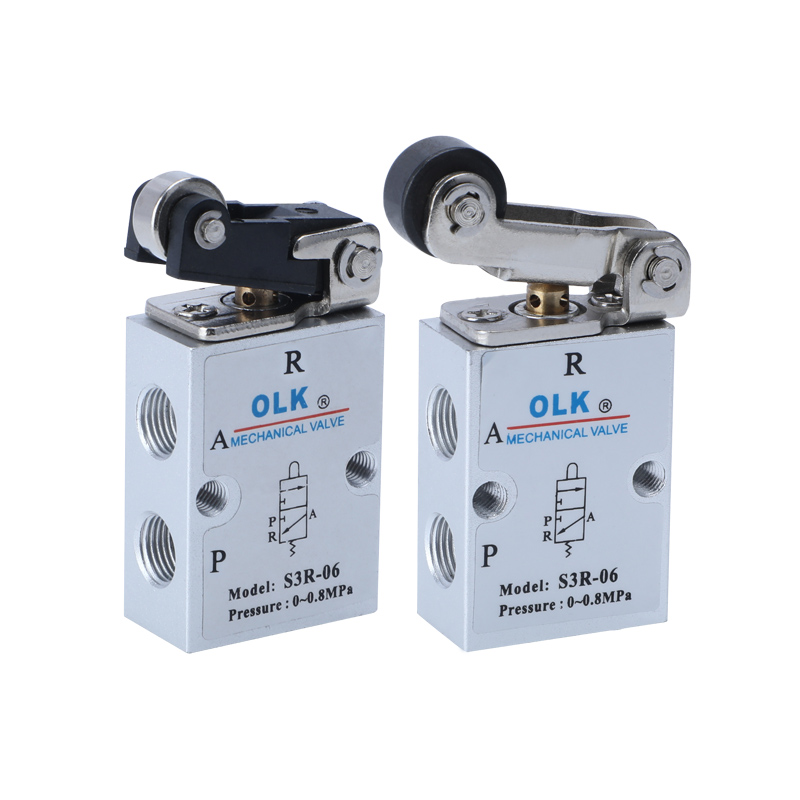

	R:Roller Lever Type (M5R)

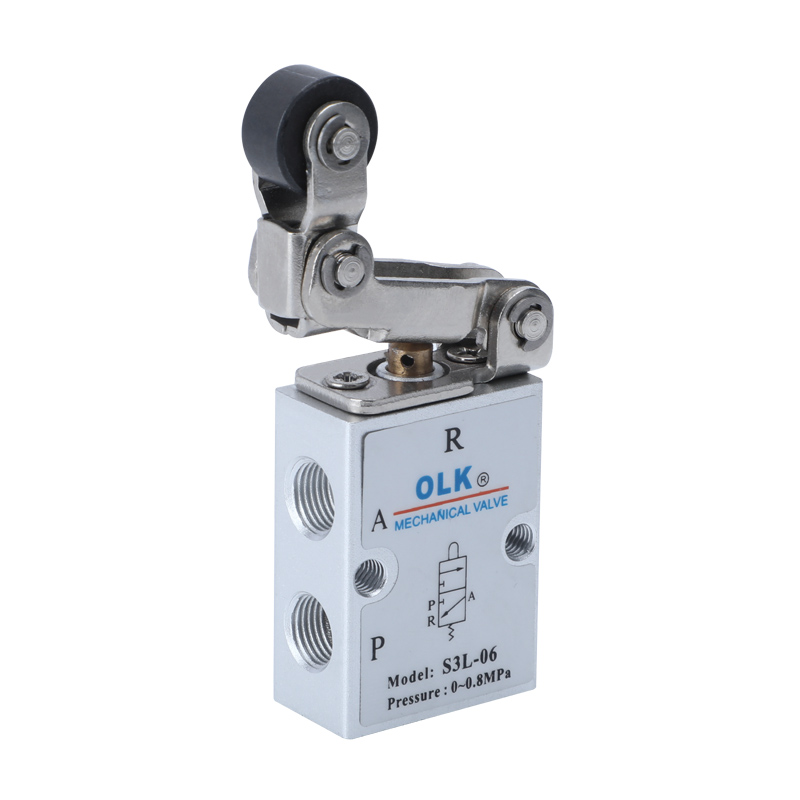

	L:Unidirectional Roller Lever Type (M5L)
	PL:Emergency Stop Impact Button Type (M5PL)
	PP:Raised Head Button Type (M5PP)
	PF:Flat Head Button Type (M5PF)
	PM:Mushroom Head Button Type (M5PM)
	HS:Selector Type (M5HS)

Product Features:

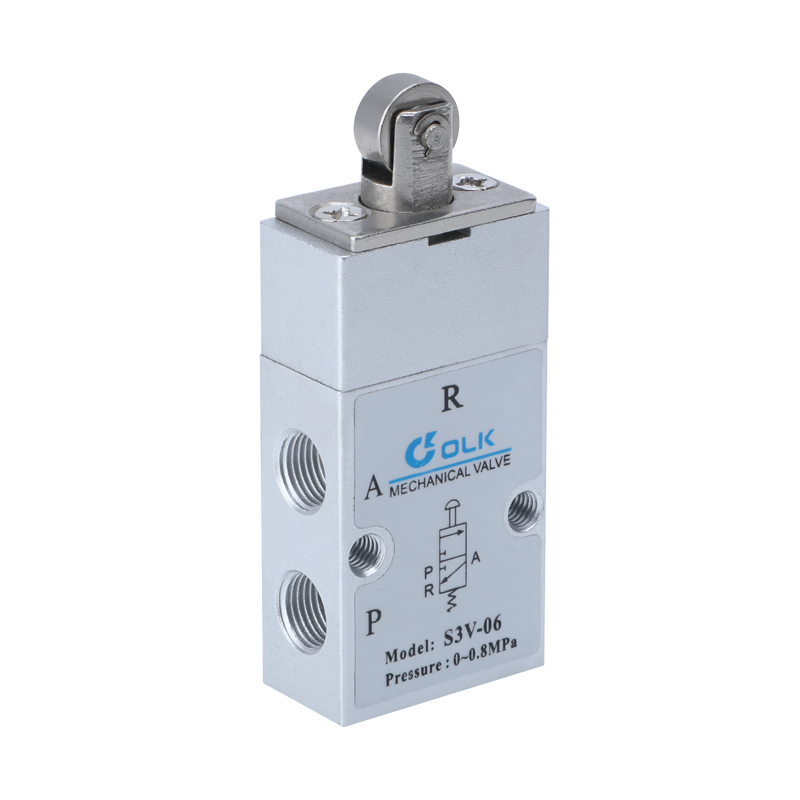

1. S3B, S3R, S3L, S3V series require external force provided by external mechanisms for switching, suitable for position detection or stroke switches.

2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, S3D series are manually operated, featuring various structural shapes of control heads for convenient use in different conditions.

3. Globe valve structure with excellent sealing, flexible switching, and no need for oil lubrication.

4. Easy installation with multiple mounting positions.

5. Control heads of S3C, S3D, S3Y, S3R, S3L series are made of metal material, ensuring long lifespan and greater reliability.

S3 SERIES Mechanical button control valve 3 way General parameters

working medium	Air (filtered through a filter over 40μm)
Action	External direct acting
Port diameter	05:M5,06:G1/8,08:G1/4
number of positions	Two position three way
lubricating	unnecessary
Working pressure range MPa(psi)	0∼0.8(0~114)
Guaranteed pressure resistance	1.5MPa (215psi)
Working temperature °C	-20∼70
Cross-sectional area mm² (CV value)	05:2.5(0.14),06:8(0.45),08:12(0.67)
Body material	aluminum alloy

S3 SERIES Mechanical button control valve 3 way Installation and application:

1) The control part is made of engineering plastic and is only allowed to be operated manually by hand. It is prohibited to use metal impact to switch the valve.

2) S3B, S3C, S3D, S3PM, S3PF, S3PP series are automatic reset. S3Y, S3HS, S3PL manual valves are manually reset. After pressing M3PL into the position, the rotary knob must be rotated to reset.

3) Pay attention to the switching stroke. When any external force causes the valve to switch, the basic switching stroke must not exceed the switching stroke range specified in the control stroke table, otherwise it may cause damage to the valve body.

4) S3L unidirectional roller valve can only switch in one direction (from right to left impact). Impact in the other direction (from left to right) is ineffective.

5) Control head combinations can be ordered separately.
