VM Series SMC-Type Mechanical Button Valve

As the professional manufacture, OLK would like to provide you VM Series SMC-Type Mechanical Button Valve. And Ouleikai will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Ouleikai (OLK) VM series SMC-type mechanical button valves are available in two functional types: 2-position 2-way and 2-position 3-way. The air inlet and outlet ports come in two interface types: side and bottom. The thread sizes for the ports include M5, G1/8, and PT1/4.

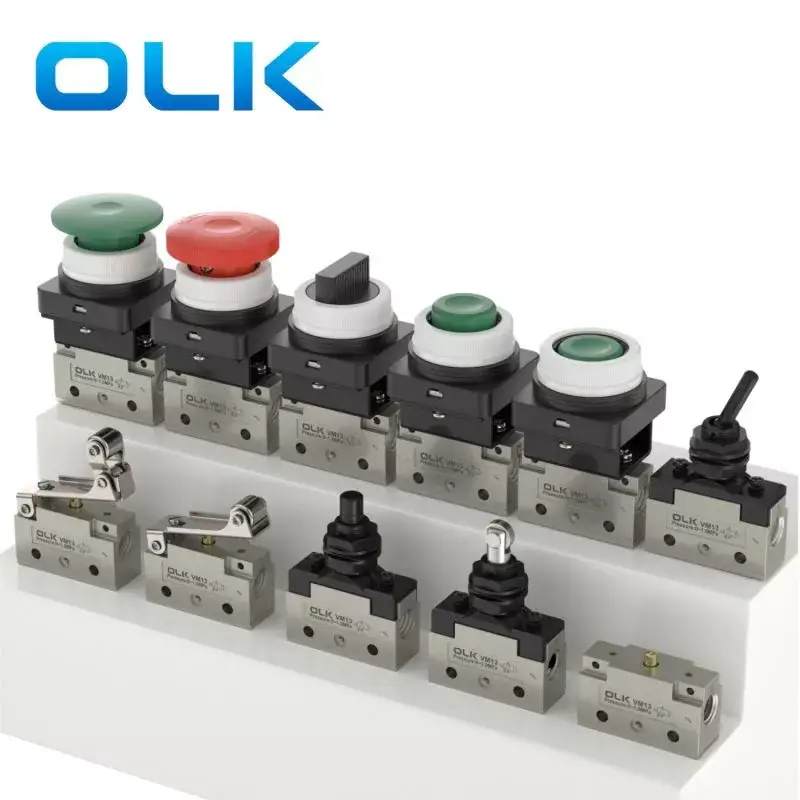

The button types are as follows:

- Basic (VM131-01-00)

- Roller (VM131-01-01)

- Single-direction Roller (VM131-01-02)

- Mushroom Button (VM130-01-30)

- Extended Head Button (VM130-01-32)

- Flat Head Button (VM130-01-33)

- Emergency Stop Button (VM130-01-37)

- Knob (VM130-01-34)

- Basic (VM230-02-00)

- Roller (VM230-02-01)

- Mushroom Button (VM230-02-30)

- Extended Head Button (VM230-02-32)

- Flat Head Button (VM230-02-33)

- Emergency Stop Button (VM230-02-37)

- Knob (VM230-02-34)

- Push Rod Type (VM132-M5-05)

- Impact Type (VM132-M5-06)

- Rocker Arm Type (VM132-M5-08)

- Basic (VM133-M5-001)

- Roller (VM133-M5-01)

- Single-direction Roller (VM133-M5-02)

- Mushroom Button (VM132-M5-30)

- Extended Head Button (VM132-M5-32)

- Flat Head Button (VM132-M5-33)

- Emergency Stop Button (VM132-M5-37)

- Knob (VM132-M5-34)

The buttons are available in four colors: Red, Green, Black, and Yellow.

VM mechanical button control valve 3 way General parameters

	VM100	VM200
working medium	Air/ inert gas	Air/ inert gas
Action	External Control Direct Action	External Control Direct Action
Port diameter	Side:G1/8 bottom:M5X0.8	PT1/4
number of positions	2 position3 way	2 position3 way
lubricating	unnecessary	unnecessary
Working pressure range MPa(psi)	-0.1∼1.0	-0.1∼1.0
Working temperature °C	-5∼60	-5∼60
Body material	aluminum alloy	aluminum alloy
Effective cross-sectional area（CV)	2.5 mm²（0.14）	19 mm²（1.0）
