VM132 VM133 Mechanical Valve 3way bottom ported

Model:VM132 VM133

OLK is one of the professional bottom ported VM132 VM133 mechanical valve manufacturers and suppliers in China. Our products are CE certified and have in stock of factory, welcome to wholesale VM132,VM133 mechanical valve from us.

Send Inquiry

Product Description

Ouleikai (OLK) VM132,VM133series 3/2 way pneumatic mechanical valve 3 way bottom ported.SMC type push button control valve. Buttom portedPiping direction and the long/short plunger.M5 thread

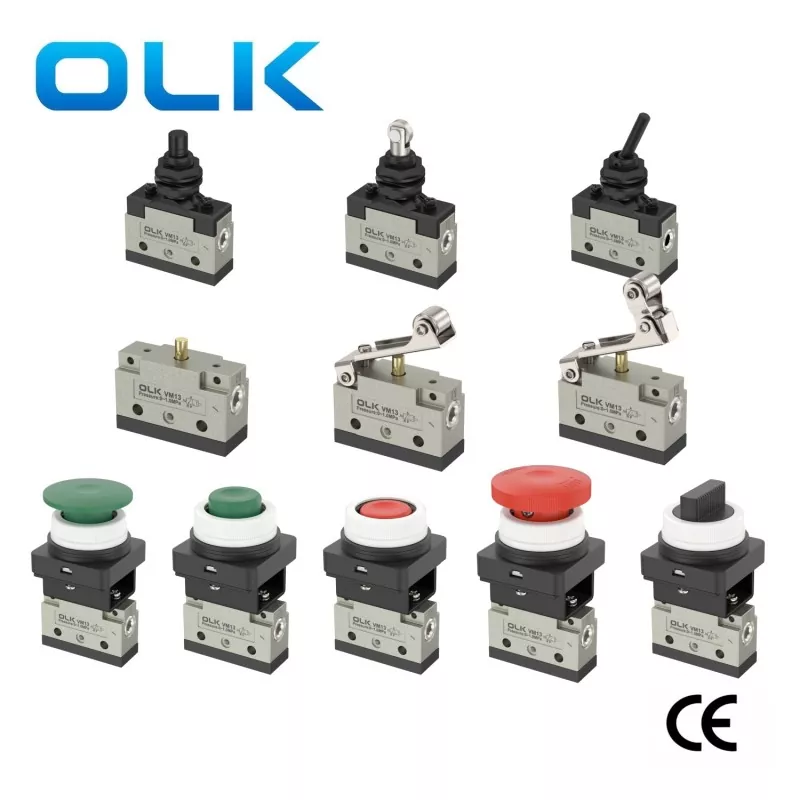

The button types VM132 VM133 Mechanical Valve 3way bottom ported are as follows:

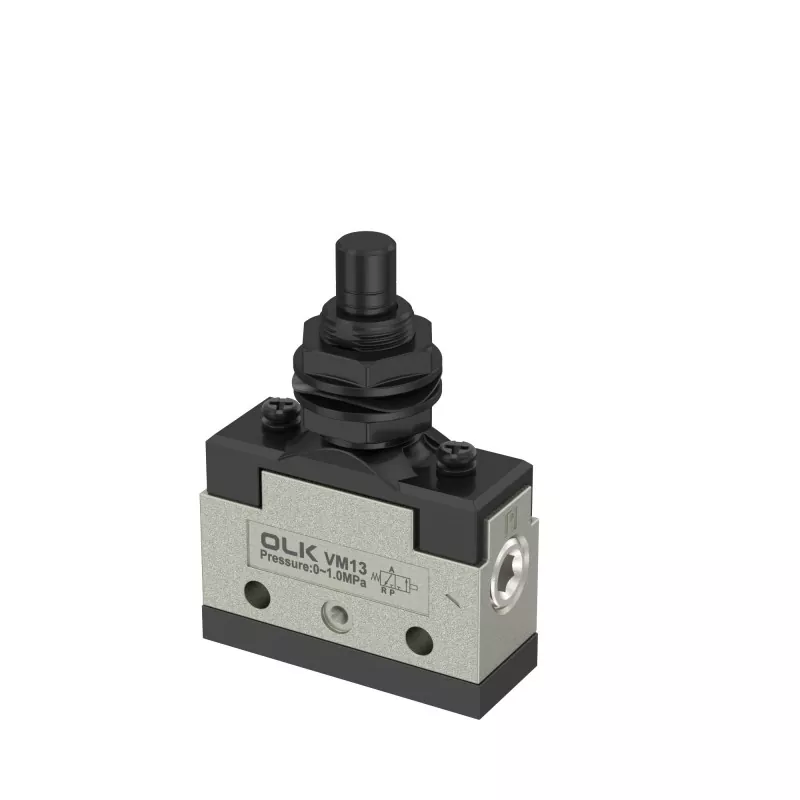

- Push Rod Type (VM132-M5-05)

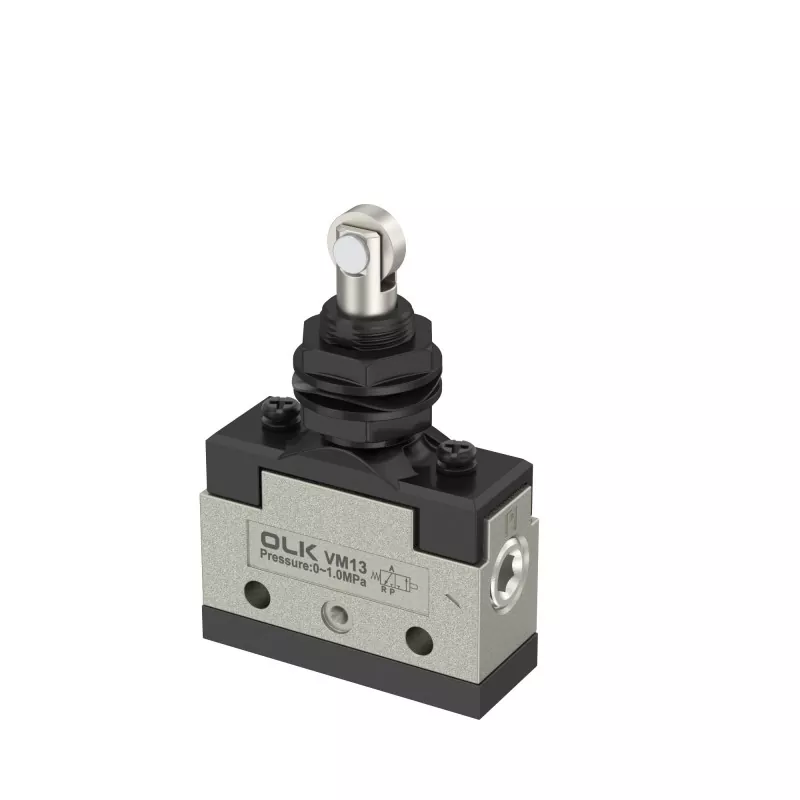

- Impact Type (VM132-M5-06)

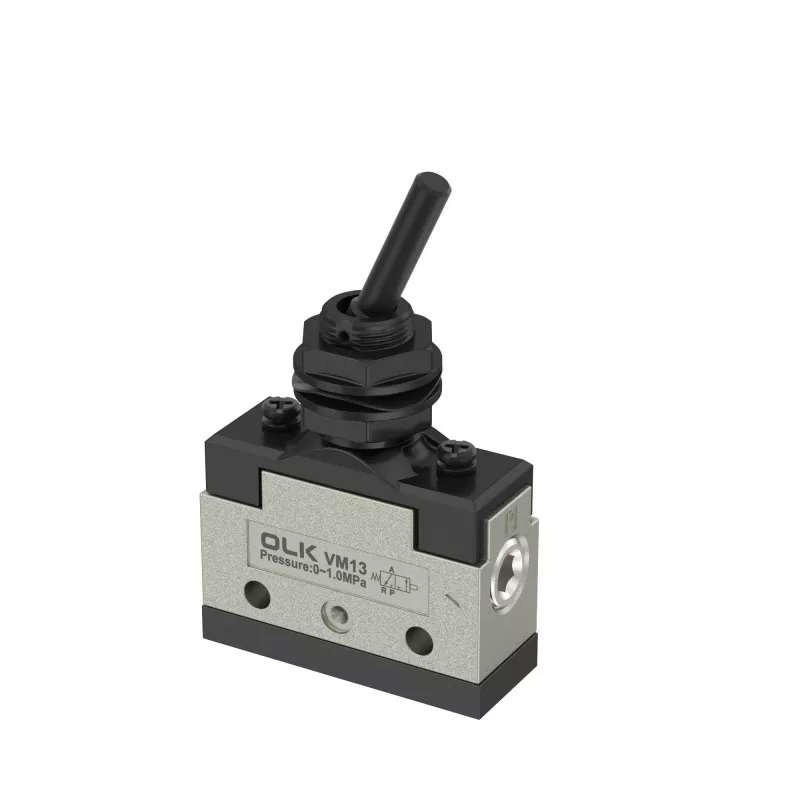

- Rocker Arm Type (VM132-M5-08)

- Basic (VM133-M5-001)

- Roller (VM133-M5-01)

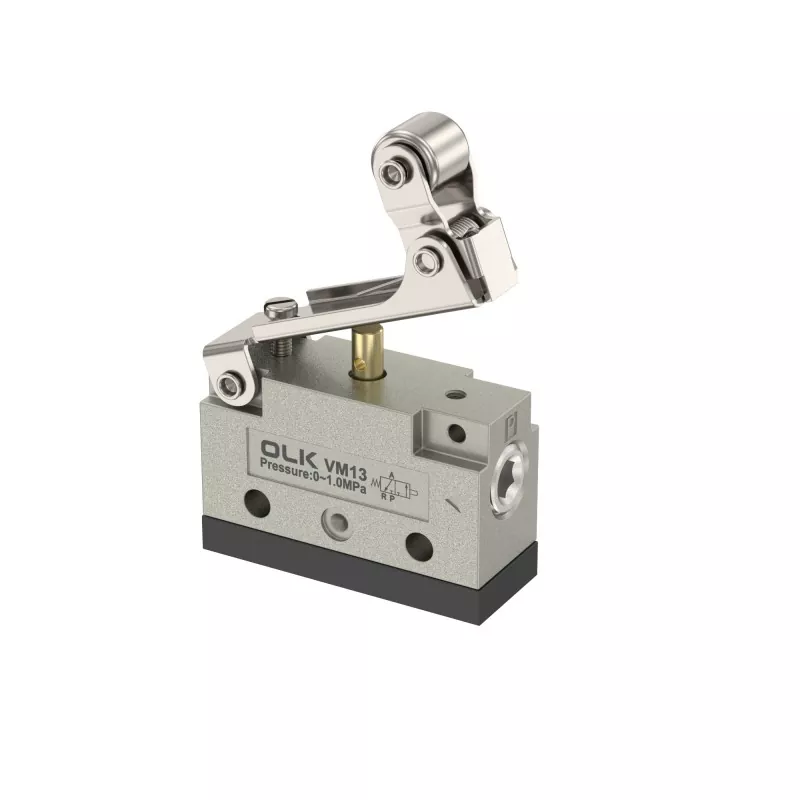

- Single-direction Roller (VM133-M5-02)

- Mushroom Button (VM132-M5-30)

- Extended Head Button (VM132-M5-32)

- Flat Head Button (VM132-M5-33)

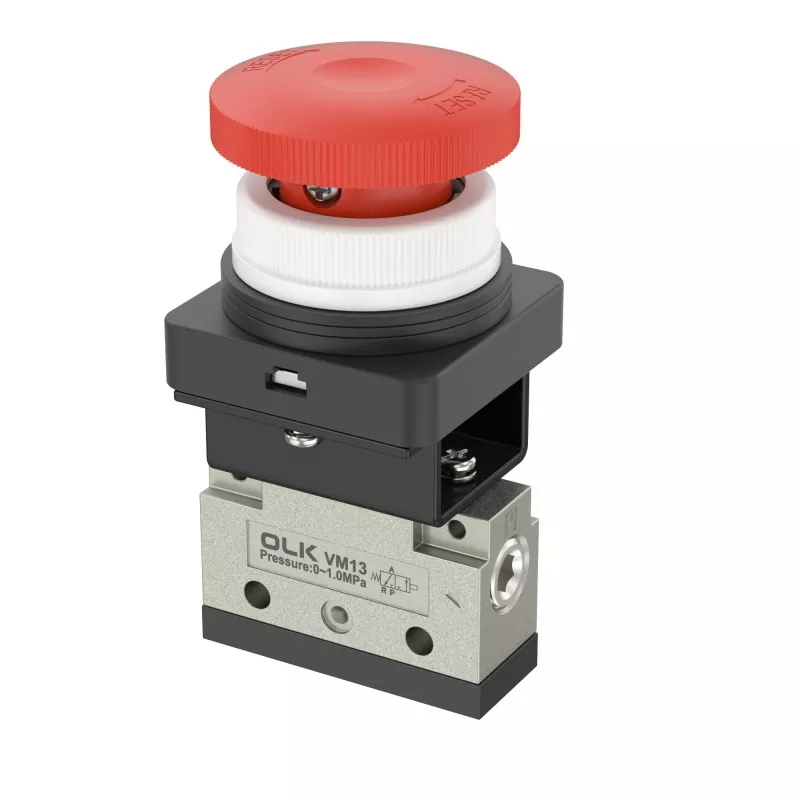

- Emergency Stop Button (VM132-M5-37)

- Knob (VM132-M5-34)

The buttons VM132 VM133 Mechanical Valve 3way bottom ported are available in four colors: Red, Green, Black, and Yellow.

Ordering code
VM1	3	1	_	01	_	01	_	S	_
MODEL:VM1 series	Number of ports	Piping direction and the height of plunger		Port size:		Actuator type		Suffix for actuator		Suffix for indicator
	2:2port	0:side ported/long		01:PT1/8		00:Basic		S:Hard steel roller		Z:with miniature indicator
	3:3port	1:side ported /short				01:Roller lever		R:red push button
		2:bottom ported/long				02:One way roller lever		B:Black push button
		3:bottom ported/short				05:Straight plunger		G:Green push button
						06:Roller plunger		Y:Yellow push button
						07:Cross roller plunger
						08:Toggle lever
						30:Push button (Mushroom)
						32:Push button (Extended)
						33:Push button (Flush)
						34:Twist selector (2 position)
						37:Key selector （EMERGENCY STOP）

VM132/133 mechanical button control valve 3 way General parameters

	VM100	VM200
working medium	Air/ inert gas	Air/ inert gas
Action	External Control Direct Action	External Control Direct Action
Port diameter	Side:G1/8 bottom:M5X0.8	PT1/4
number of positions	2 position3 way	2 position3 way
lubricating	unnecessary	unnecessary
Working pressure range MPa(psi)	-0.1∼1.0	-0.1∼1.0
Working temperature °C	-5∼60	-5∼60
Body material	aluminum alloy	aluminum alloy
Effective cross-sectional area（CV)	2.5 mm²（0.14）	19 mm²（1.0）
