SMC Type Mechanical Button Valves 3 Way Side ported

Model:VM230

As the professional manufacture, OLK would like to provide you VM230 mechanical valve. And Ouleikai (OLK) will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

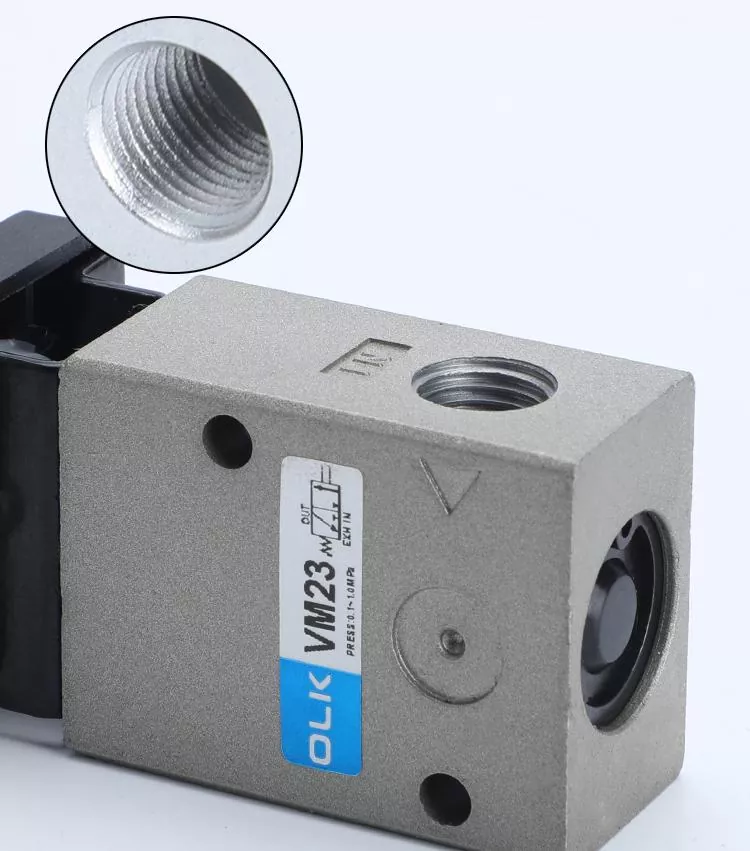

Ouleikai (OLK) VM230 series SMC-type mechanical button valves are available in two functional types :2-position 3-way. The VM230 series air inlet and outlet ports come in bottom ported. The thread sizes for the ports RC1/4.

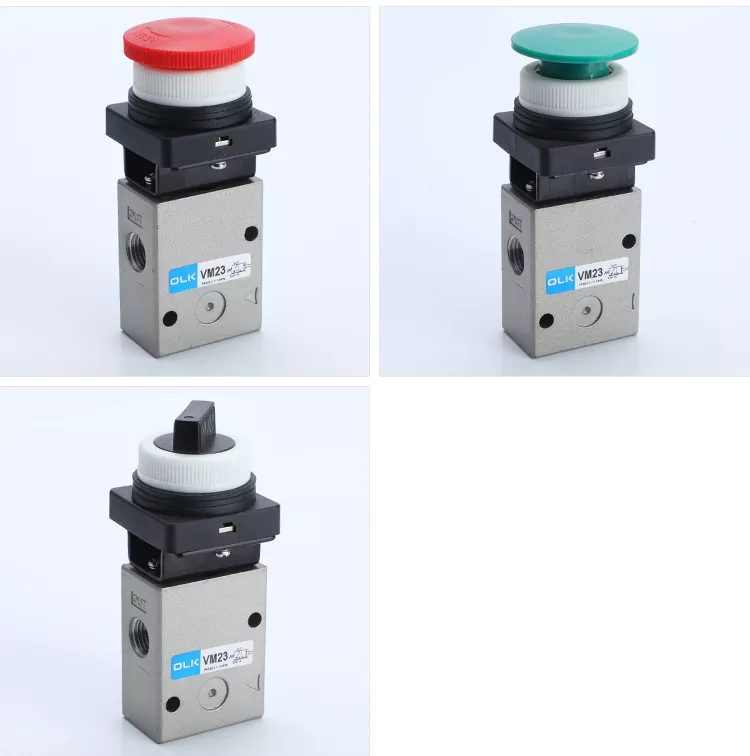

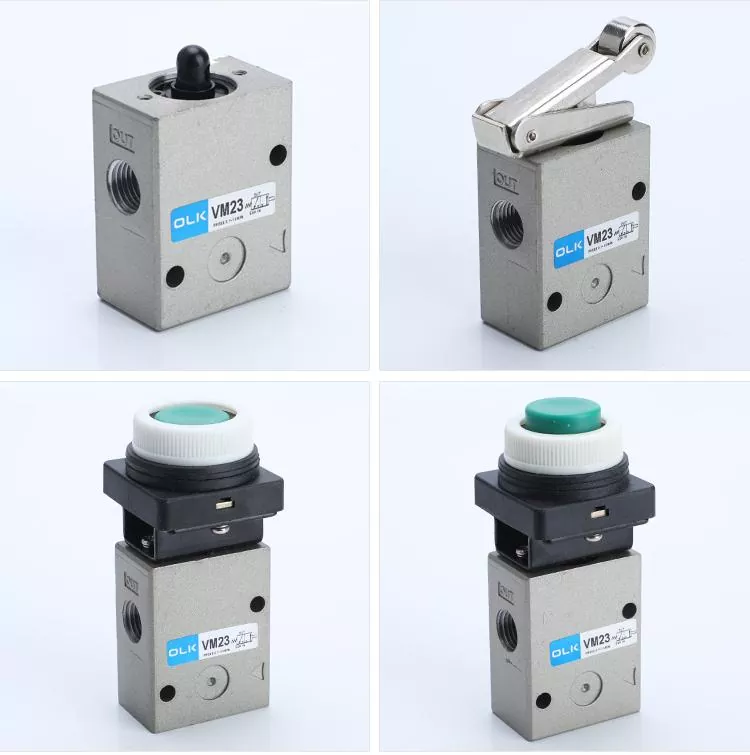

The button types are as follows:

- Basic (VM230-02-00)

- Roller (VM230-02-01)

- Mushroom Button (VM230-02-30)

- Extended Head Button (VM230-02-32)

- Flat Head Button (VM230-02-33)

- Emergency Stop Button (VM230-02-37)

- Knob (VM230-02-34)

Symbol:

The buttons are available in four colors: Red, Green, Black, and Yellow.

Ordering code
VM2	3	0	_	02	_	01	_	S
MODEL:VM2 series	Number of ports	Piping direction and the height of plunger		Port size:		Actuator type		Suffix for actuator
	2:2port	0:side ported/long		02:PT1/4		00:Basic		S:Hard steel roller
	3:3port	1:side ported /short				01:Roller lever		R:red push button
		2:bottom ported/long				30:Push button (Mushroom)		B:Black push button
		3:bottom ported/short				32:Push button (Extended)		G:Green push button
						33:Push button (Flush)		Y:Yellow push button
						34:Twist selector (2 position)
						37:Key selector （EMERGENCY STOP）

VM230 series mechanical button control valve 3 way General parameters

	VM100	VM200
working medium	Air/ inert gas	Air/ inert gas
Action	External Control Direct Action	External Control Direct Action
Port diameter	Side:G1/8 bottom:M5X0.8	PT1/4
number of positions	2 position3 way	2 position3 way
lubricating	unnecessary	unnecessary
Working pressure range MPa(psi)	-0.1∼1.0	-0.1∼1.0
Working temperature °C	-5∼60	-5∼60
Body material	aluminum alloy	aluminum alloy
Effective cross-sectional area（CV)	2.5 mm²（0.14）	19 mm²（1.0）
